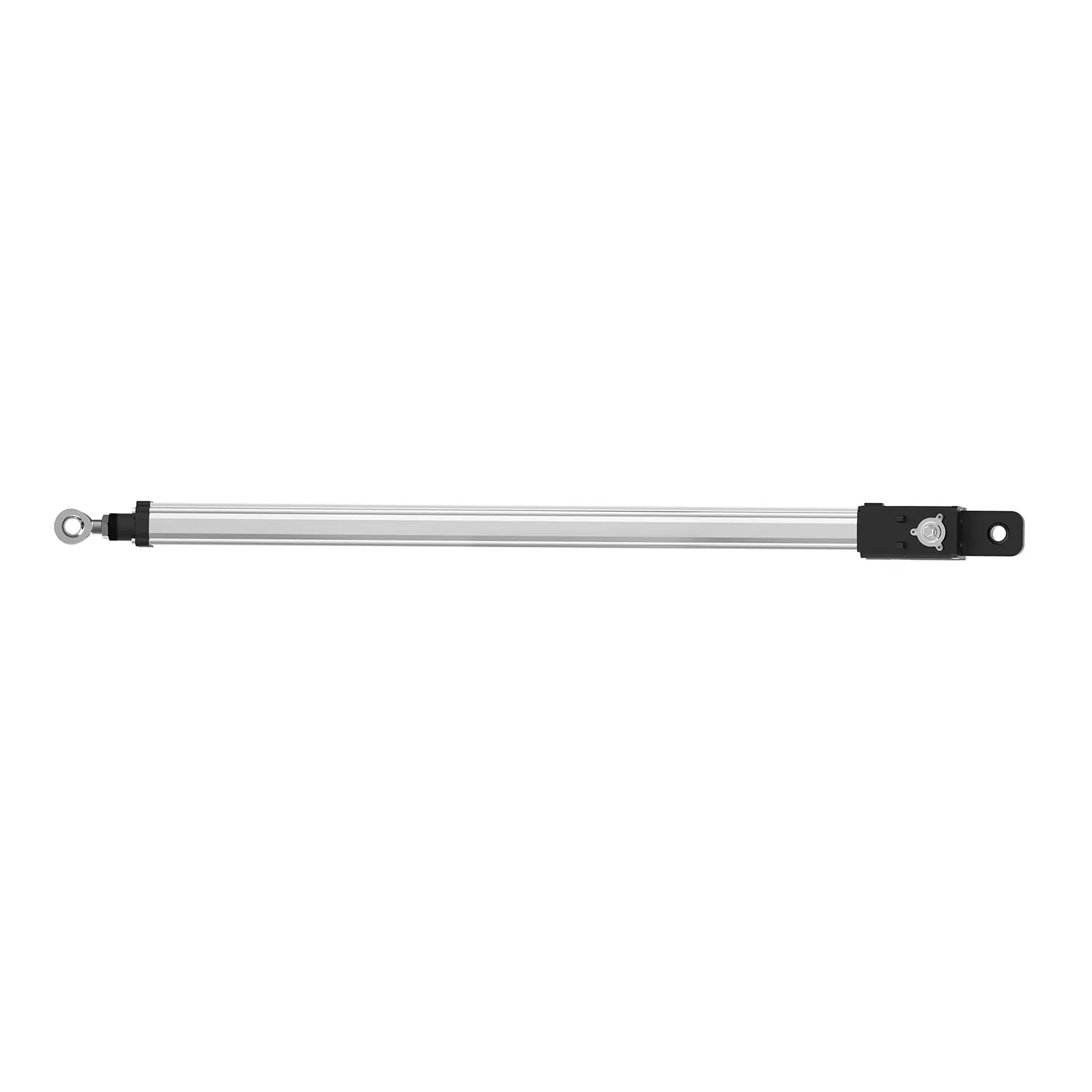

Passive Drive High Thrust Solar Tracker for 2p Solar Racking System

Customization: Available
Certification: CE, UL
IP Rating: IP66

Product Description

📋 Basic Info.
Model NO. PA15 Limit Switch Without
Max Thrust 46000n Standard Stroke 150mm-1200mm
Input 24V DC No-Load Speed 3.175mm/r
Warranty 2 Years Working Temp. -40ºC~+60ºC
🚀 Product Description

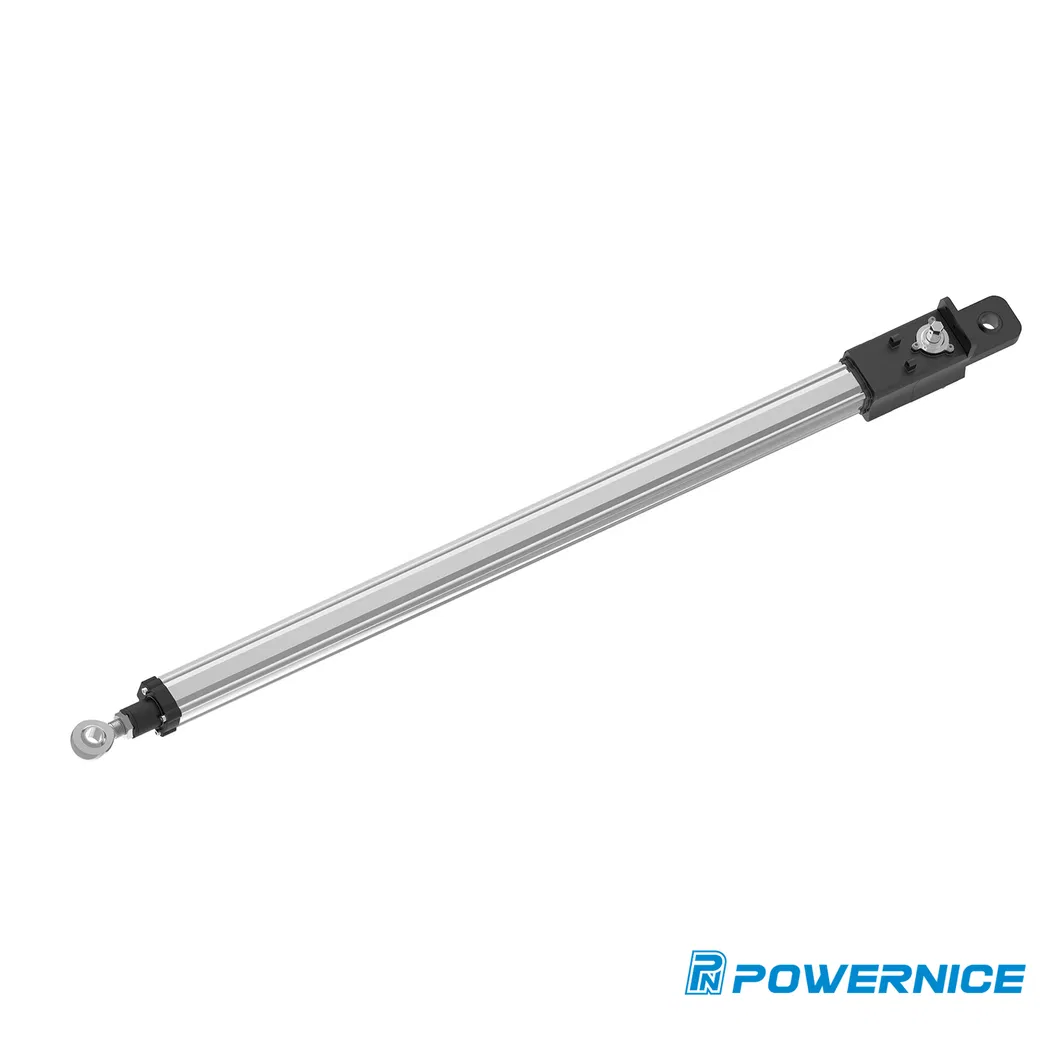

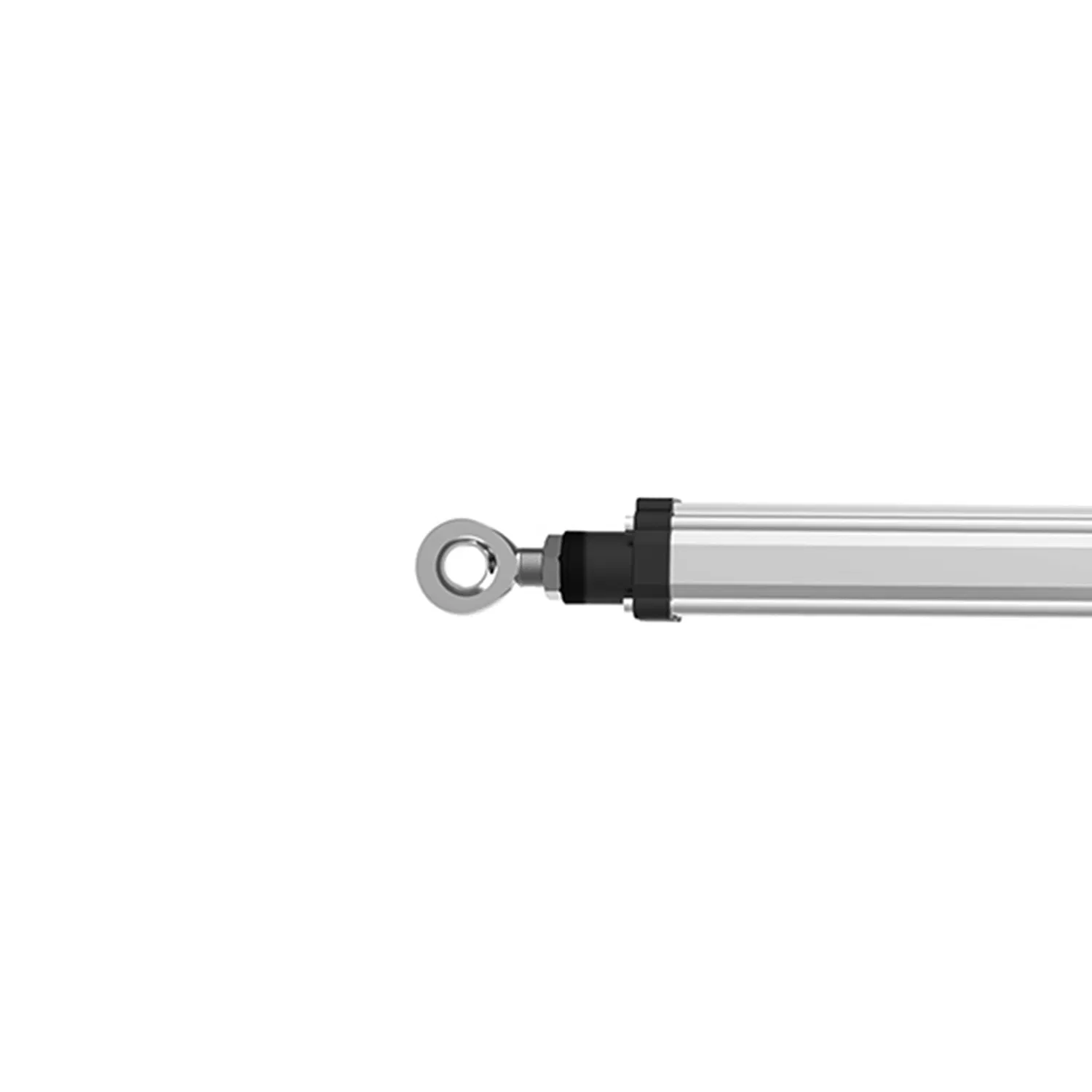

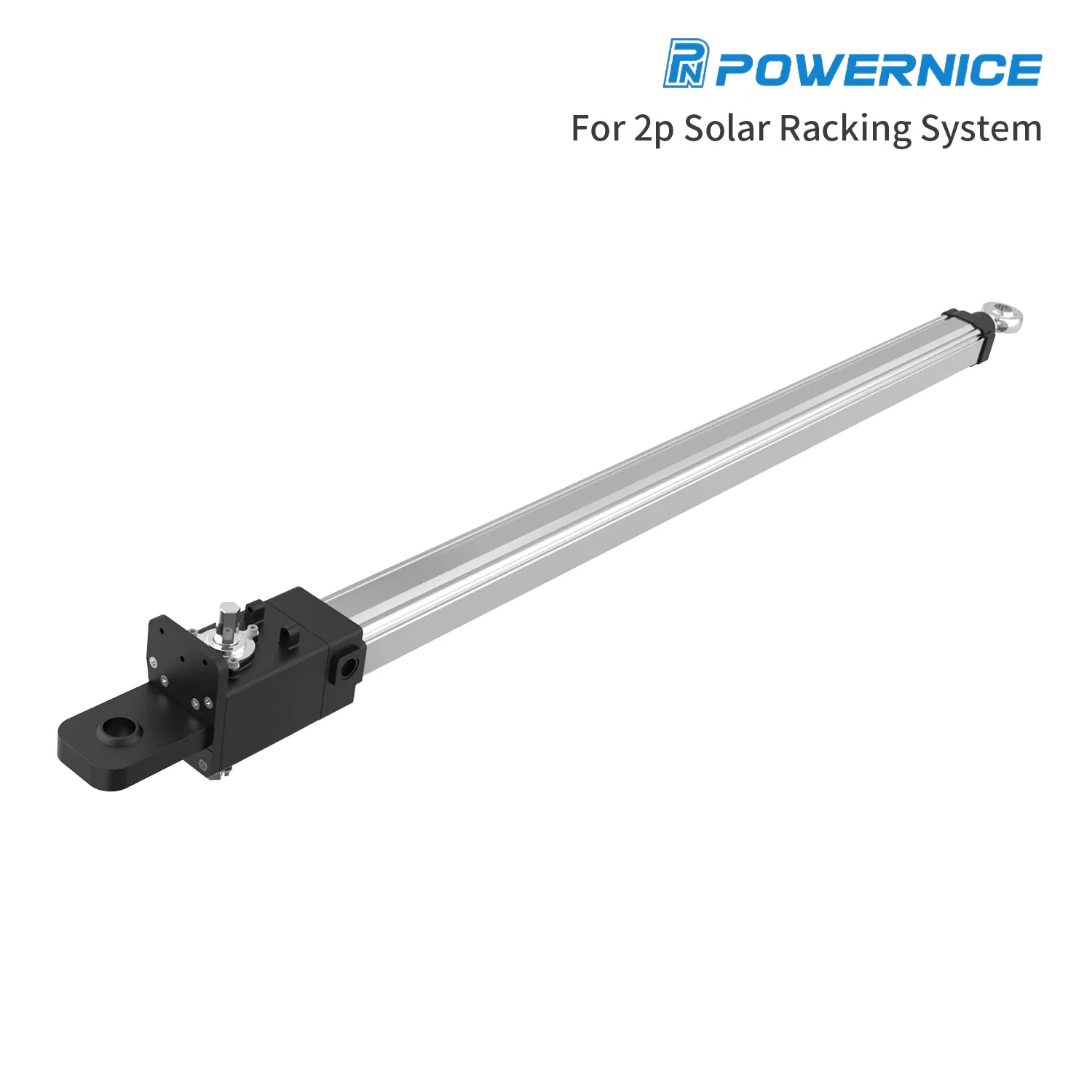

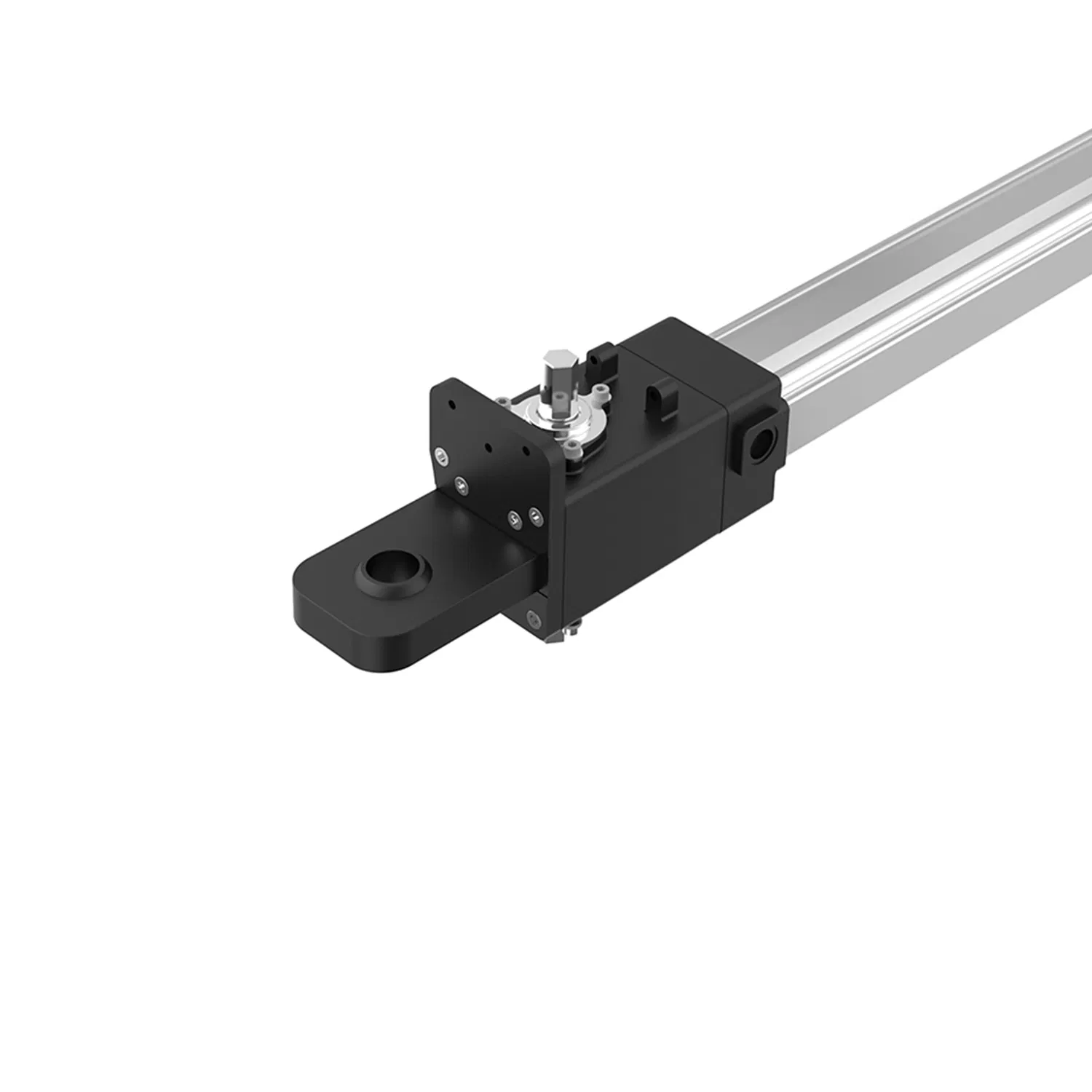

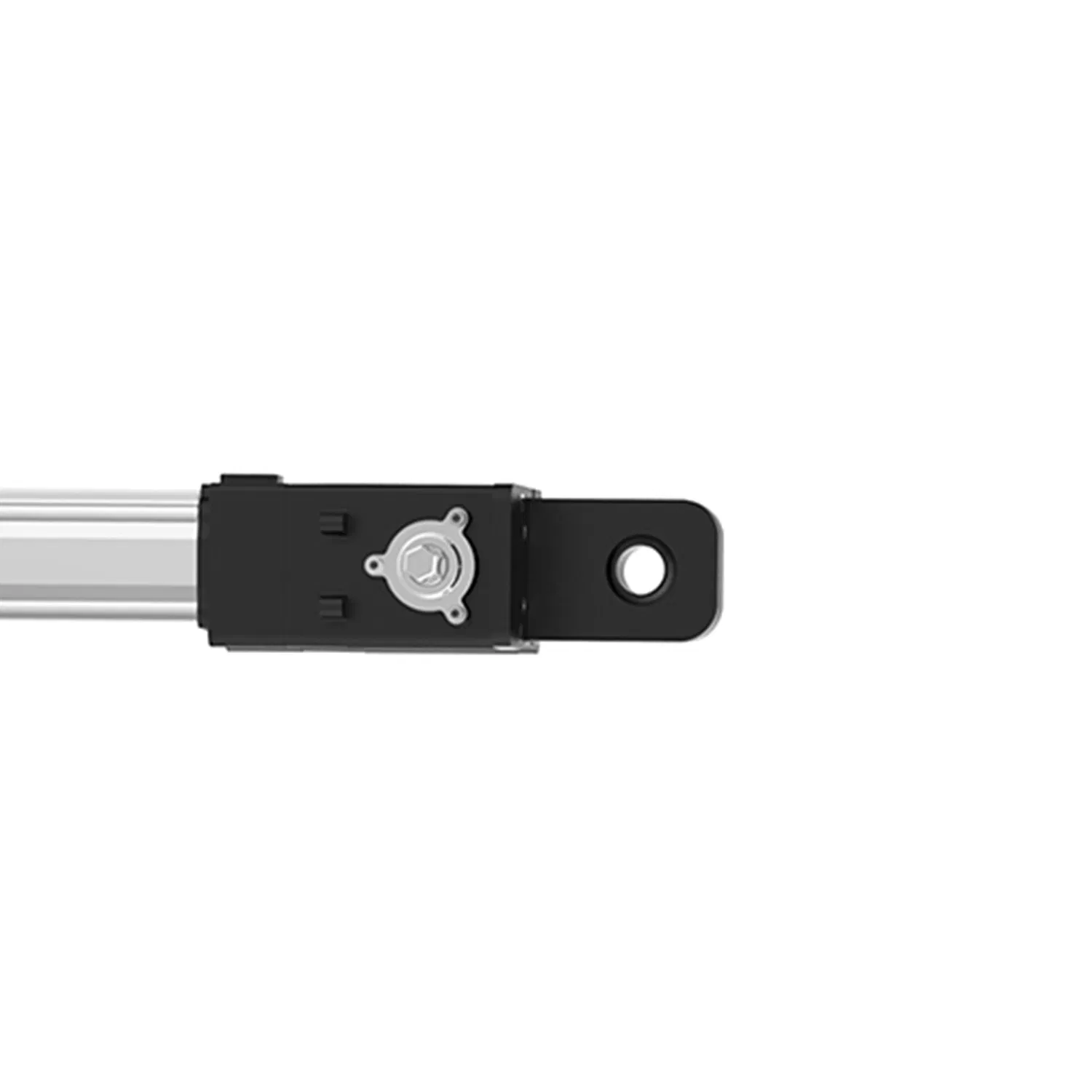

Solar Linear Tracker PA15
Solar Linear Tracker PA15:
PA15 is widely applied to the one-in-portrait and two-in-portrait solar tracking systems and is able to realize the multipoint mechanical linkage drive methods.
  • 46000N Maximum Thrust supports regular solar tracking systems.
  • Brushed motor complies with protection class IP66.
  • Long service life up to 25 years.
  • Low noise, low cost, and low maintenance.

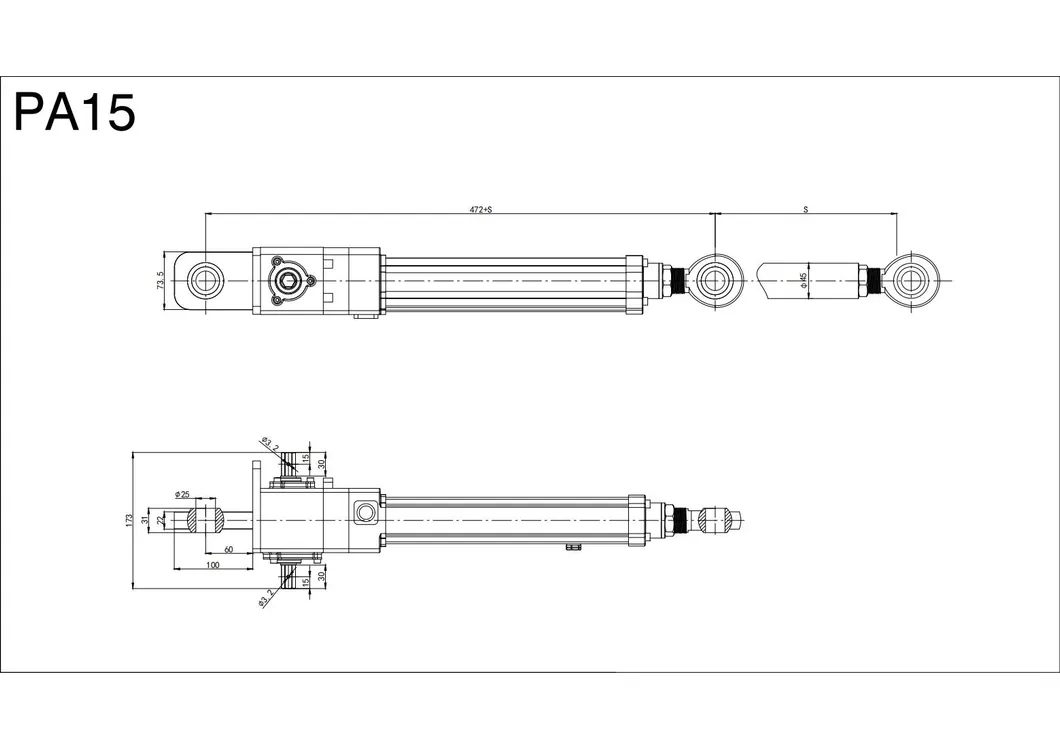

💐 Dimension Drawing
Dimension Drawing
Technical Parameters
Specified Load(N) 20800
Max Load(N) 46000
Corrosion Category C3-15 Years (ISO12944-2)
Noise Level(dBA) 85
Stroke(mm) 100~1200 (Customizable)
Installation Distance ≥472+Stroke (Customizable)

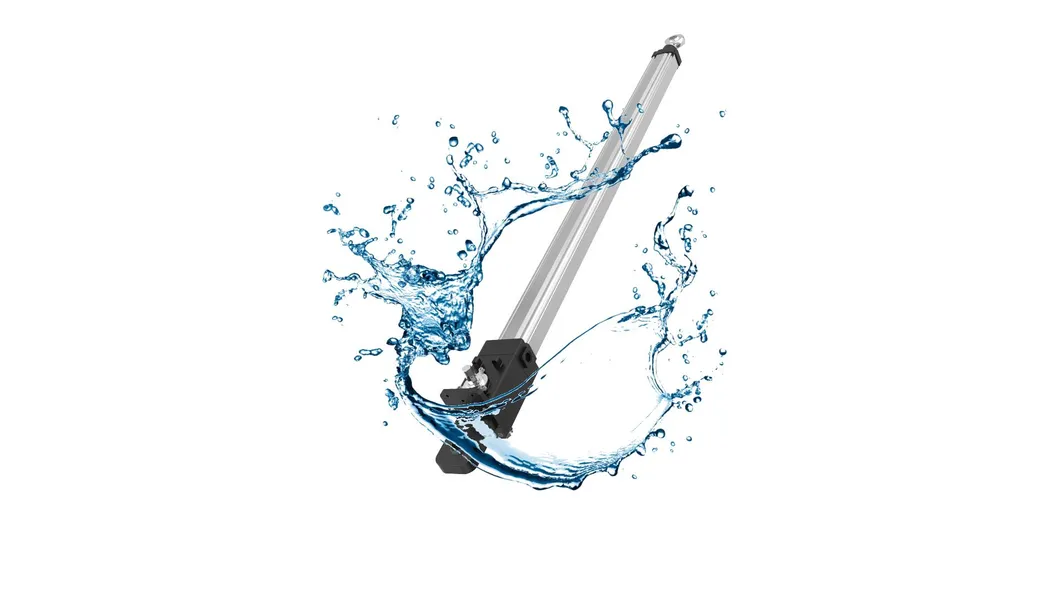

Tech detail 1
Tech detail 2
🌍 Application Scenarios

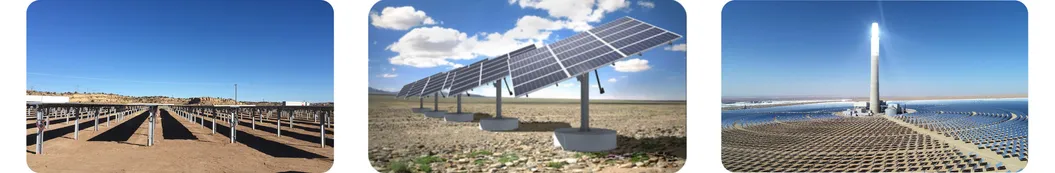

Tracking Systems
Single-axis Tracking System | Dual-axis Tracking System | CSP Tracking System

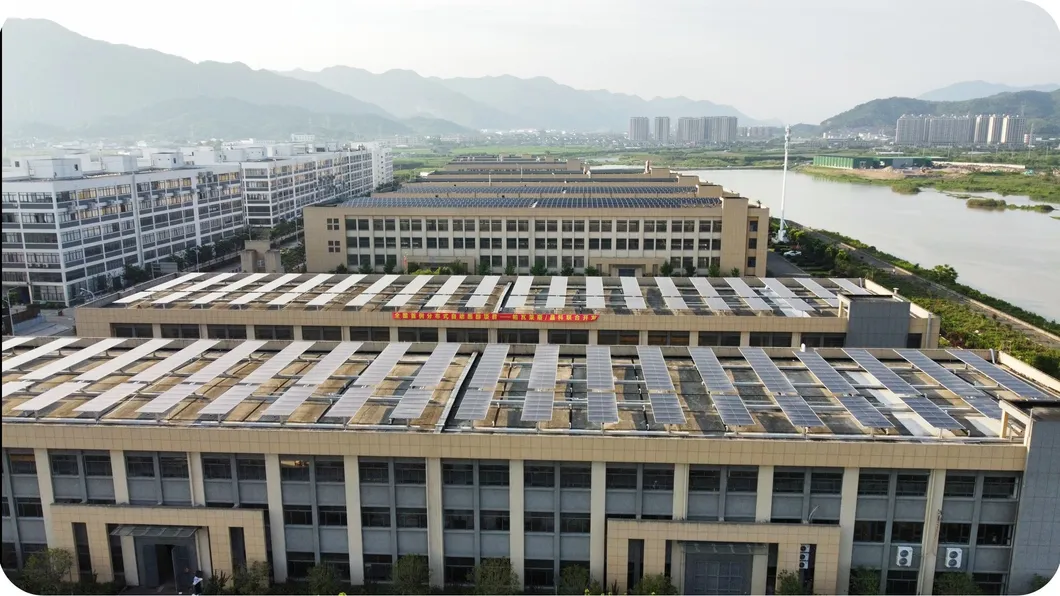

Distributed photovoltaic system
Linear tracking technology in distributed photovoltaic systems can increase maximum power generation efficiency by more than 30%, bringing considerable benefits to owners.
🏭 Production & Quality Control
Our enterprise is a high-tech entity integrating R&D, design, production, sales, and service. Industrial-grade high-precision electric actuators are used extensively in solar, industrial, and medical industries.

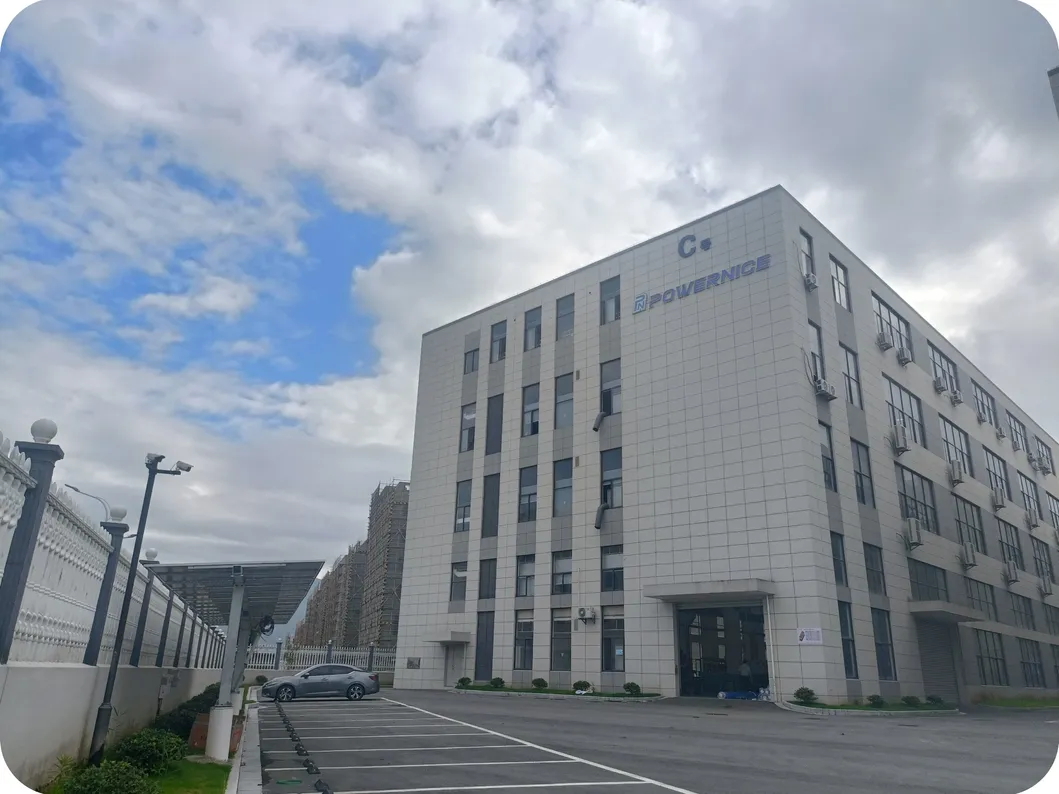

Production Facility

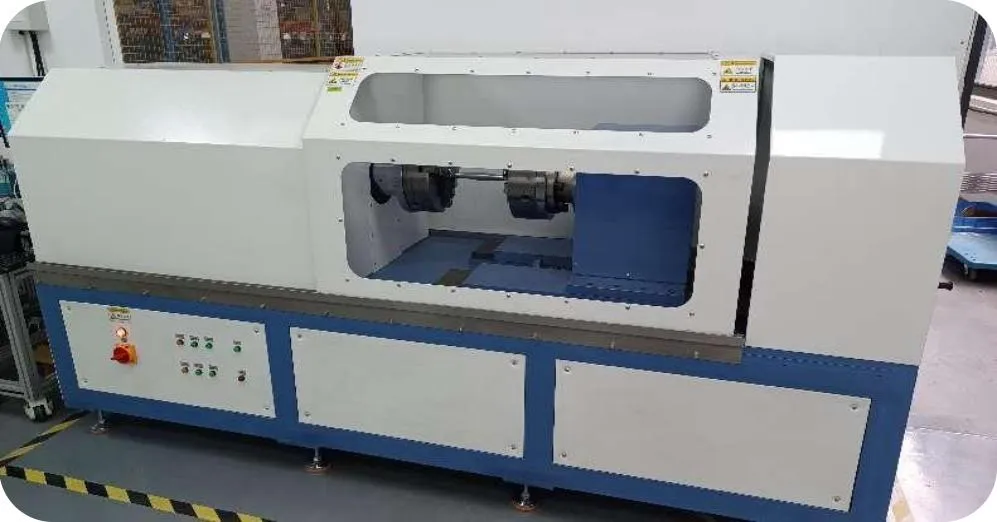

R&D center

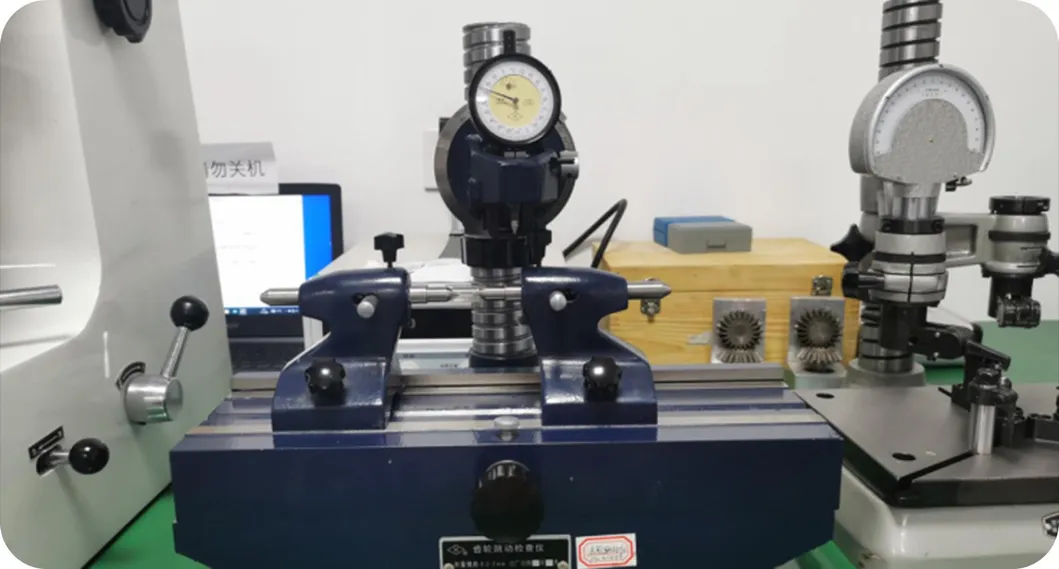

Quality Test
We focus on product quality with 16 inspection processes to ensure that each electric actuator is impeccable before leaving the factory. Global installed capacity of the photovoltaic series has exceeded 6GW.

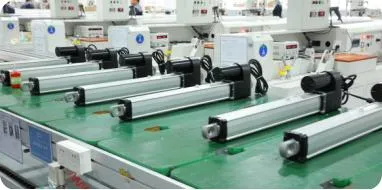

Exhibition 1

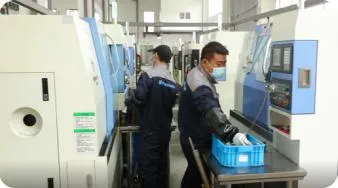

Exhibition 2

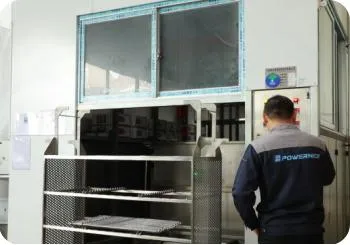

Exhibition 3
Frequently Asked Questions
Q: What is the lead time for orders?
A: Common samples usually take about 7-10 days. For bulk orders, it may require 35-40 days to prepare the first batch.
Q: Can products be customized with our logo?
A: Yes, we are professional OEM/ODM suppliers. Written authorization for your brand is required.
Q: How is the product quality ensured?
A: Each product is tested before dispatch. We provide photos of the goods and packing methods for confirmation.
Q: What payment methods do you accept?
A: We usually accept T/T, West Union, and other standard payment methods confirmed during order conclusion.
Q: Do you have relevant certifications?
A: Yes, we have obtained CE, TUV, UL, PSE, KC, SAA, ROSH, ISO9001:2015, and ISO14001:2015 certifications.
Q: Can you provide samples before a bulk order?
A: Of course, we can provide samples for your evaluation before proceeding with large-scale production.
