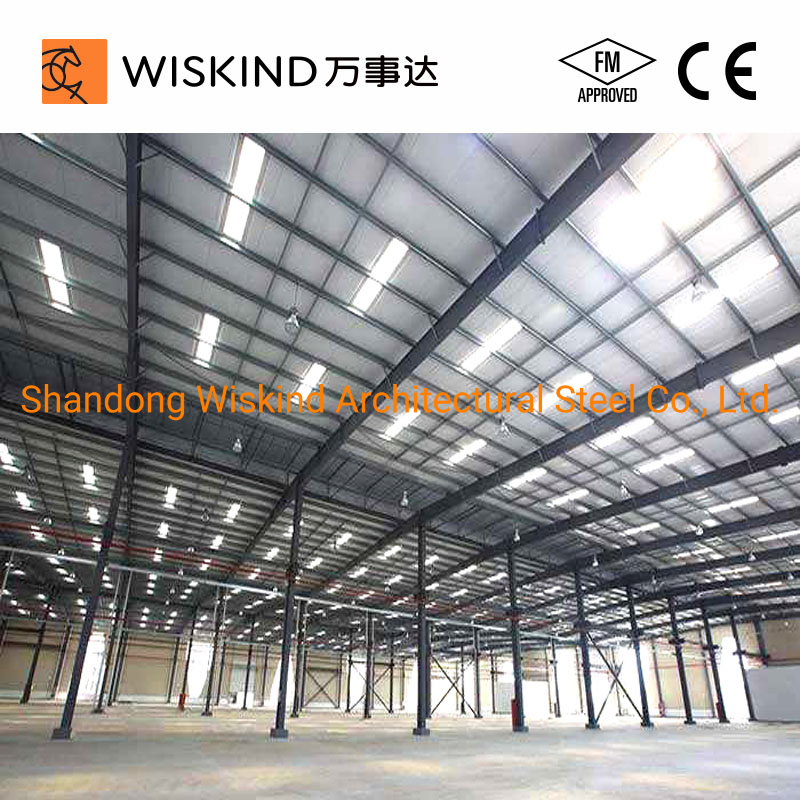

Practical Senior Colord Q345b Prefabricated Safety Steel Storage Warehouse

Customization: Available
Connection Form: Bolt Connection
Dimensions: According to The Need of Design

Product Description

Basic Information

Model NO.WSD-ZT-600
Loading20 Gp, 40HP, 40 Gp, 40 Ot
Connection TypeBolted Connection
TechnologyWelded Steel, Hot Rolled Steel
UseSteel Construction Building
AdvantageEasy Install

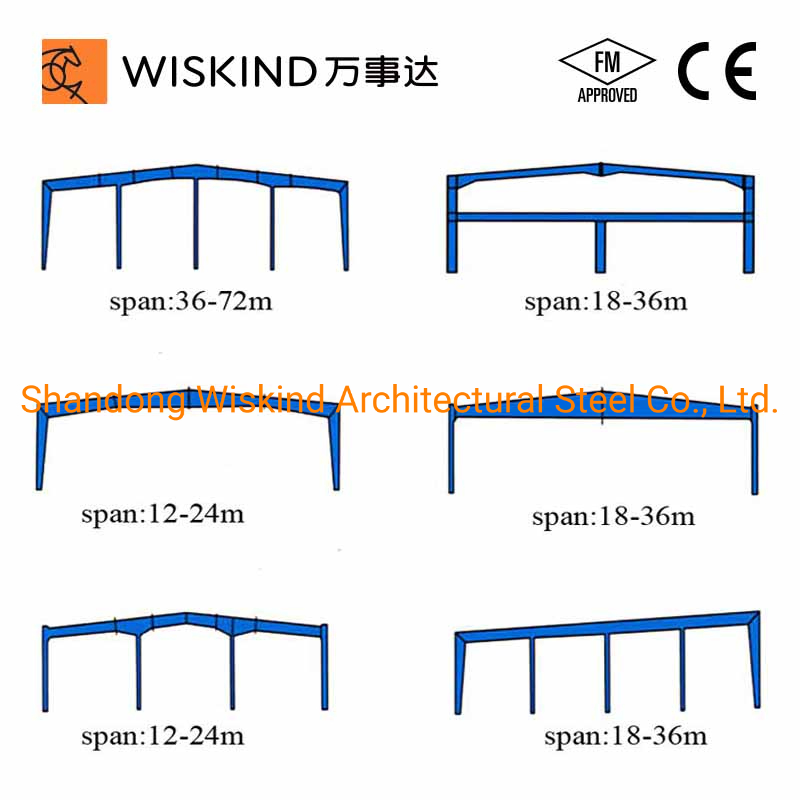

Span10 to 120m
Surface TreatmentPainted or Hot-DIP Galvanized
StandardGB, ASTM, JIS, AISI, BS
Production Capacity3000tons/Month

Product Description

Prefabricated steel structure for Hangar/ Storage/ workshop/ warehouse/fabrication metal construction/ building materials.

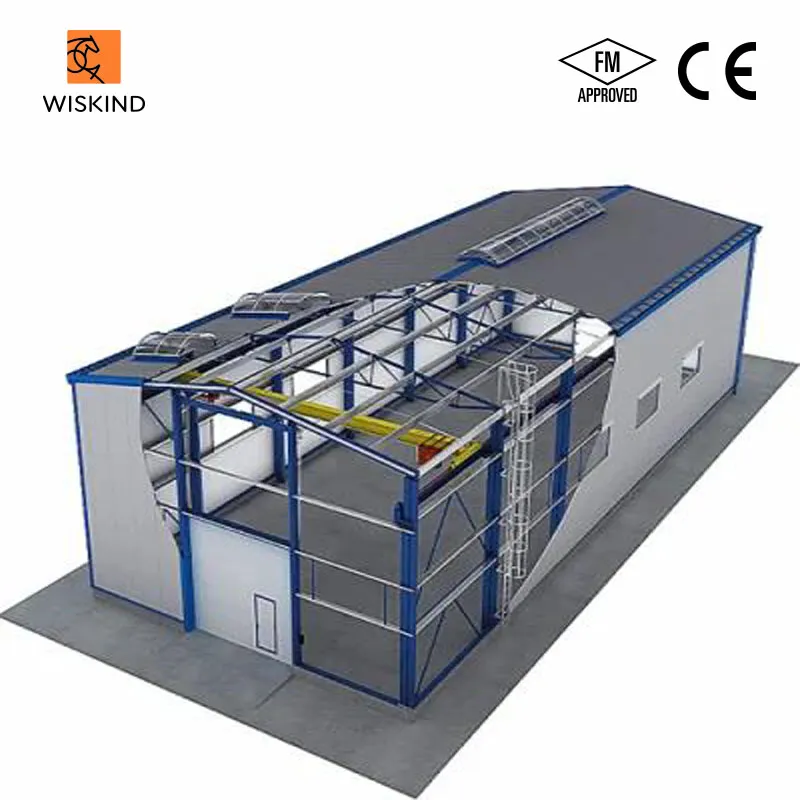

Prefabricated Safety Steel Storage Warehouse
Prefabricated Safety Steel Storage Warehouse

Product Parameters

Main structureWelded H Section or Hot rolled H section steel, Q235, Q345
PurlinC Section or Z Section, Q235
Roof/Wall CladdingCorrugated sheets, PU, EPS, Rock Wool, Fiber Glass sandwich panel
Tie barQ235-Q3555B Round Steel Tube
BraceQ235-Q3555B angle steel, round bar or steel pipe
DoorSliding Sandwich Panel Door or Metal rolling door
WindowsPVC/Plastic Steel/Aluminum Alloy Window
ConnectingHigh Strengthen Bolts, Normal bolts with nuts

Key Advantages

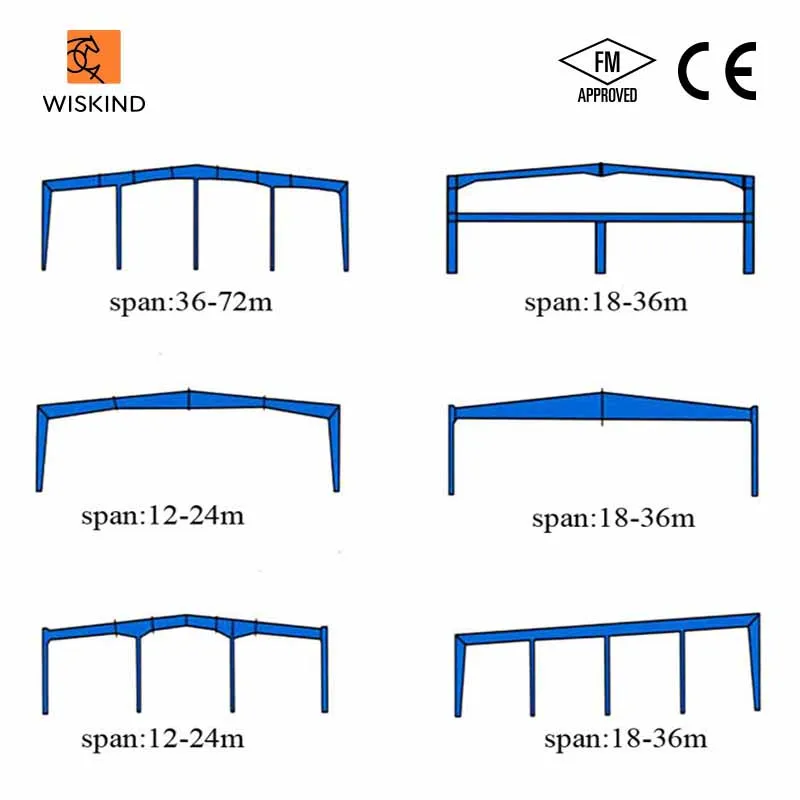

Wide span: Single or multiple spans, max span over 70m without middle column.
Low cost: Unit price range from USD45/sqm to USD80/sqm.
Fast construction and easy installation.
Long service life: Up to 50 years.
Environmental protection, earthquake proofing, and water proofing.

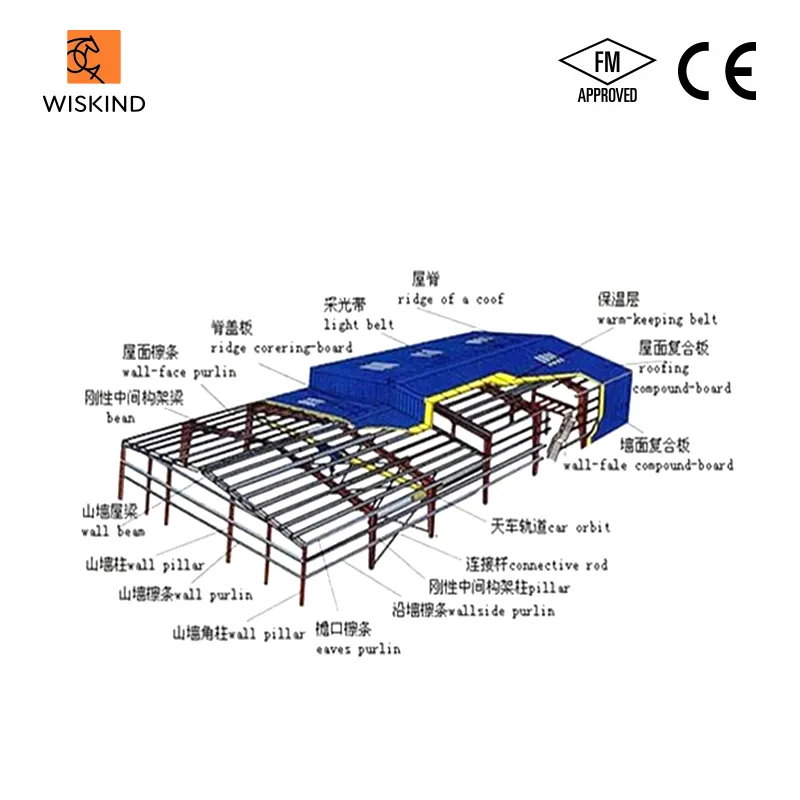

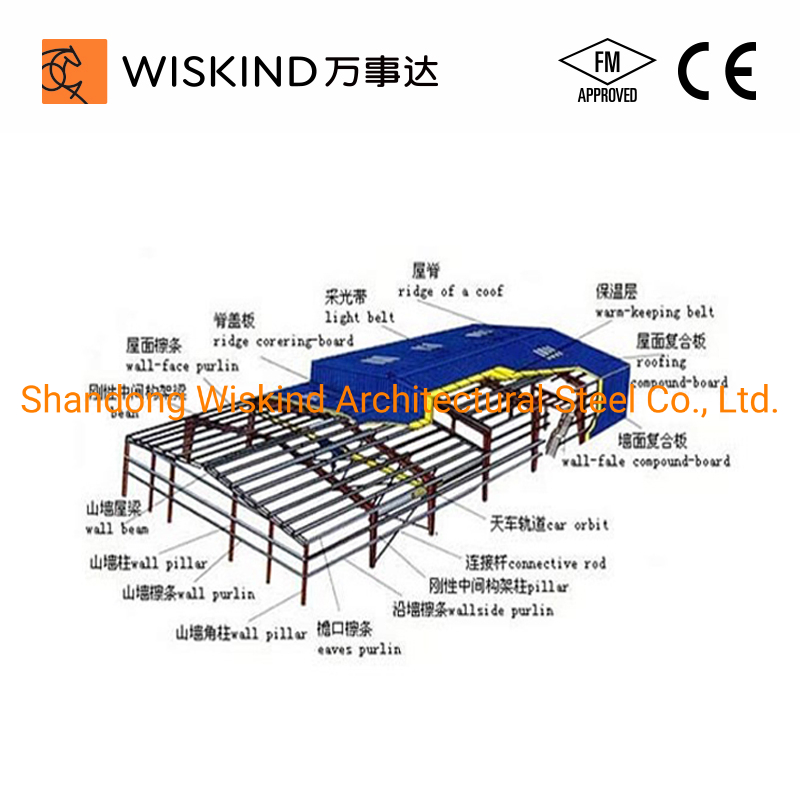

Roof and Wall System

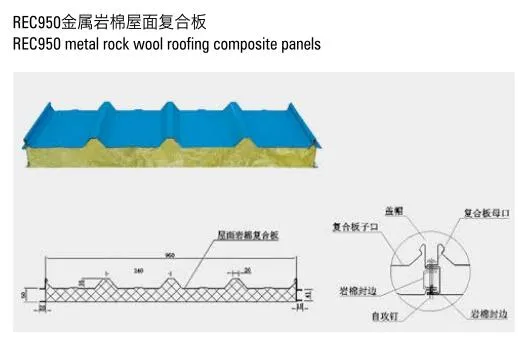

System Detail 1

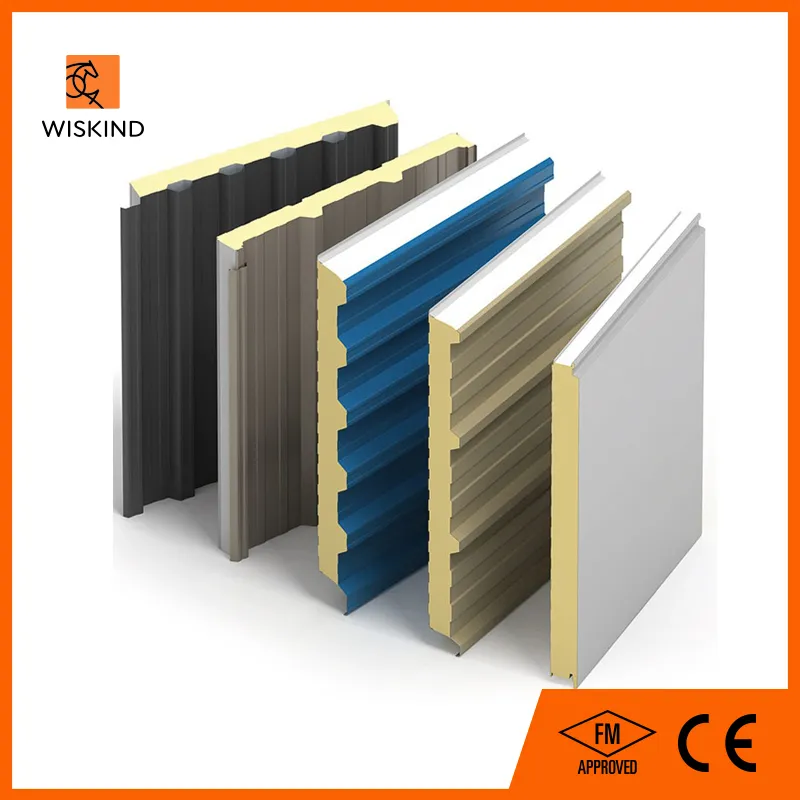

System Detail 2

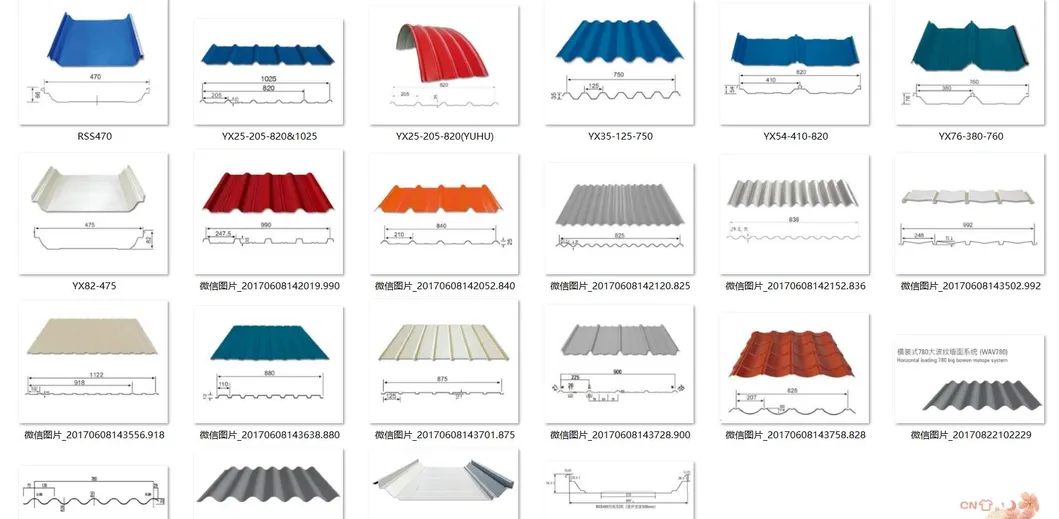

System Detail 3

Professional Capabilities

With more than 40 years of history, our team has vast experience in the design, production, transportation, and installation of steel building systems. We are committed to providing the most reasonable and economical solutions. The production management has obtained ISO9001 certification, and roofing system products have obtained FM certification.

Over the past 42 years, our products have been exported to more than 50 countries and regions, earning high praise for quality and professional service.

Production Facility

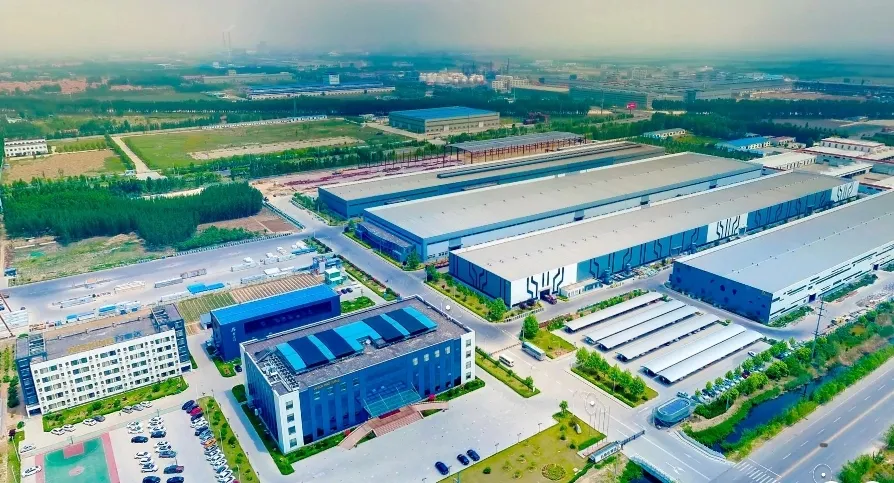

Facility Overview

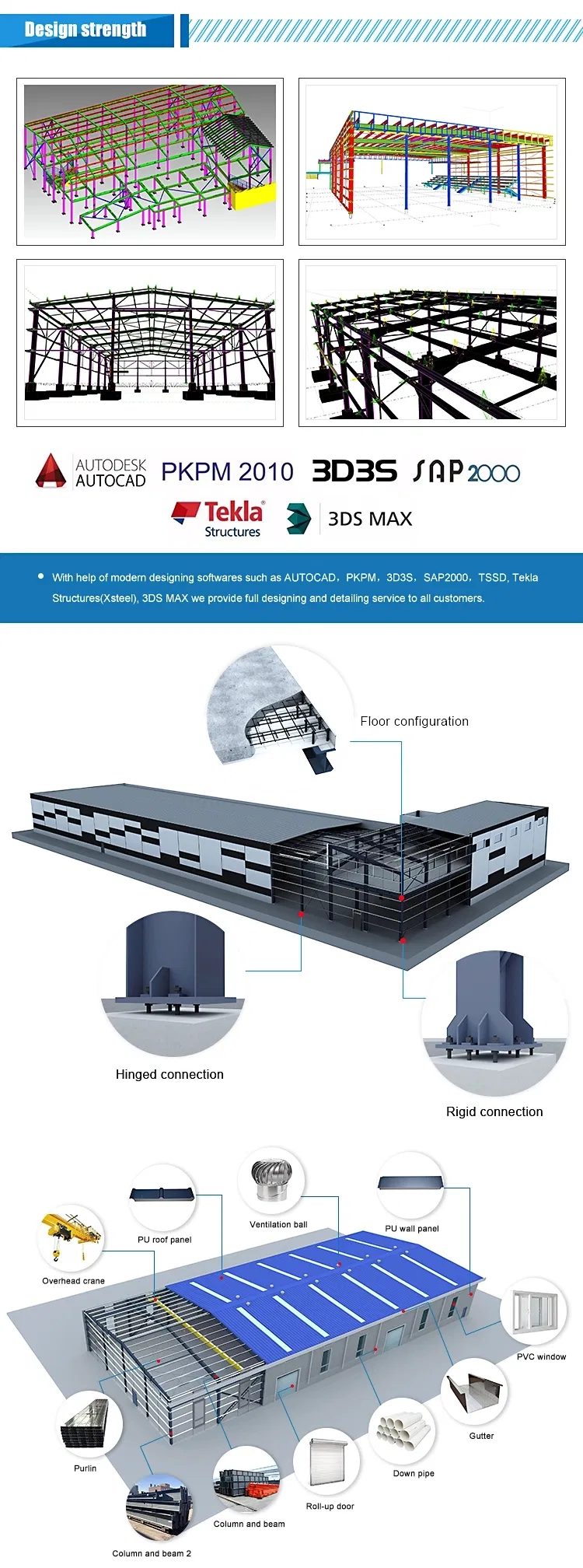

Our Advantages

Packaging & Shipping

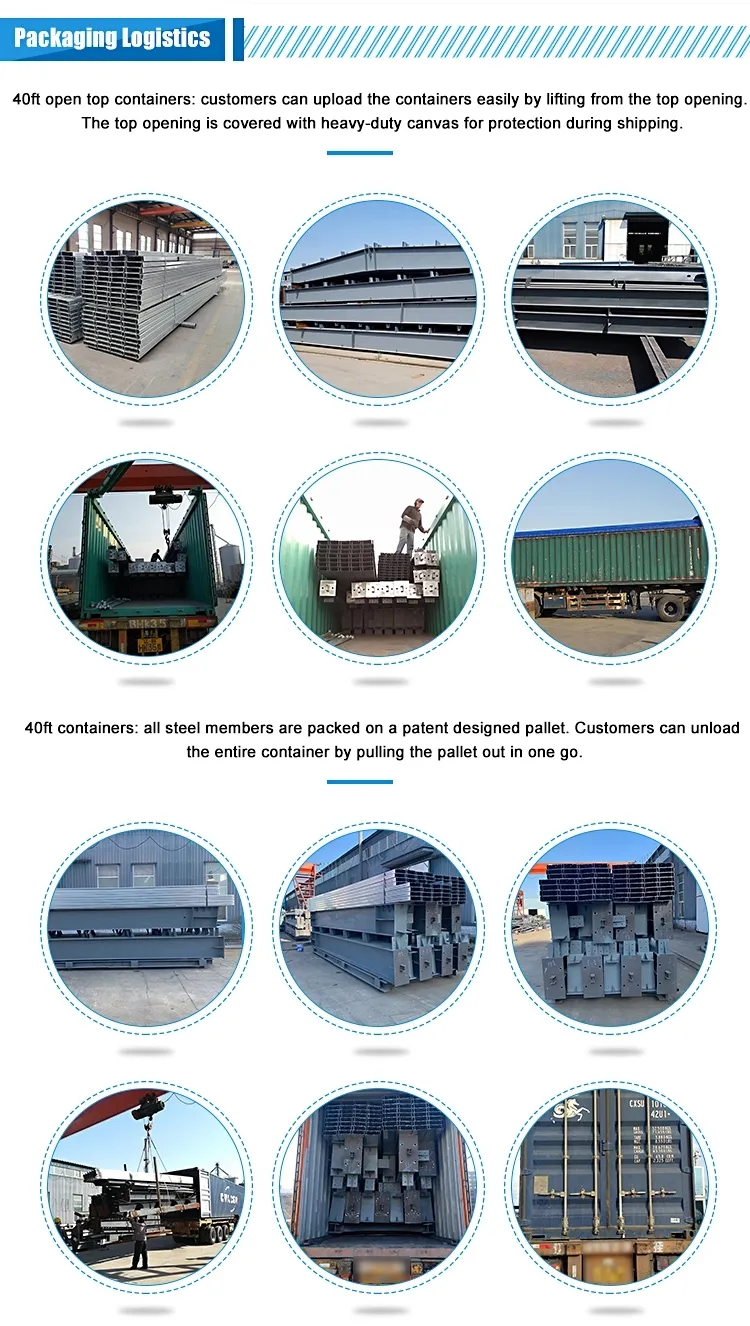

Packaging Process
Main frame steel components packed with secondary parts by channel tray and belt.
Purlins packed into bundles using steel strips.
Small parts protected by bags and EPS foam.
Hardware sets packed in specialized boxes.
Full container loading for 40'GP/OT, 20'GP, or 40'HQ.

Project Cases & Certifications

Project Cases
Certifications

Frequently Asked Questions

What is the standard delivery time for orders?
Typically, the delivery time is 30 days after receiving the deposit and confirming all technical drawings.
What are the accepted payment terms?
We accept L/C or T/T payments (30% prepaid as a deposit, with the remaining 70% balance due before shipment).
What information is required to receive a detailed quotation?
Please provide the project location, dimensions (LxWxH), local wind and snow loads, anti-earthquake levels, and whether a crane or specific insulation materials are required.
What materials are used for the main structure?
The main structure is made of welded H-section or hot-rolled H-section steel, using high-quality Q235 or Q345 carbon structural steel.
What is the expected lifespan of these steel structures?
Our steel buildings are designed for long-term durability, with a service life of up to 50 years depending on environmental conditions.
Can you provide customized designs?
Yes, we can create custom designs and provide quotations based on your specific detailed requirements or provided drawings.
