Premium Material Asrs Warehouse Picking System Automated Storage and Retrieval System
Premium Material Asrs Warehouse Picking System Automated Storage and Retrieval System
Premium Material Asrs Warehouse Picking System Automated Storage and Retrieval System
Premium Material Asrs Warehouse Picking System Automated Storage and Retrieval System
Premium Material Asrs Warehouse Picking System Automated Storage and Retrieval System
1 / 5
Premium Material Asrs Warehouse Picking System Automated Storage and Retrieval System
Premium Material Asrs Warehouse Picking System Automated Storage and Retrieval System
Premium Material Asrs Warehouse Picking System Automated Storage and Retrieval System
Premium Material Asrs Warehouse Picking System Automated Storage and Retrieval System
Premium Material Asrs Warehouse Picking System Automated Storage and Retrieval System

Premium Material Asrs Warehouse Picking System Automated Storage and Retrieval System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Technical Specifications

Model NO.
HYD-ASRS02
Material
Steel (Q235)
Type
Selective Pallet Racking
Height
5-40m
Weight Capacity
150kg-5000kg
Structure
Rack Combined
Pallet Size
1*1.2m or Customized
Package Type
Carton, Plastics, or Non Package
Storage Medium
Pallet, Metal Cage, etc.
Origin
China

System Overview

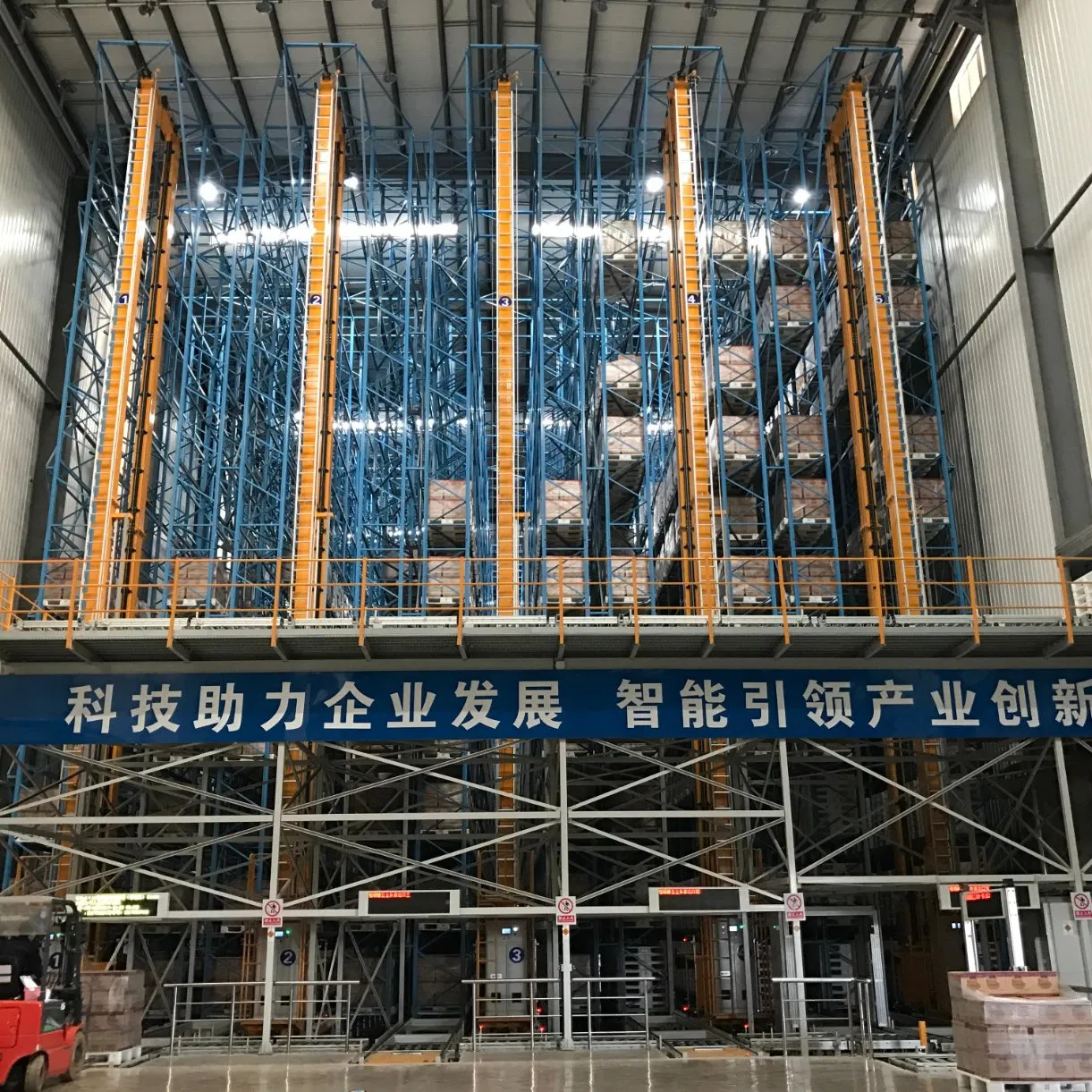

Stacker Crane AS/RS for pallets is an automated system that efficiently stores and retrieves goods, replacing manual warehousing tasks. The storage and retrieval machine (SRM) operates as a crane that moves horizontally within a single aisle.

Double Deep Pallet Automated Warehouse Storage System (AS/RS) is renowned for its high-density pallet storage, rapid operation, and adaptability. Its versatile design spans up to 40 meters, allowing customization to seamlessly integrate into your specific installation environment and operational requirements.

Solution Components:

ASRS is the main application form in the field of non-dense automated storage. The system consists of:

  • Stacker crane (Core equipment with horizontal/vertical driving devices)
  • Pallet conveying system
  • ASRS racking system
  • WMS/WCS management and control system
ASRS Warehouse System

Unit Load Handling Scope

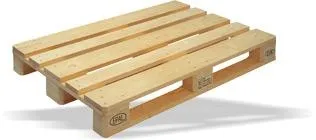

Open Pallet
Open Pallet: Standard size 800x1200 and 1000x1200 used in Europe/Asia.

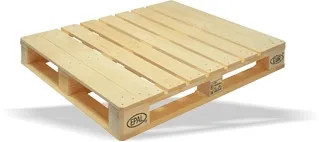

Closed Pallet
Closed Pallet: Standard shape and popular size 800x1200 and 1000x1200.
Pallet Cage
Stillages/Pallet Cage: Four-legged cage for machine parts storage.

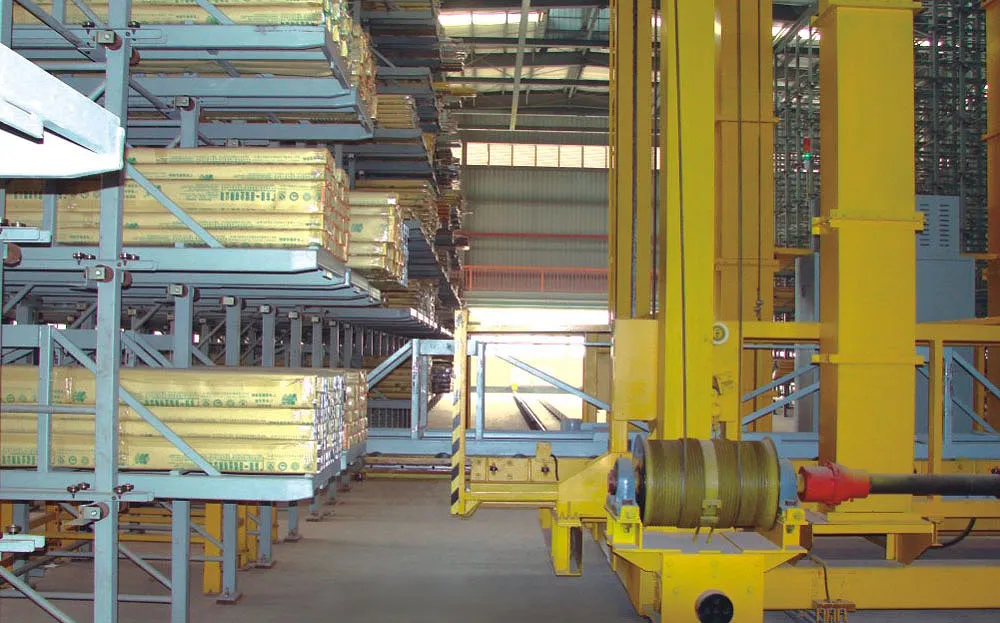

Long Objects
Long Objects: Storage for pipes, bars, and plates up to 6m long.

System Configurations

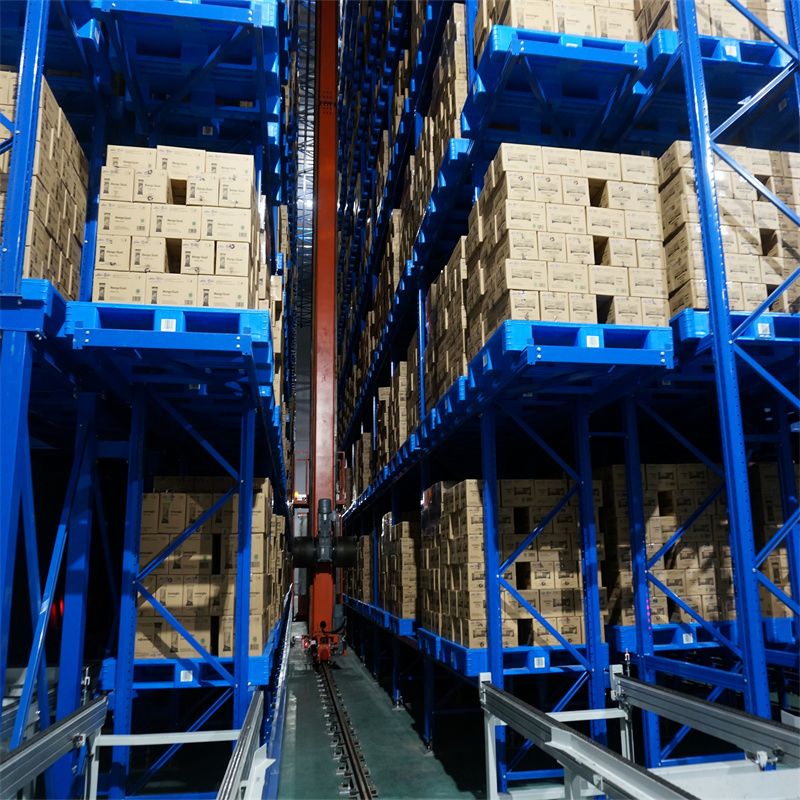

Storage / Retrieval Machine (S/RM)

Enables efficient movement within the AS/RS regardless of depth or height constraints.

  • Double Mast Design: Stability for heights up to 140 feet.
  • High Speed: Horizontal up to 900 ft./min, Vertical 400 ft./min.
  • Load Capacity: Up to 5,000 lbs for single-load machines.
S/RM Machine

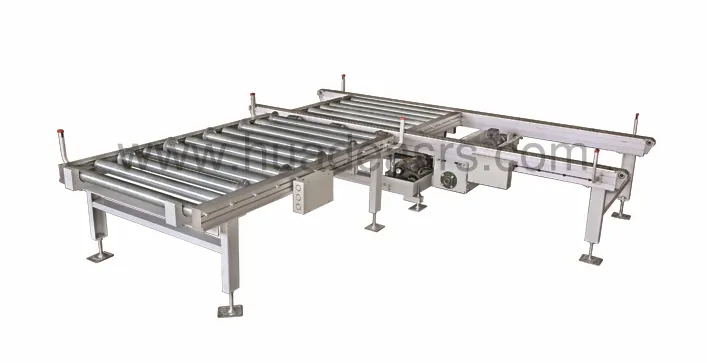

Conveying Systems

Ensures continuous movement of goods with precision control.

  • Seamless Integration with wrappers and labelers.
  • Real-time monitoring and high throughput.
  • Robust components for minimal maintenance.
Conveying System

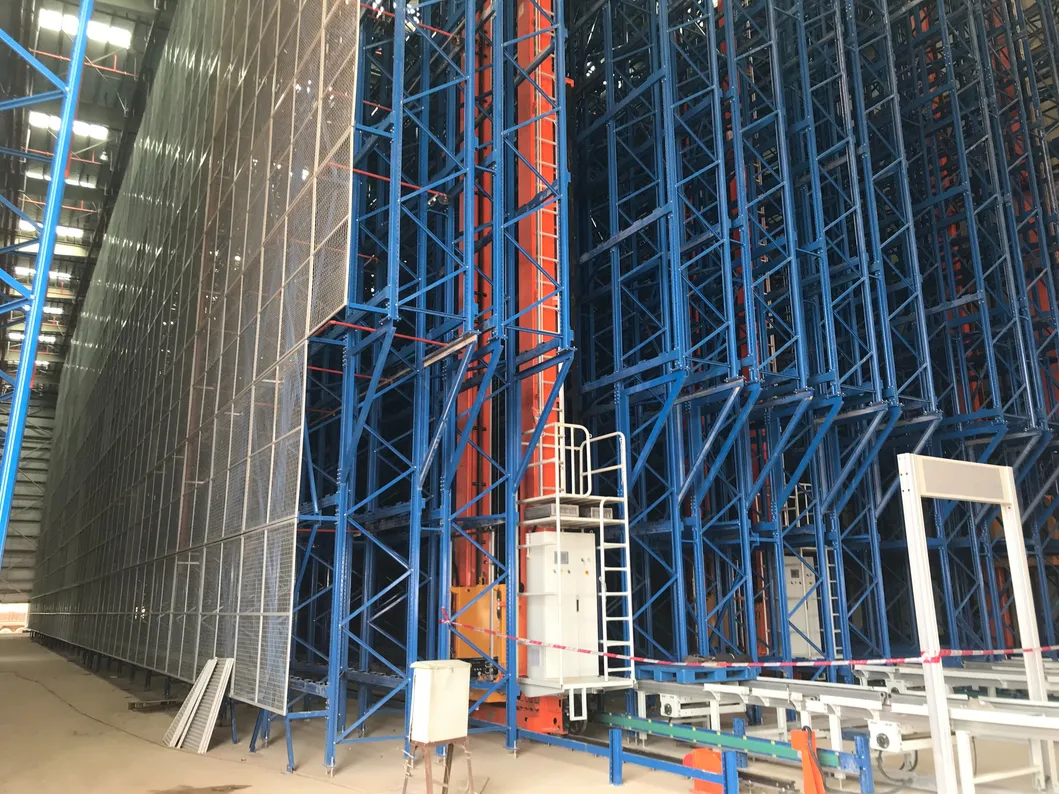

ASRS Racking

Compact storage in high bay warehouses. Manufactured with precision and fully bolted to the floor slab for robust stability.

  • Optimized for crane forces and seismic requirements.
  • Full product engineering certification.
  • Fast order fulfillment through software integration.
ASRS Racking

Project Showcase

Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Detail 7
Detail 8

Frequently Asked Questions

What types of Automated Storage solutions are available?
We offer Unitload AS/RS for pallets, Miniload AS/RS for boxes/containers, Shuttle storage systems, Rack-supported buildings, and Electrical Mobile Racking.
How high can the ASRS racking system go?
The system is highly versatile and can be designed to reach heights up to 40 meters (approx. 140 feet), optimizing vertical warehouse space.
Is this system suitable for cold storage environments?
Yes, the stacker crane features a specially treated anti-low temperature design, making the entire system suitable for cold storage projects.
What are the primary advantages of an automated warehouse?
Primary benefits include full utilization of vertical space, improved turnover rates, reduced dependence on manual labor, faster transportation, and automated goods management.
What is the implementation process for a new project?
Our process includes 6 steps: Defining objectives, Measuring data, Analyzing operating systems, Designing the model, Validating feasibility/costs, and Final Client Presentation.
Can the system handle irregular loads?
Yes, the system is designed to handle standard open/closed pallets, stillages/pallet cages, and even long objects like pipes and bars up to 6m.
