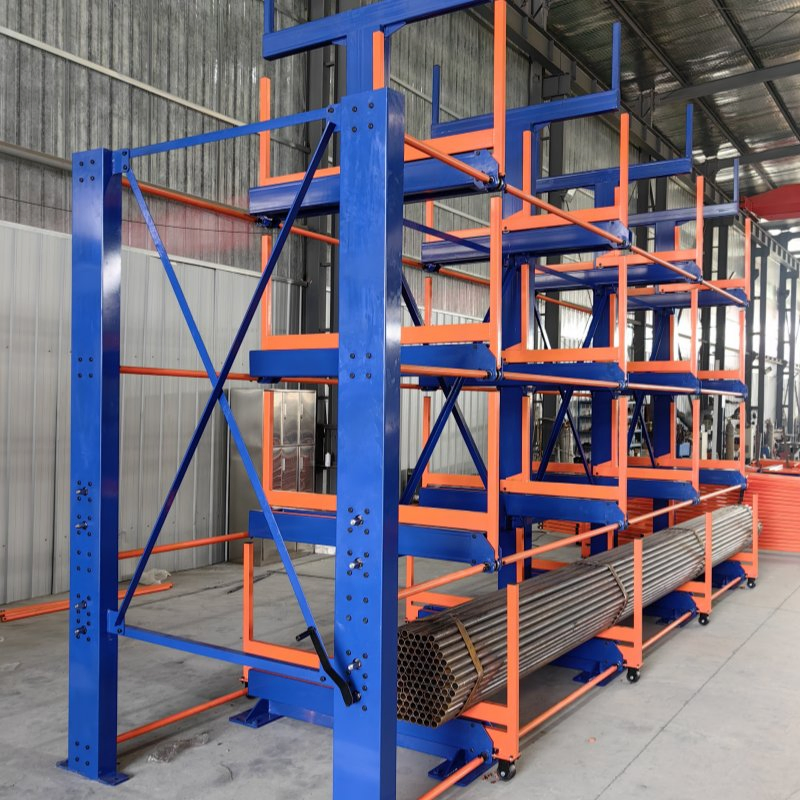

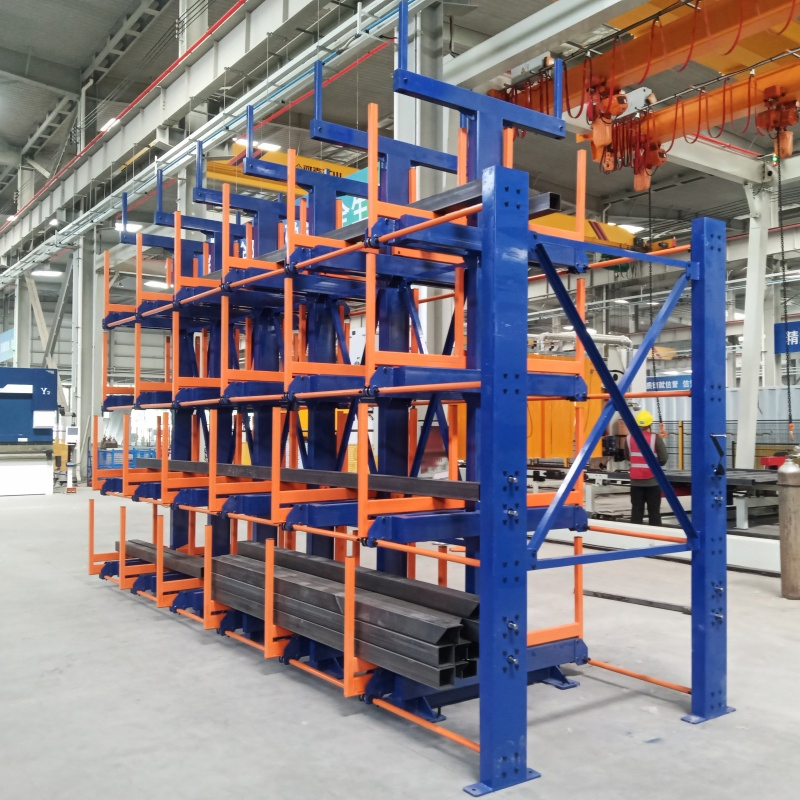

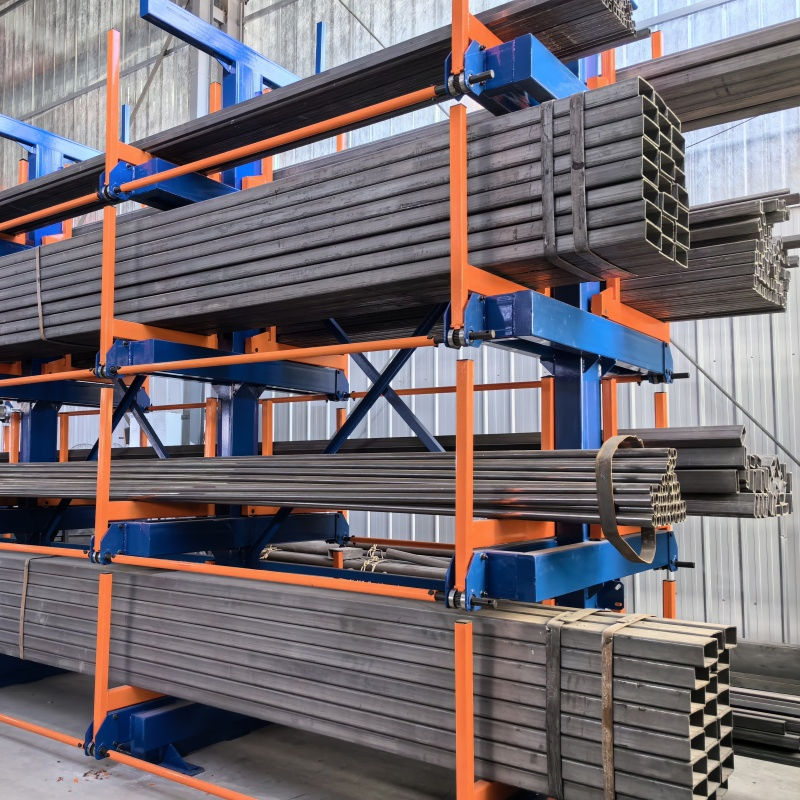

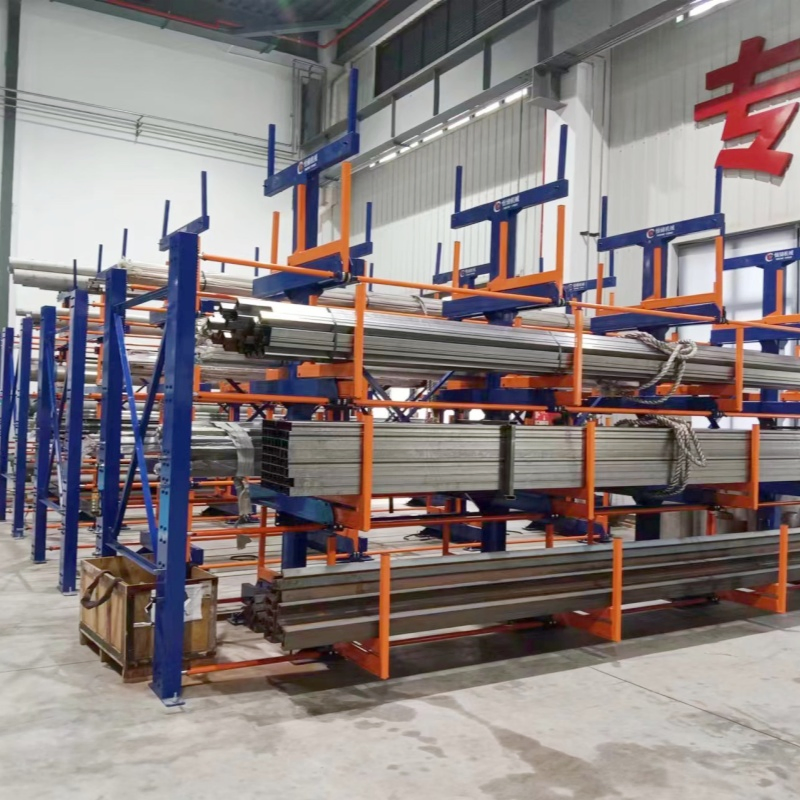

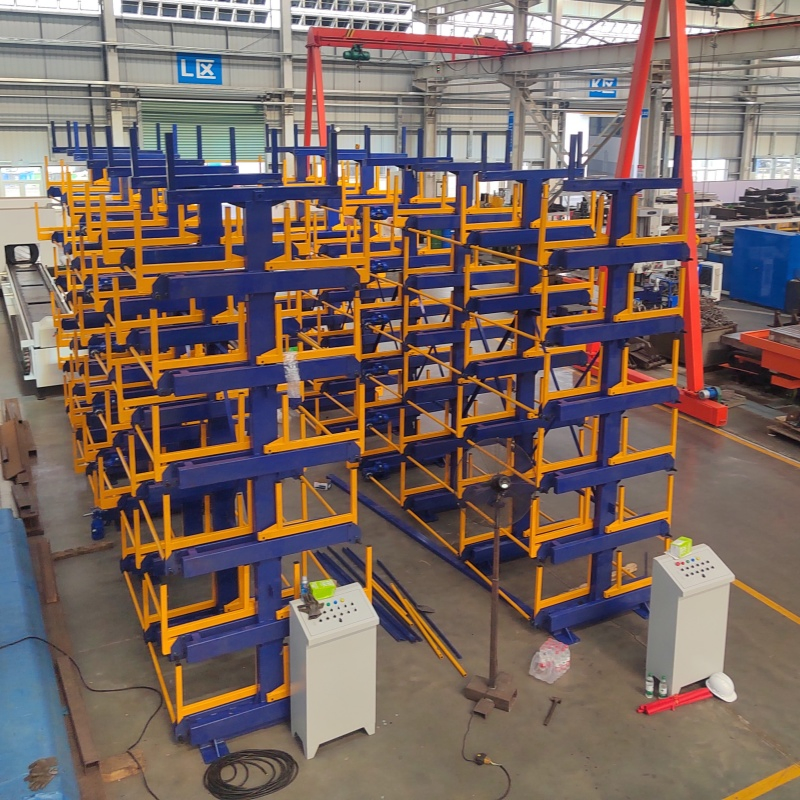

Sheet Metal Pipe Storage Racking System with Electric Telescoping Cantilevers

Technical Specifications

Model NO.

HC-G6053D

Usage

Tool Rack, Tools, Industrial, Warehouse Rack

Material

Steel

Structure

Drawer

Type

Multi-Level Racking

Mobility

Adjustable

Height

0-5m

Weight

500kg

Closed

Load (Single Layer)

3t-15t Customizable

Plate Size mm

3000-8000

Number of Layers

7+1 Customizable

Drawer Movement

Integrated Pull-out Type

Origin

China

Production Capacity

10000set/Year

HS Code

7308900000

Product Overview

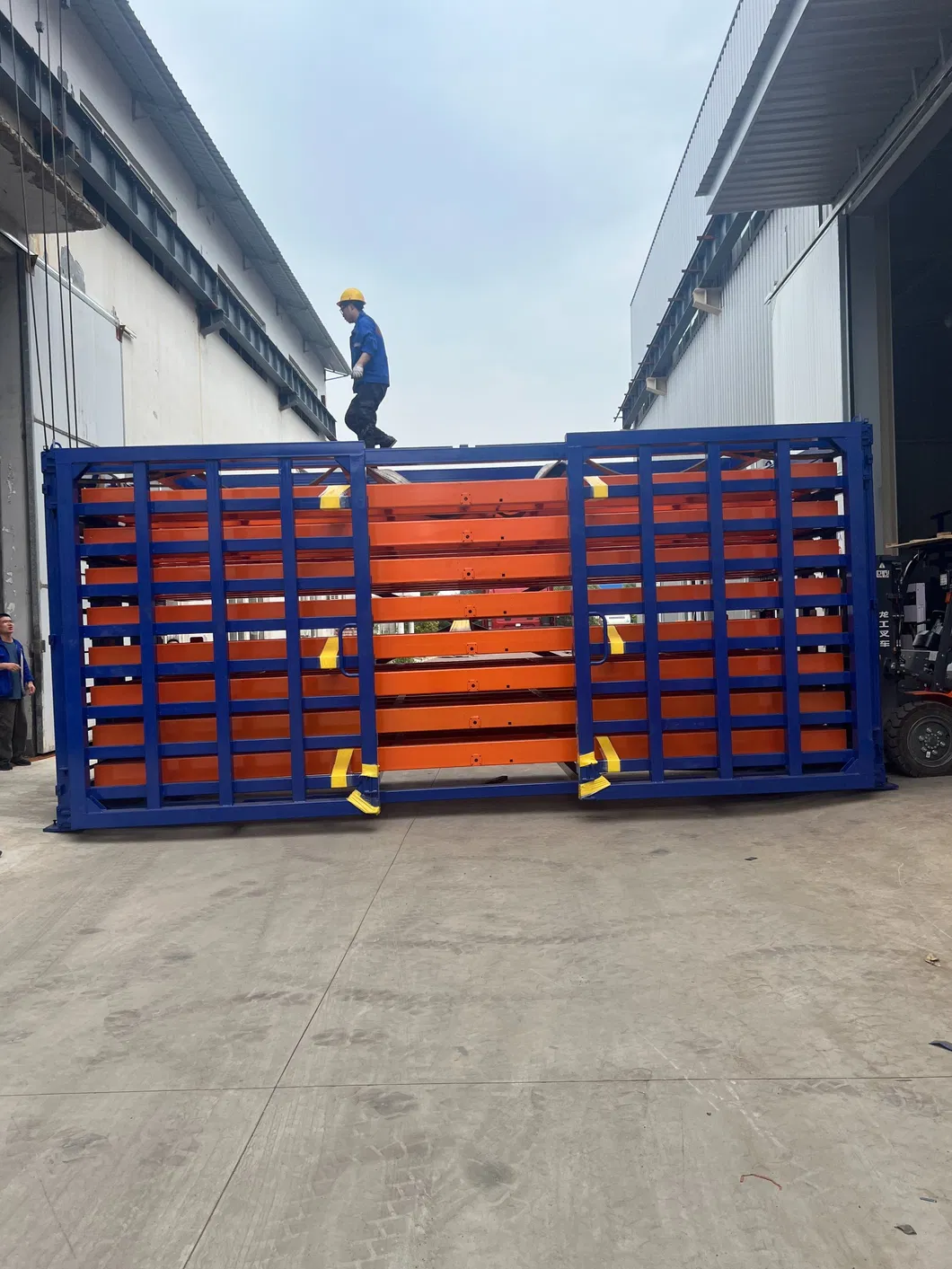

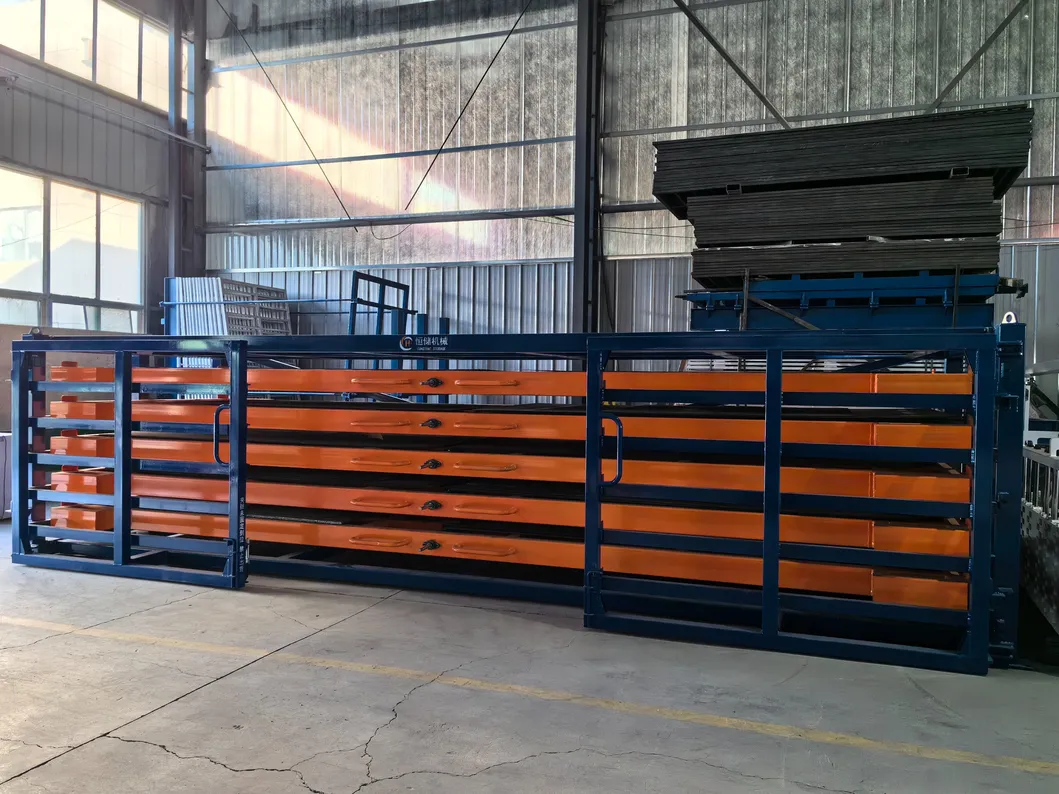

Roll out sheet metal rack is ideal for organizing and managing your sheet metal well, such as steel sheets, Aluminum, Plates, Flat products, and tools. It optimizes your vertical and floor space, improve work efficiency and creating a safe work environment.

Comparison Table

Standard	HC-B3015-63	HC-B4015-63	HC-B4020-65	HC-B6020-66	Customized
Load (single layer)	3t	3t	5t	6t	Available
Plate size mm	3000x1500	4000x1500	4000x2000	6000x2000
Number of layers	5+1
Partition Height mm	≤220
External Dimensions mm	3505x2280x2000	4505x2280x2000	4505x2280x2500	6505x2280x2500

Key Features

Increase storage density and use more vertical space.
Organizing steel inventory efficiently by size, type, and material.
Heavy duty storage equipment with max loading 5 tons per drawer.
Each roll out drawer can be extended completely for full access.
Lock-in, Lock-out mechanism for each drawer ensures operation safety.
Quick operation by a single person using lifters, vacuums, magnets, or hoists.
Reduces material damage during handling and creates a safer workplace.
Perfectly complements laser cutting, shears, and press brakes machinery.

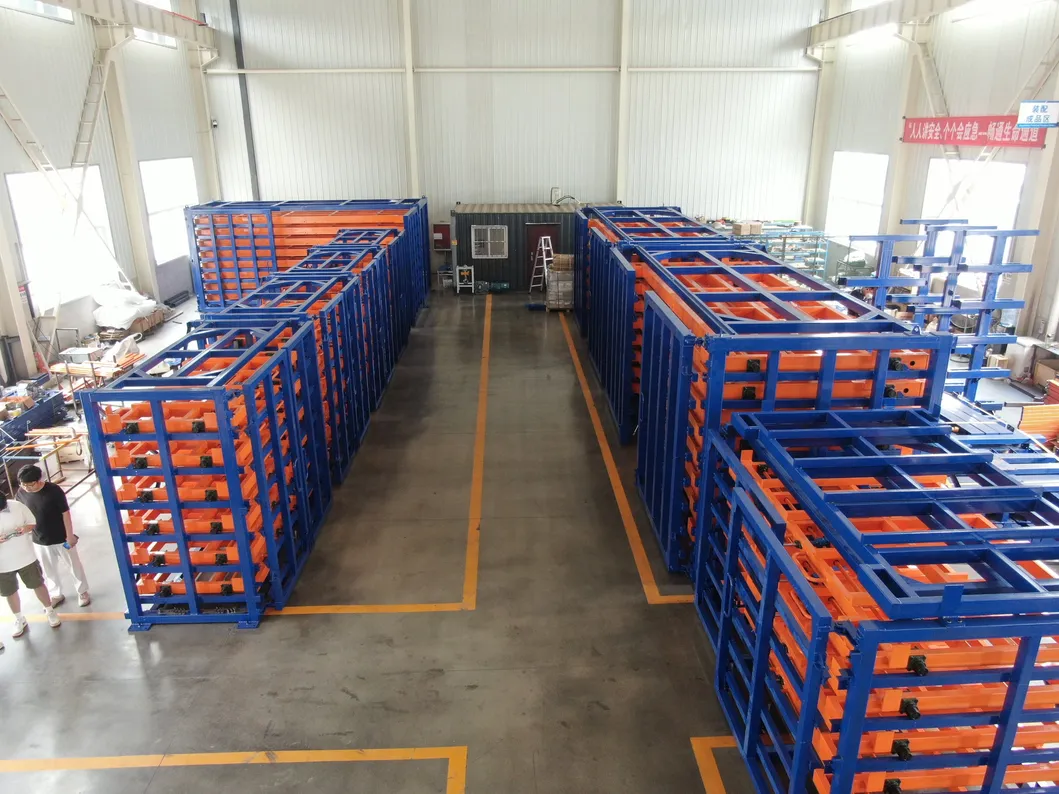

Factory & Manufacturing

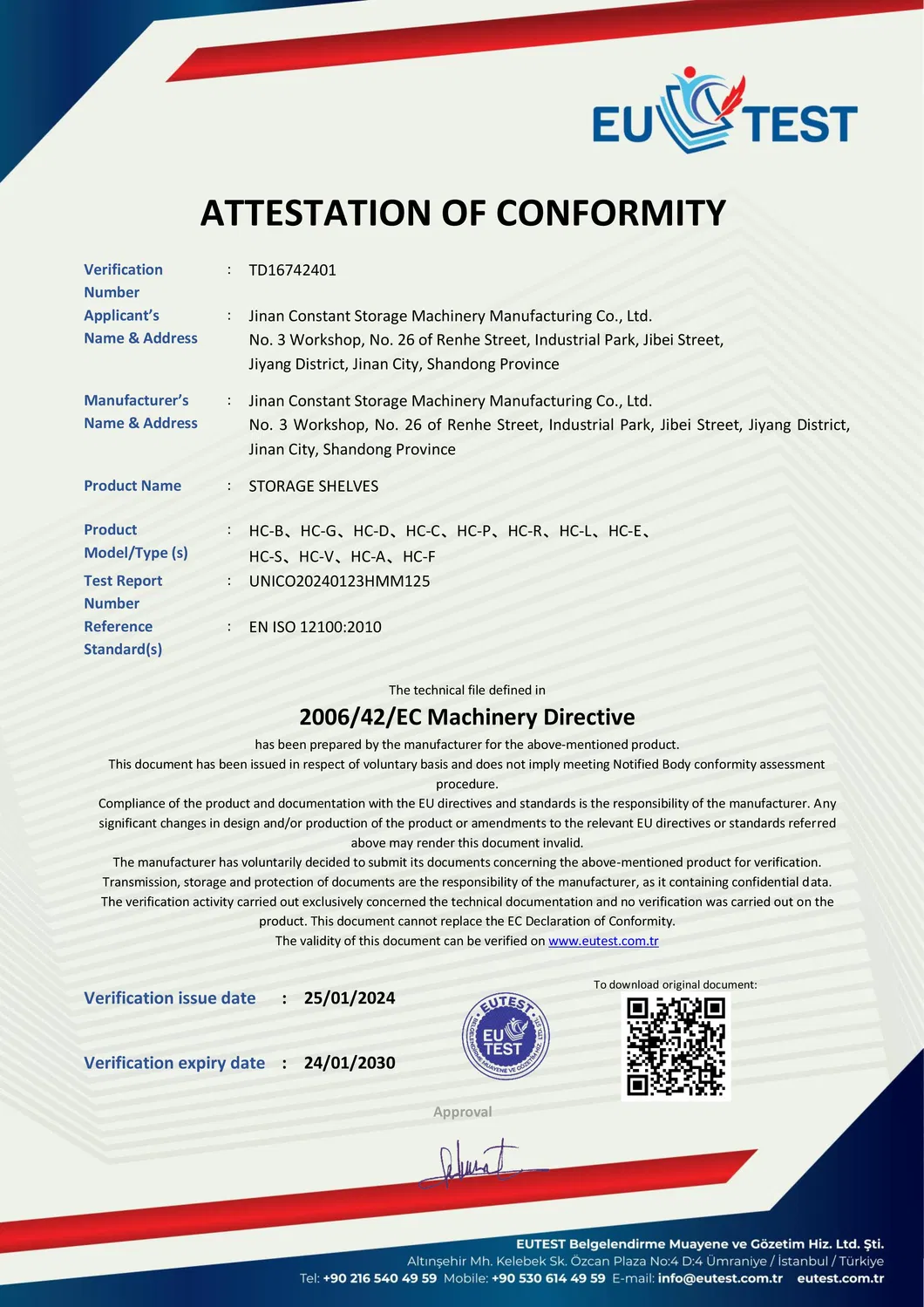

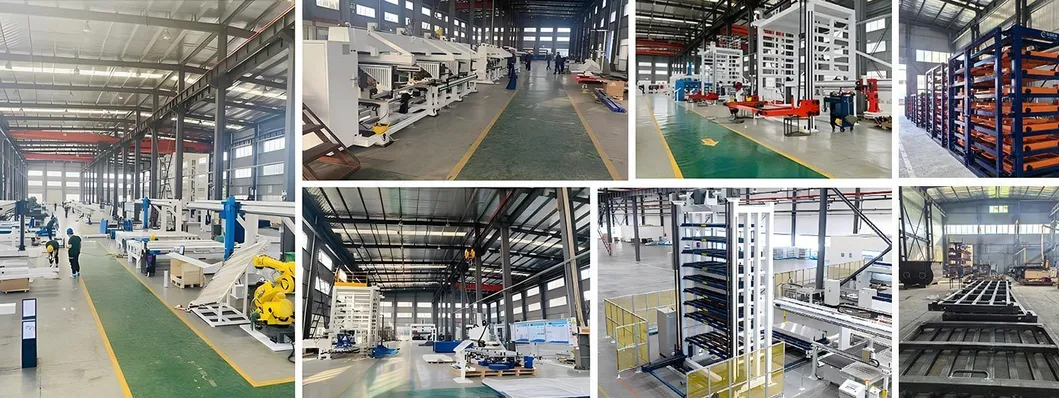

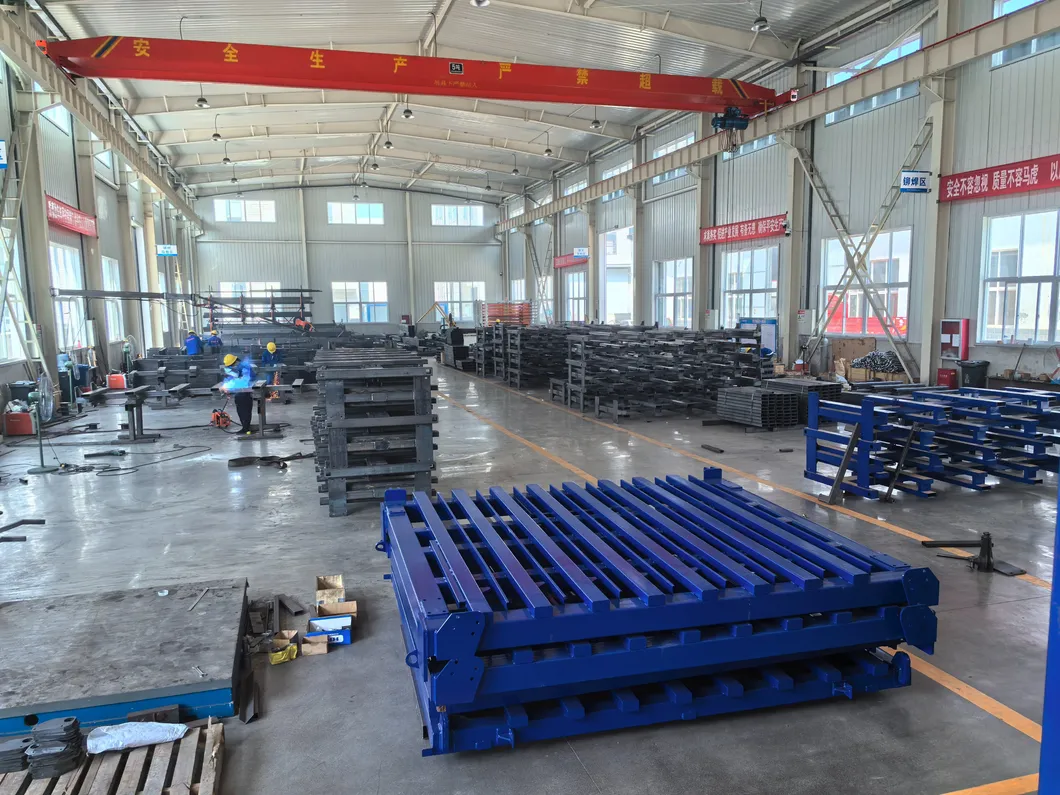

Our facility features a 16,000-square-meter modern standard factory building with a professional service team to offer customized services that integrate production, delivery, and installation guidance. Management and products have successfully passed ISO9001 and EU CE certifications.

Main Product Categories

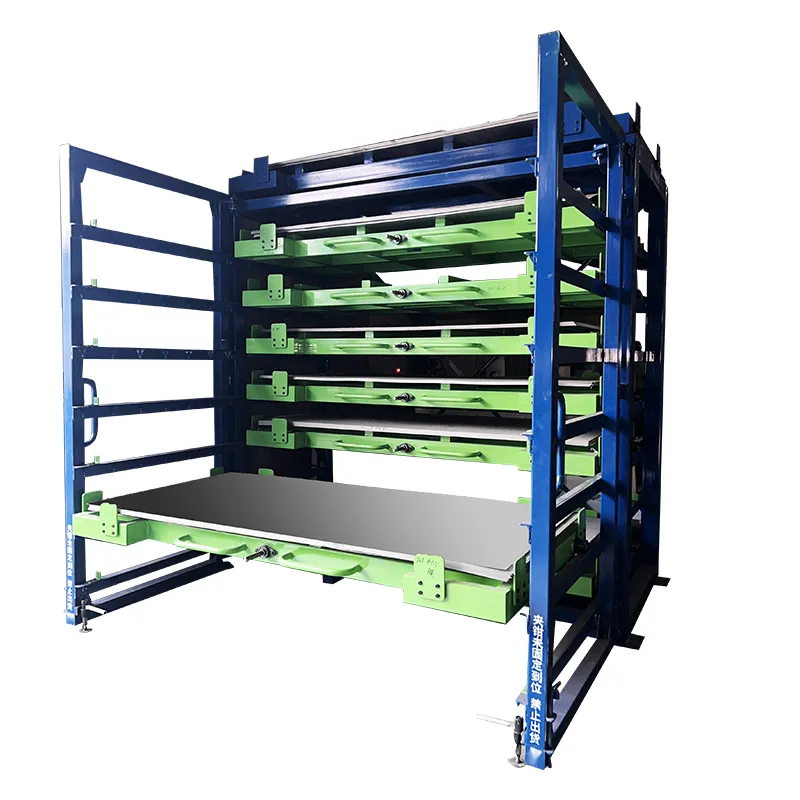

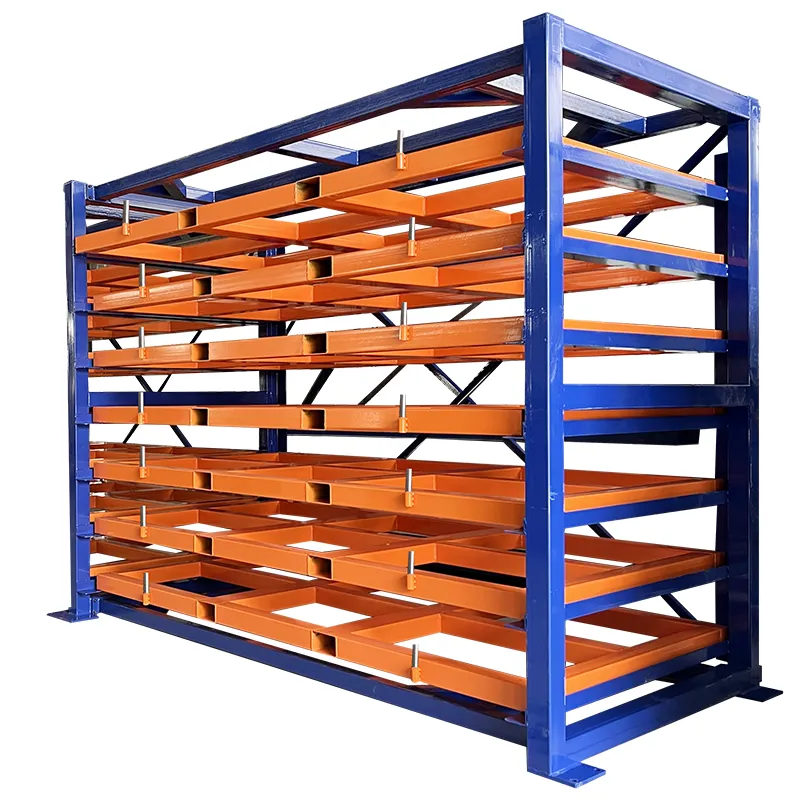

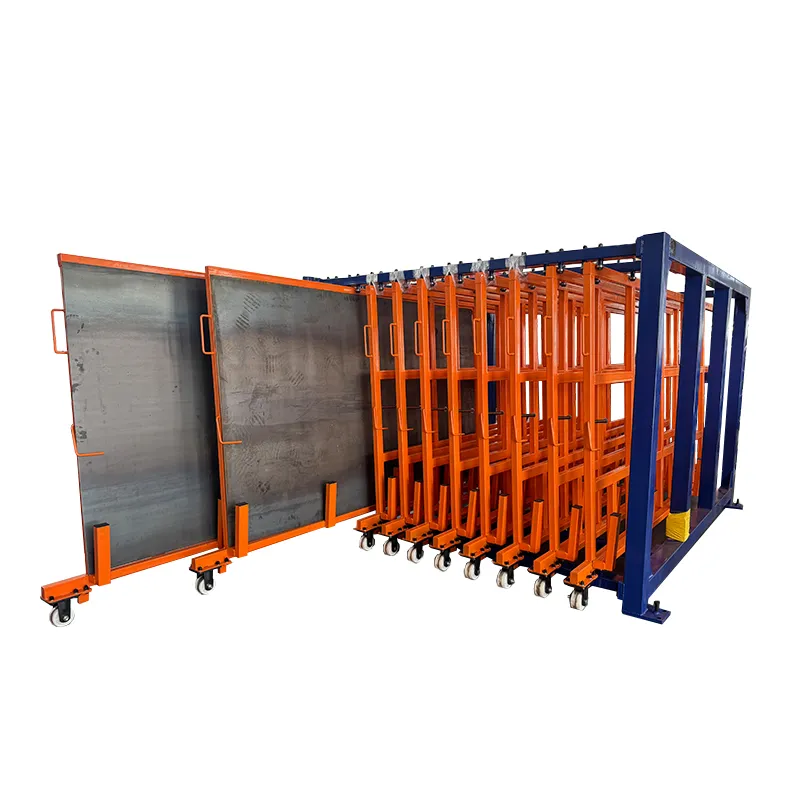

Sheet material storage rack

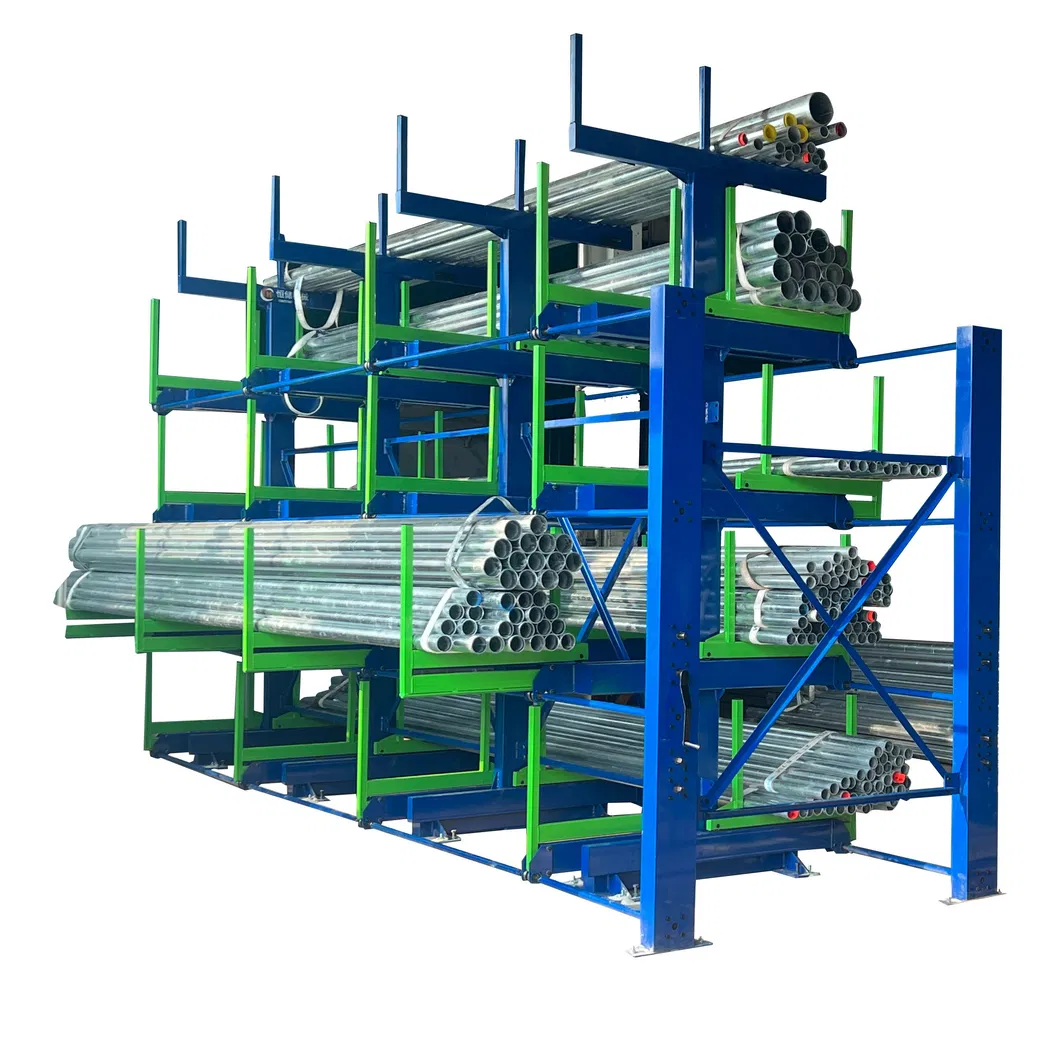

Roll Out Cantilever Racking

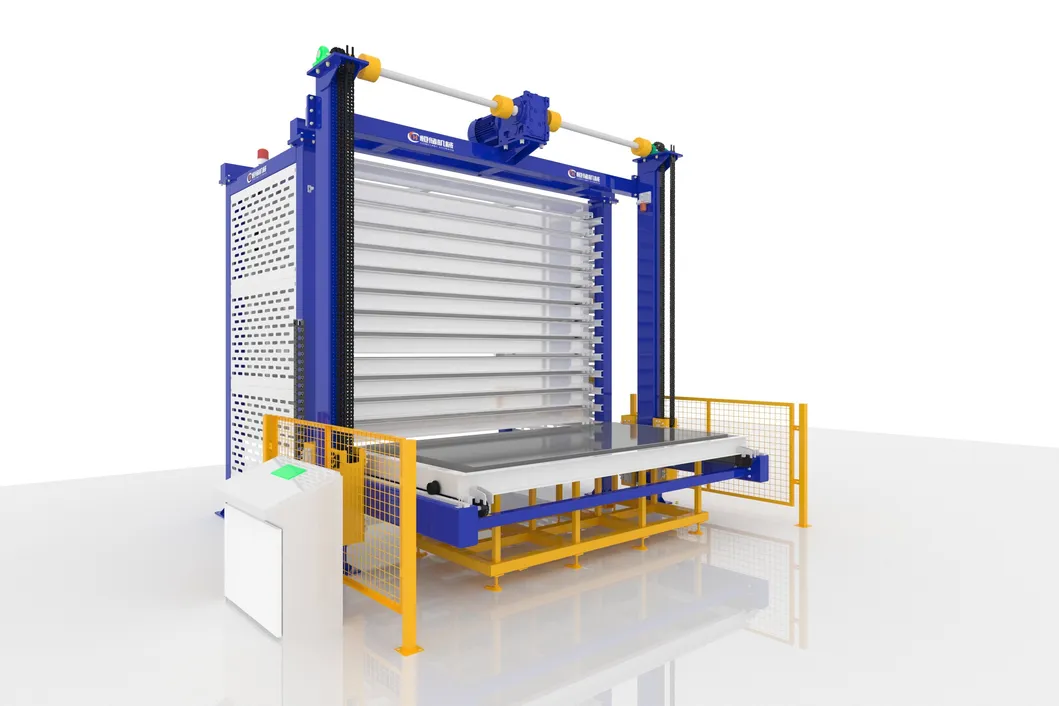

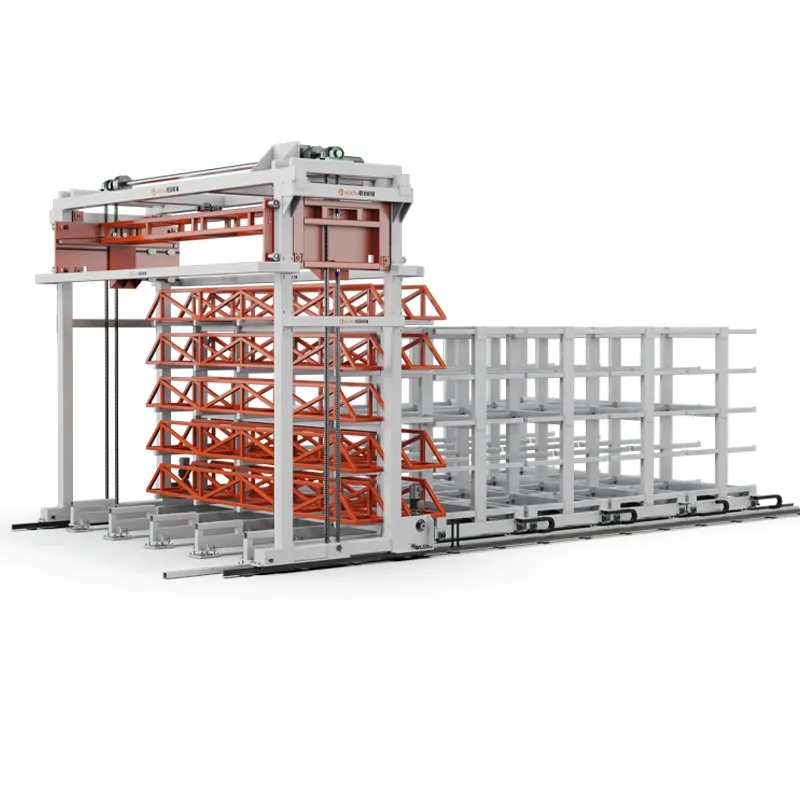

Automatic Storage System

Frequently Asked Questions

How can I proceed with procurement?

You can contact our technical personnel via the platform. We will provide a suitable technical solution and quotation based on your specific parameters.

How do I let you know I need the right shelves?

Please specify the type of material, its dimensions, the required number of shelf layers, and any other specific operational requirements. Our team will design a professional solution for you.

Do you provide on-site installation and debugging?

Yes, we can send professional personnel to your facility to install and debug the equipment, including robotic arms, until a successful trial operation is achieved. Our team has global experience.

How do you ensure product quality?

We employ over 40 technical engineers and follow strict ISO9001 quality standards. Every piece of equipment undergoes load testing before leaving the factory to ensure structural safety and stability.

What is the focus of your manufacturing?

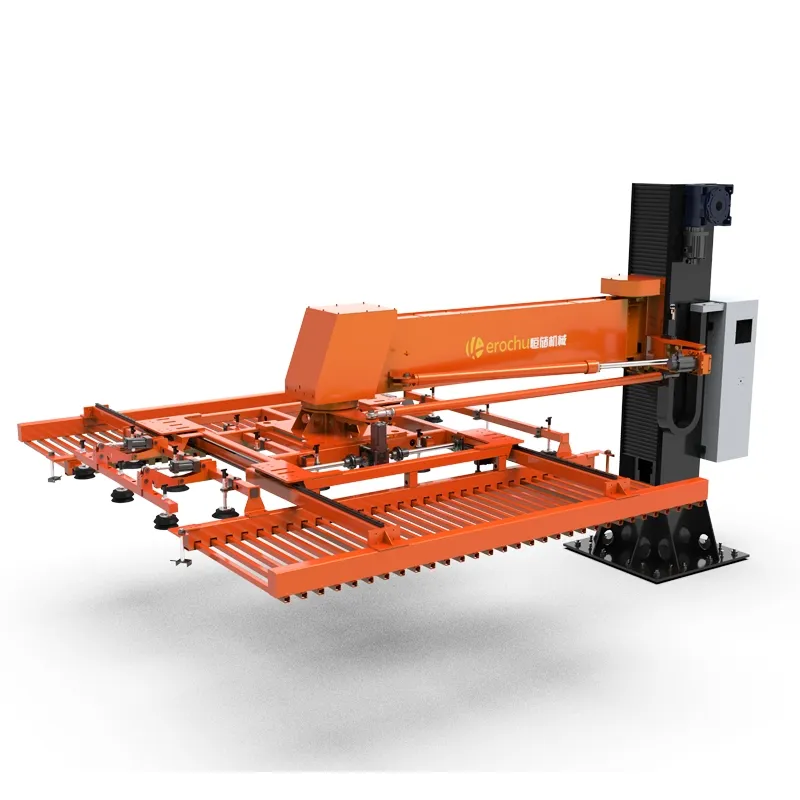

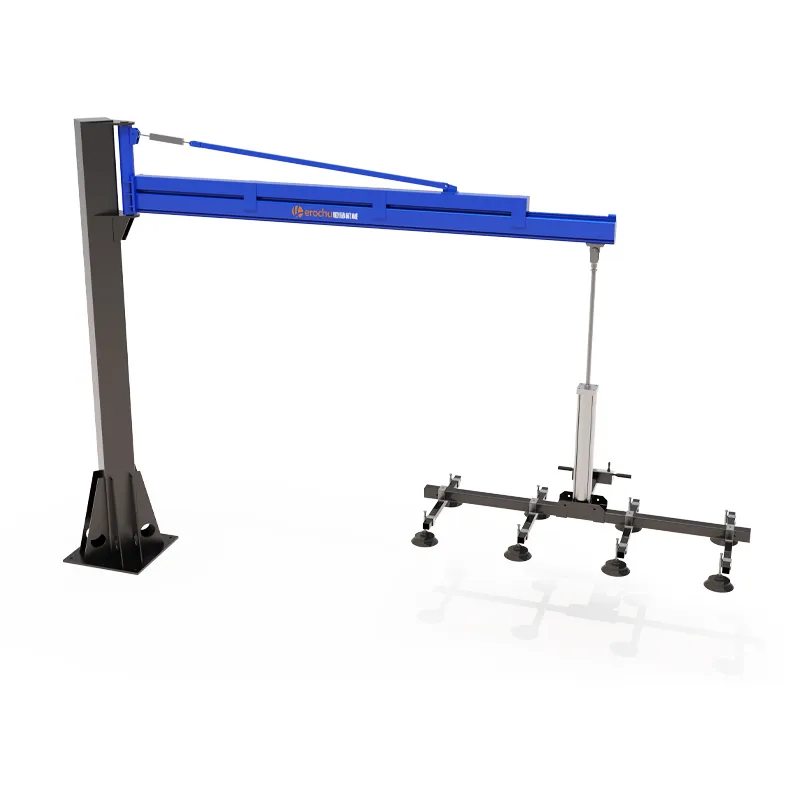

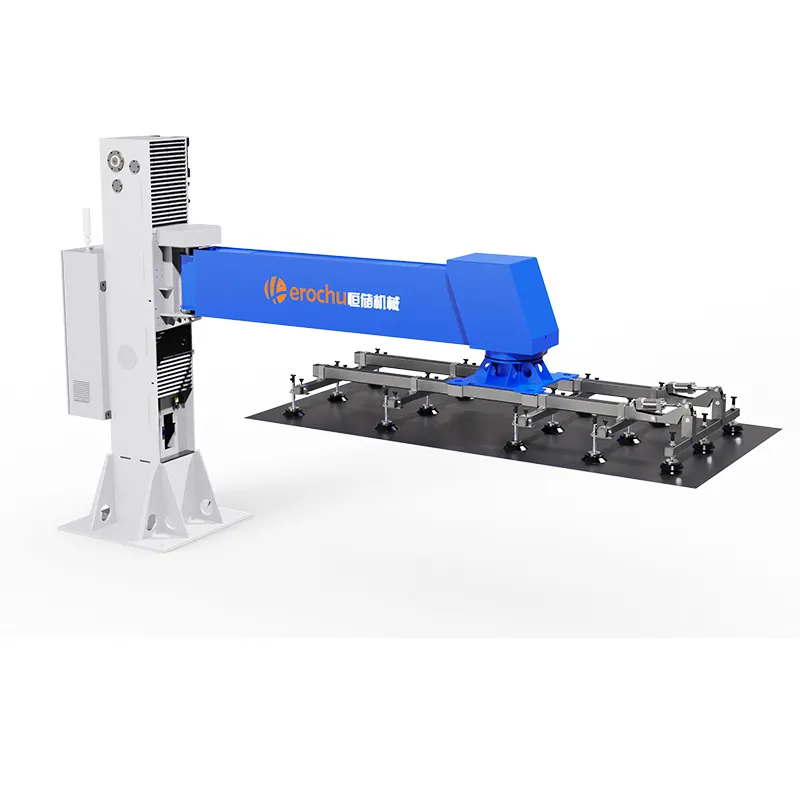

We focus on intelligent sheet metal material warehouses, drawer style sheet metal shelves, telescopic cantilever shelves, servo swing arm manipulators, and automatic loading and unloading systems.

Can we conduct a factory inspection?

Yes, we welcome visitors for on-site visits and can also conduct video factory inspections to demonstrate our production strength and facilities.
