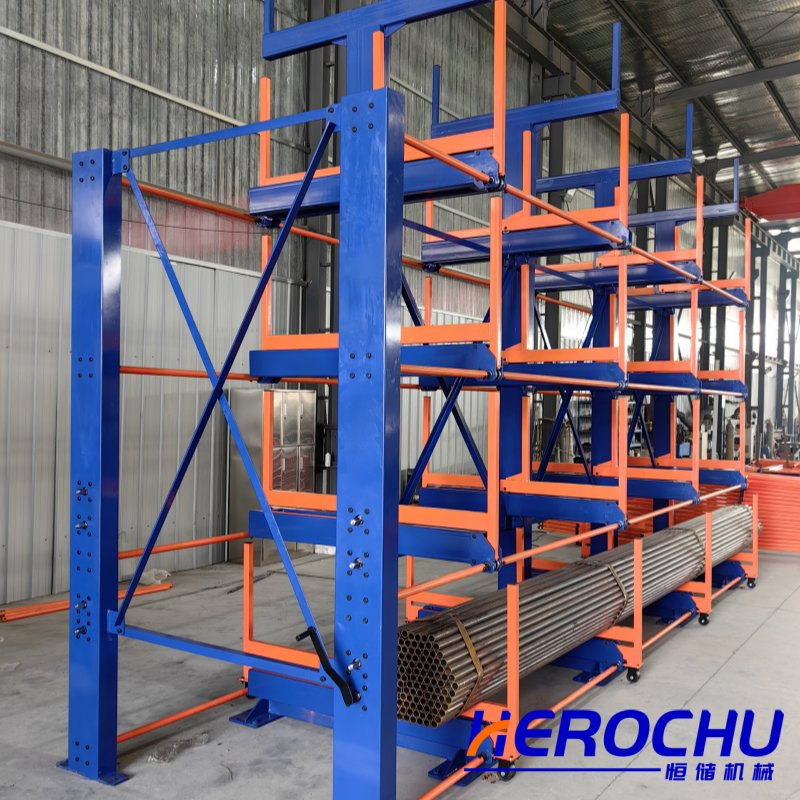

Sliding Cantilever Metal Pipe Rack System

Basic Information

Model NO.HC-G6053D

UsageTool Rack, Tools, Industrial, Warehouse Rack

MaterialSteel

StructureDrawer

TypeMulti-Level Racking

MobilityAdjustable

Height0-5m

Weight500kg

Load (Single Layer)1t-8t Customizable

Storage Sheet Size6m-12m Customizable

Number of Layers6+1 Customizable

Production Capacity10000set/Year

Technical Specifications

Standard	HC-G6053S	HC-G6053D	HC-G9055S	HC-G9055D	Customized
Storage Sheet Size	6000mm	6000mm	9000mm	12000mm	Customization
Loading Per Layer	2tons	3tons	5tons	6tons	Customization
Number of Layers	3+1	4+1	3+1	3+1	Customization
Single / Double	Single	Double	Double	Double	Customization
Operation System	PLC Frequency conversion control

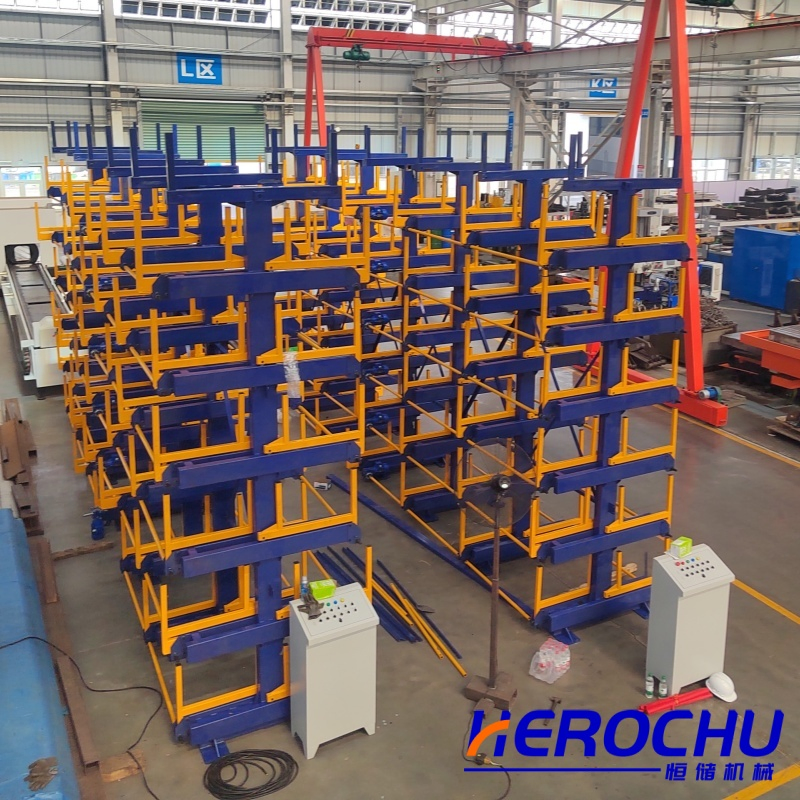

Sliding Cantilever Metal Pipe Rack System

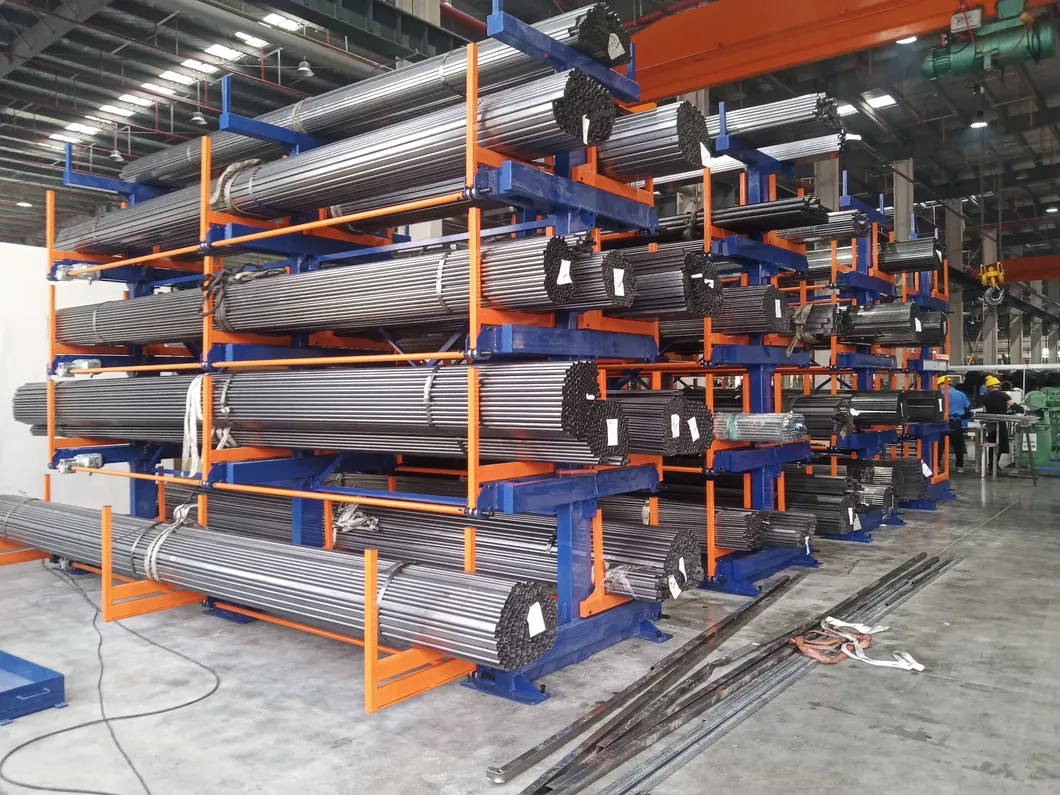

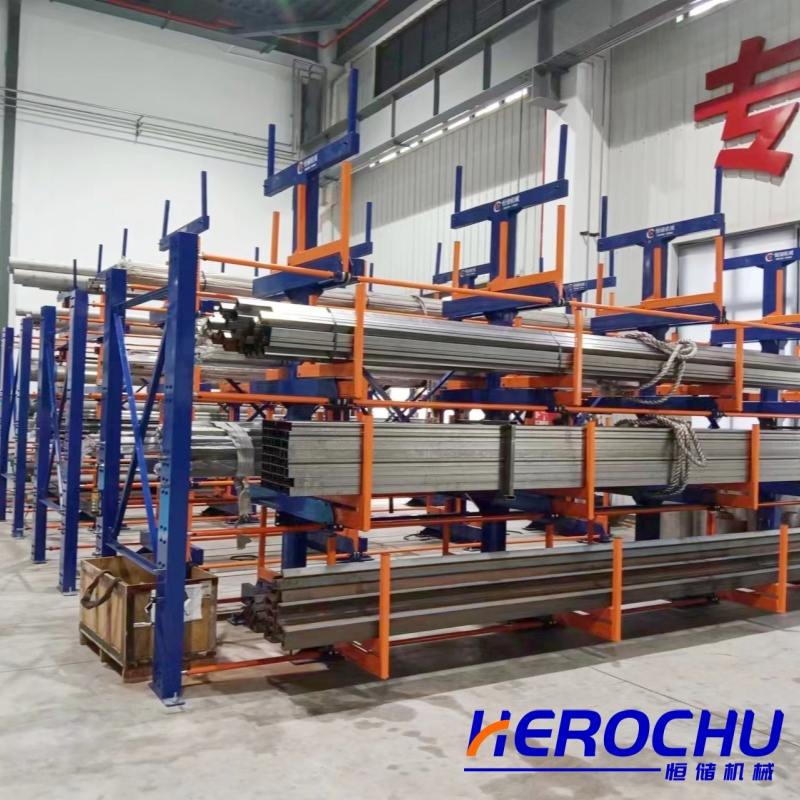

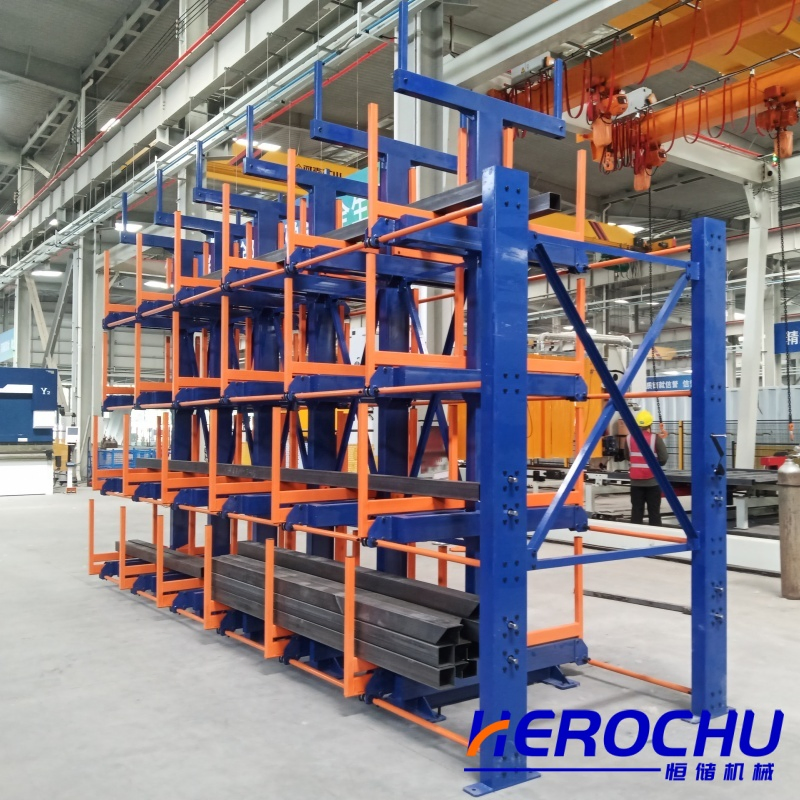

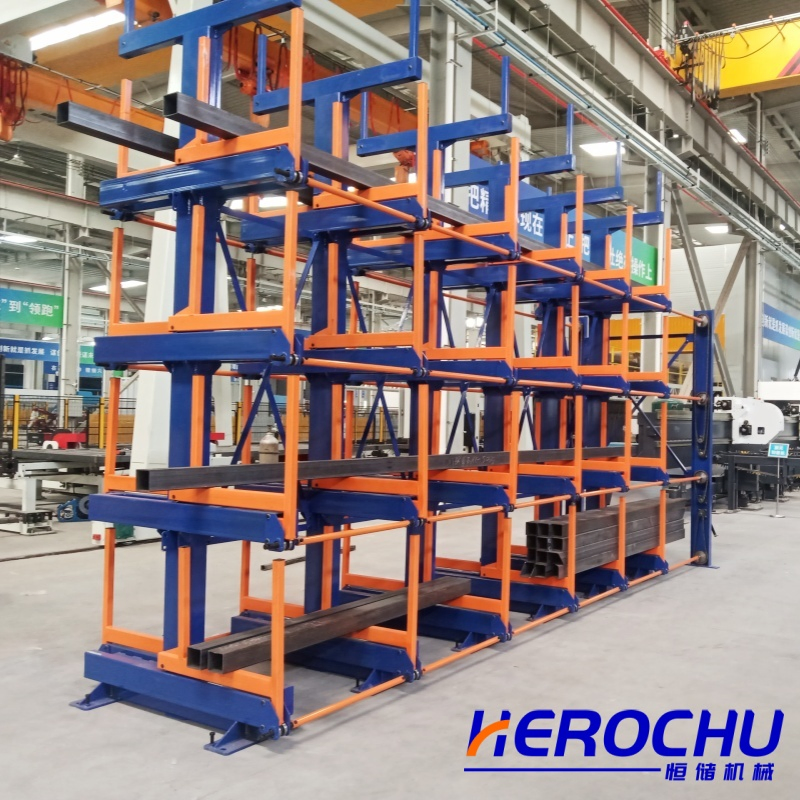

Roll out cantilever racking is ideal for storing and accessing bar stock, angle iron, tube, pipe, rollers, mandrels, and other long materials or bulk goods. Typically, locating specific items on the ground is time-consuming. Roll out racks significantly increase work efficiency and maximize warehouse space.

Key Features

Material handled by crane; no wide aisles required, saving floor space.
Sorting and storing of any length of material.
Time-saving: materials move directly from rack to terminal via crane.
Solid structure with heavy loading capacity (up to 5000kg per layer).
100% extended arms for easy access to every layer.
Single or Double units available with customized dimensions.

Production Facility

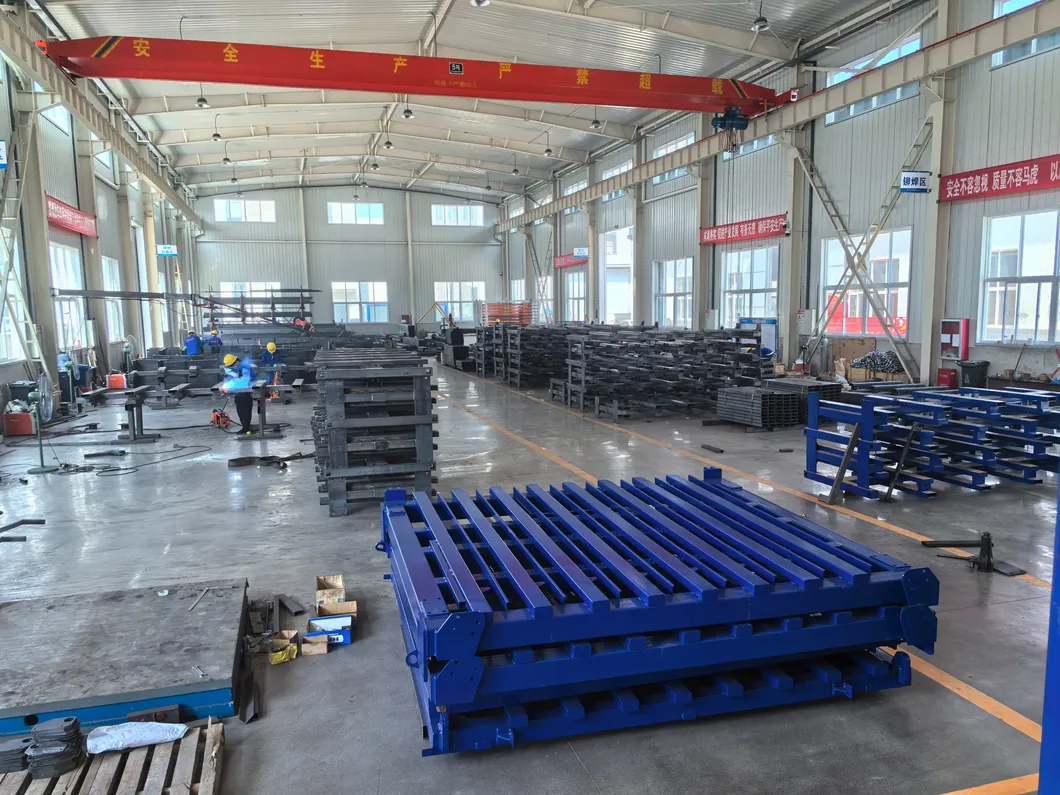

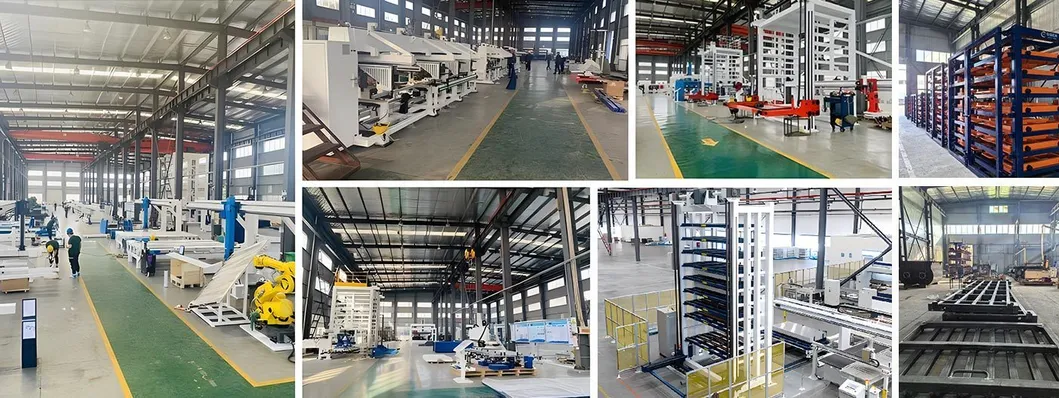

We operate a 16,000-square-meter modern standard factory building with over 100 dedicated employees. Our professional service team offers customized solutions integrating production, delivery, and installation guidance. Our management systems and products have successfully passed ISO9001 and EU CE certifications.

Main Product Categories

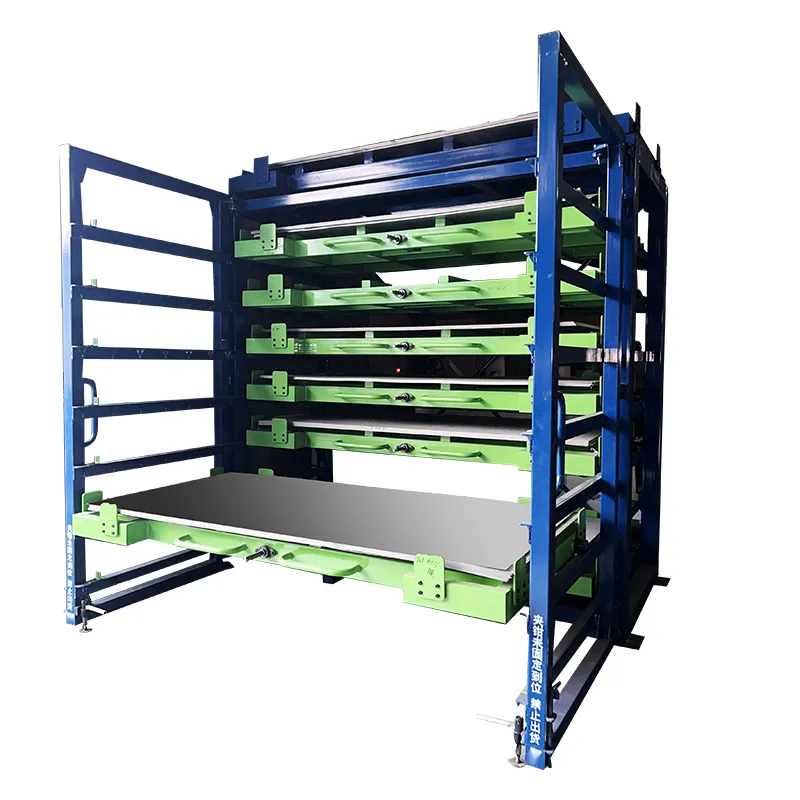

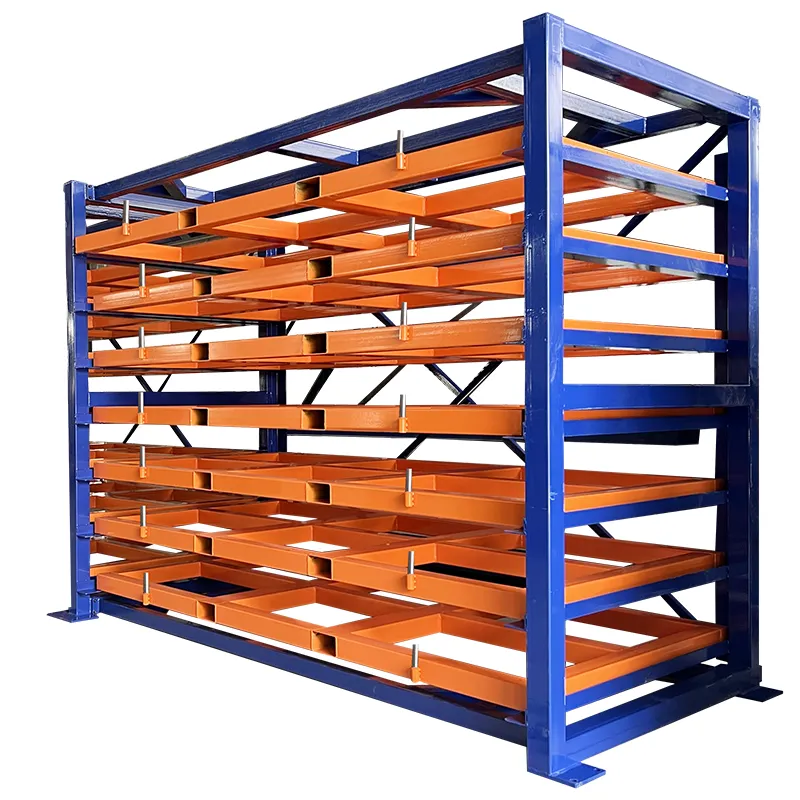

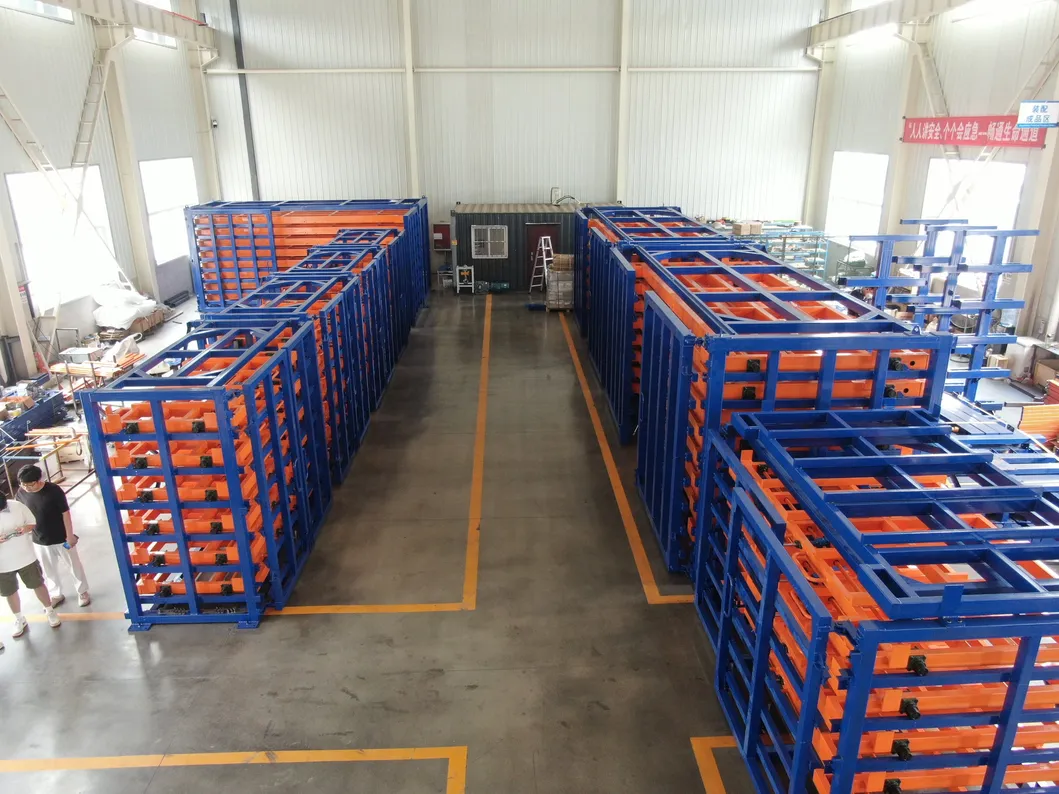

Sheet Material Storage Rack

Roll Out Cantilever Racking

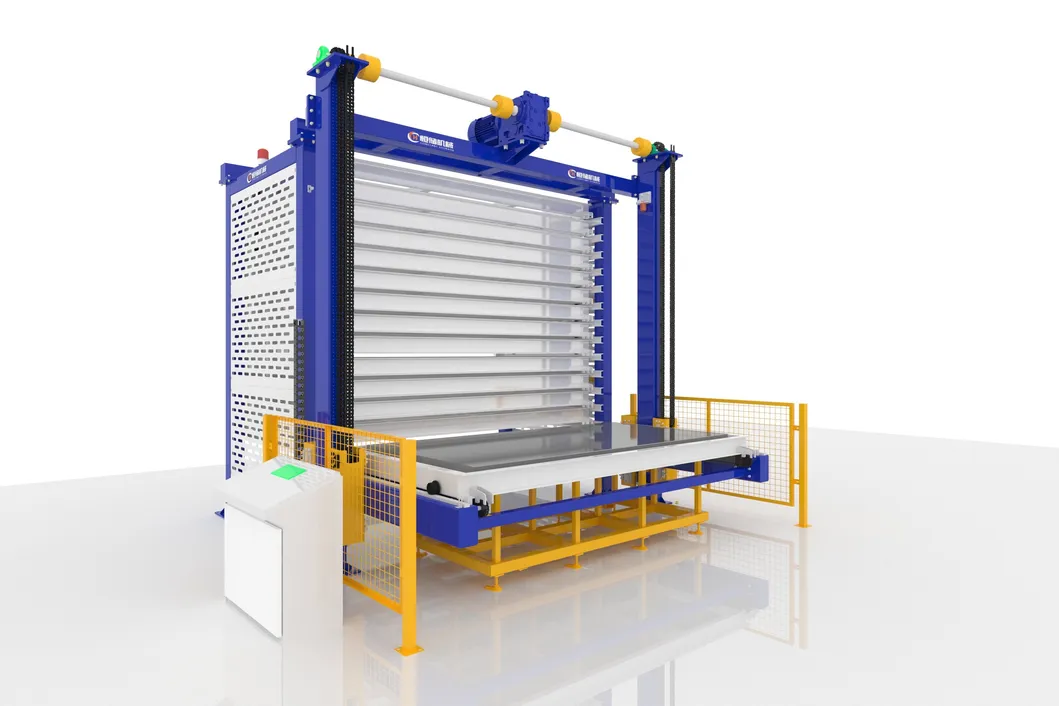

Automatic Storage System

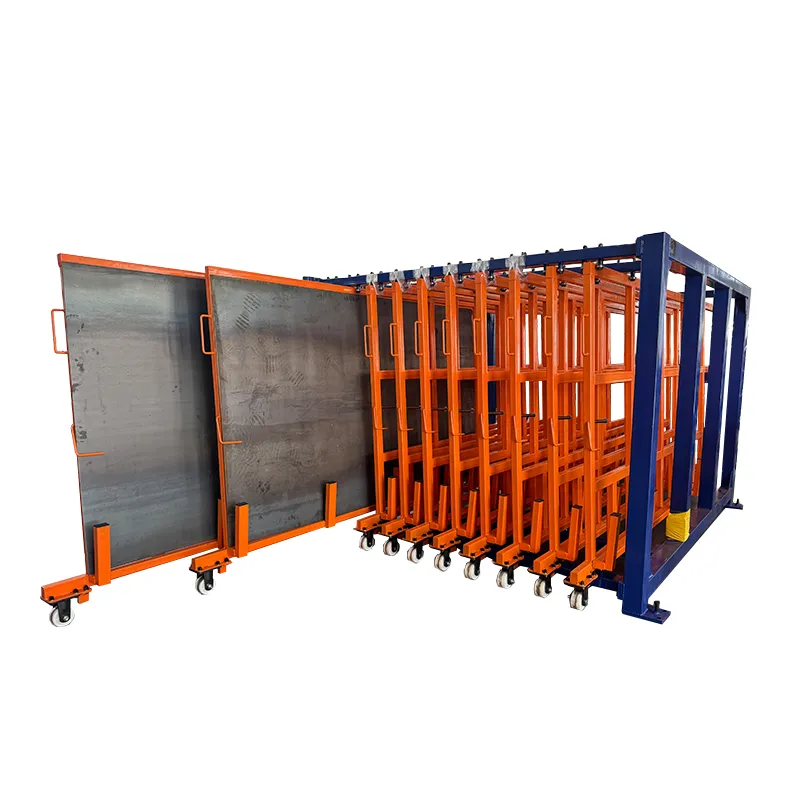

Vertical Roll Out Racks

Sheet Tower

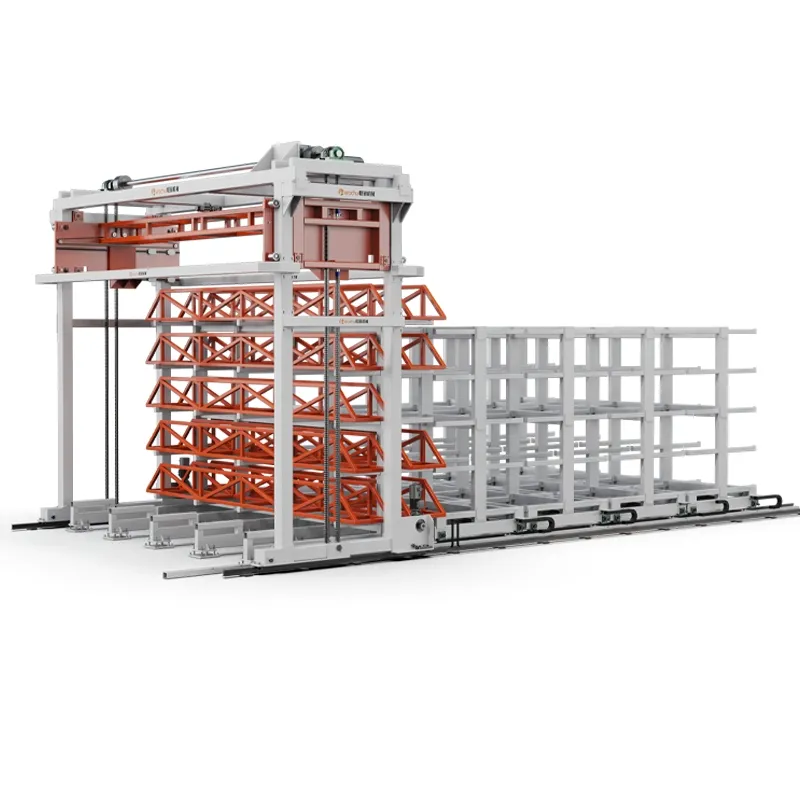

Profile Storage Warehouse

Frequently Asked Questions

How can I proceed with procurement?

You can contact our technical personnel with your specific parameters. We will provide a suitable technical solution and a detailed quotation based on your requirements.

How do I choose the right shelves for my needs?

Simply provide details regarding the material type, dimensions, desired number of layers, and any specific load requirements. Our team will design a professional storage solution for you.

Do you provide on-site installation and debugging?

Yes, we dispatch professional technicians to your facility to handle installation and debugging of equipment, including robotic arms, ensuring successful trial operation.

How is product quality ensured?

We employ over 40 technical engineers and a dedicated quality inspection department. We strictly implement ISO9001 standards and conduct load testing before equipment leaves the factory.

What types of storage systems do you specialize in?

We focus on intelligent sheet metal material warehouses, drawer-style shelves, telescopic cantilever racks, and fully automatic loading and unloading robotic systems.

Are the storage systems customizable?

Yes, most of our products including loading capacity, number of layers, and dimensions can be customized to fit your specific warehouse requirements.
