Solar Tracking and Racking Systems PV Power Slewing Drive Single Axis

Customization:	Available
Feature:	Corrosion-Resistant
Step:	Double-Step

Send Inquiry

Product Description

Basic Specifications

Model NO.

VH7-60S110-RC

Openness

Closed

Installation

Vertical

Transmission Form

Worm

Type

Single-Row Ball

IP Rating

Corrosion Protection

Solar Tracker

Slewing Drive

HS Code

8483409000

Production Capacity

3000PCS/Month

Product Description

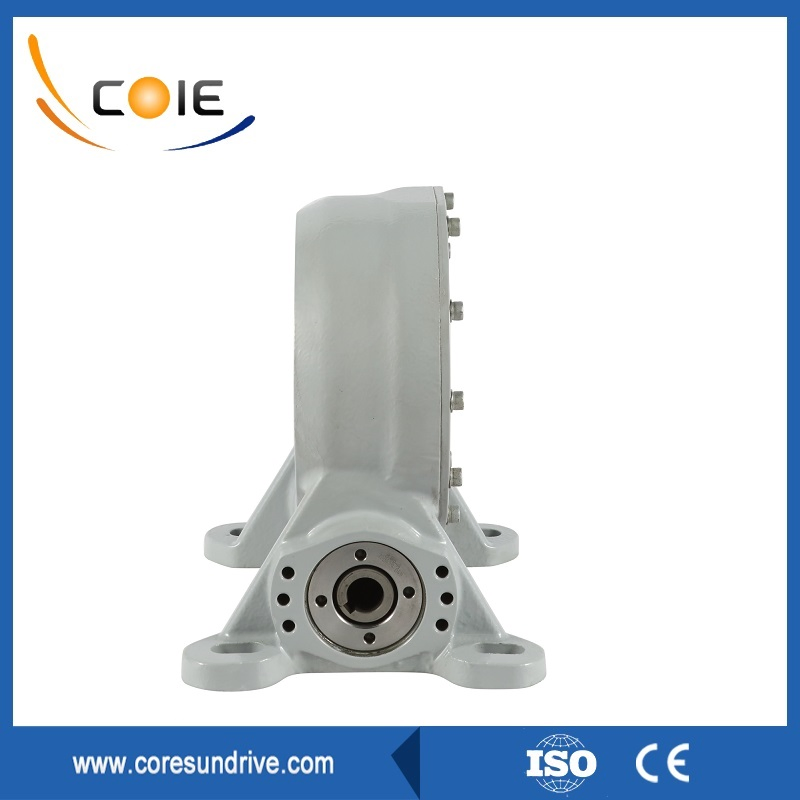

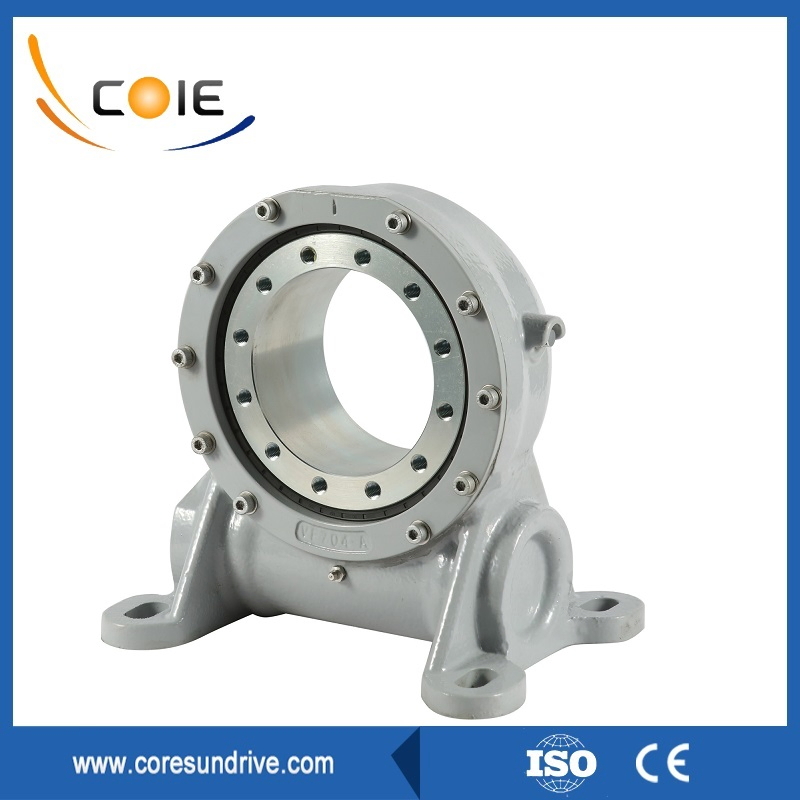

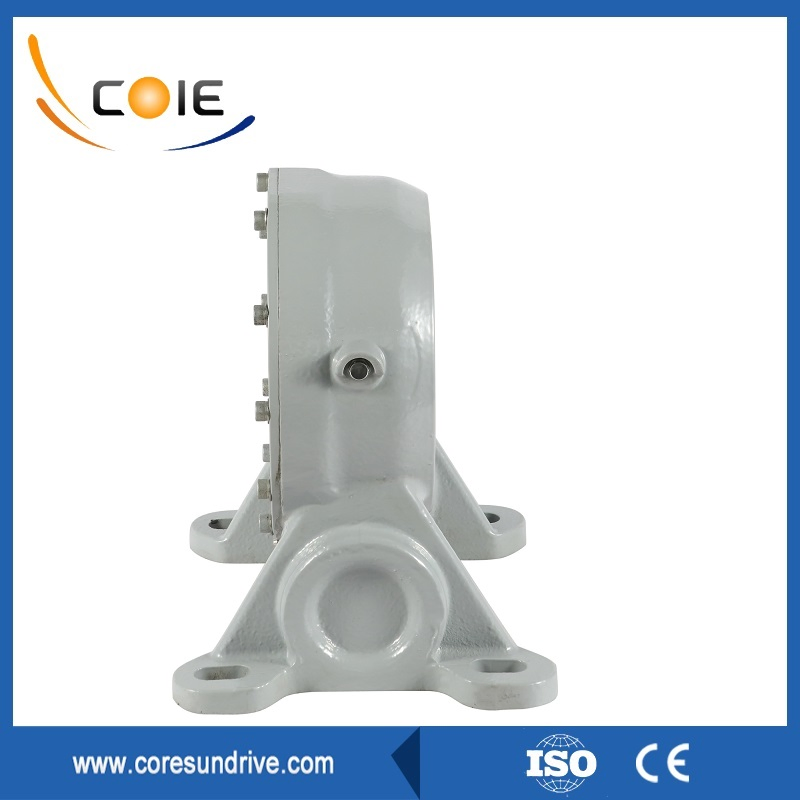

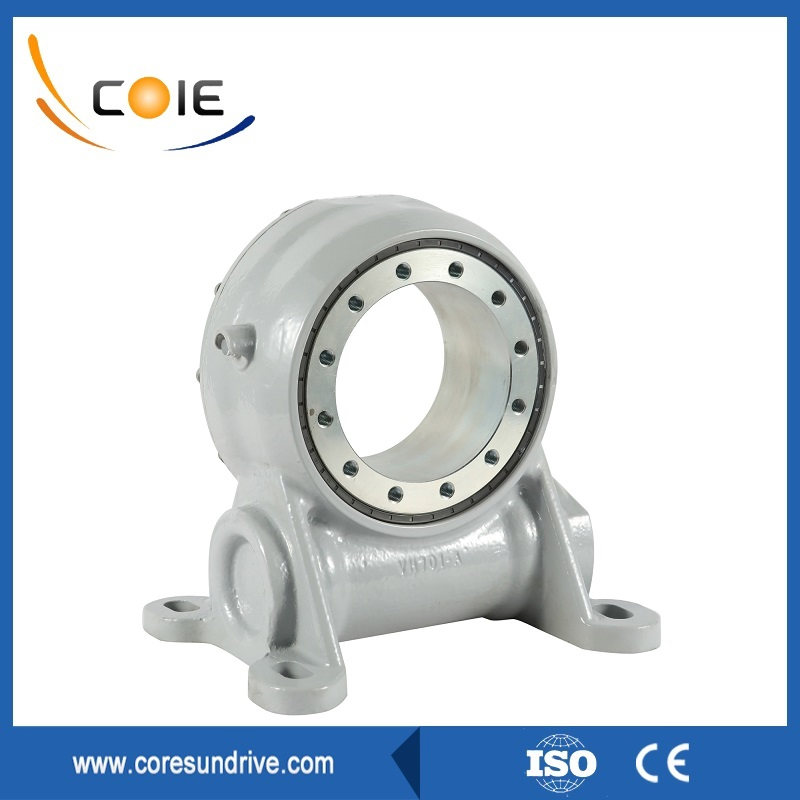

VH7 Slewing Drive for 60-80 Panels Solar Tracker System

This single-axis independent tracking system adopts a slew-drive design to enlarge the tracking angle. Featuring multiple innovations, including dual-output torque tube interfaces and integrated mounting flanges for direct post attachment, it ensures lower costs and more efficient installation.

Type	Vertical	Material	42CrMo, 50Mn
Output Torque	6.3KN.m	Tilting Moment Torque	10KN.m
Holding Torque	45KN.m	Static Axial Rating	350KN
Static Radial Rating	120KN	IP Rating	IP65
Motor Options	24VDC, 220VAC, or 380VAC	Gear Ratio	60:1
Efficiency	40%	Application	Solar Tracker

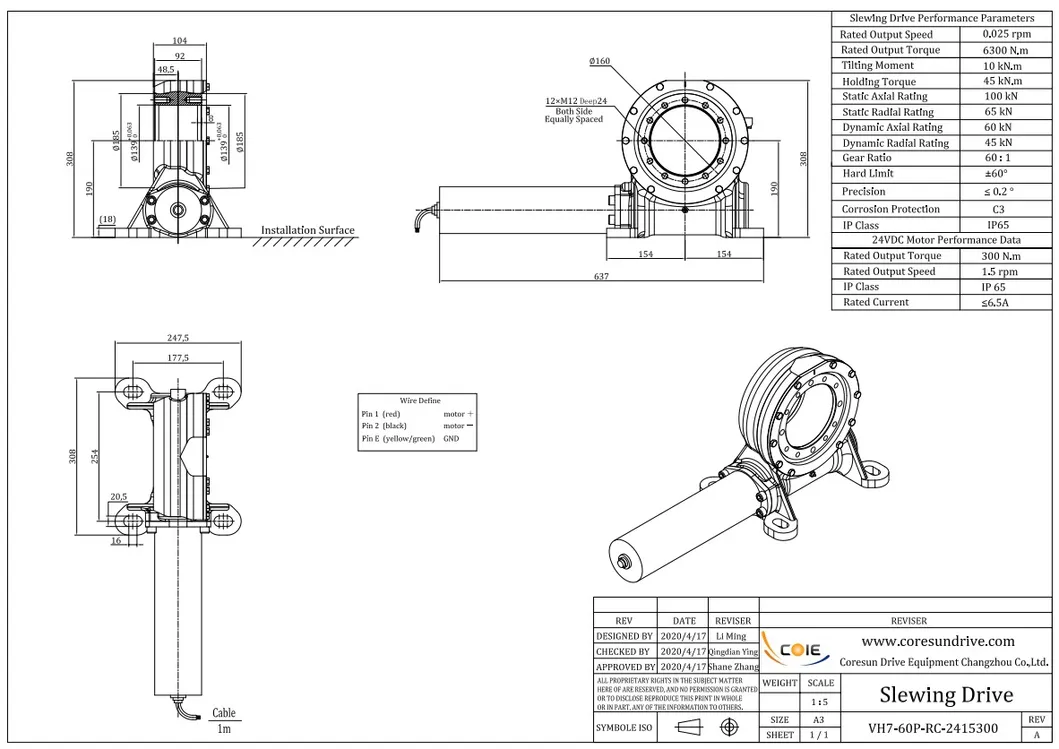

VH7 Technology Specification

Our mechanical actuators are designed for horizontal single-axis and dual-axis photovoltaic tracking systems, CSP, and CPV solar tracking. They also serve as steady solutions for aerial working platforms, truck cranes, drilling rigs, and automated assembly lines.

A single-axis solar tracker improves solar output by approximately 25%, while a dual-axis tracker can improve it by around 40%. This system is designed to point panels directly at the light source based on precise measurements.

VH Series Features

Optimized for single-axis photovoltaic trackers
Integrated raceway and internal hard stops
Segmented gear and self-locking gearset
Customizable input, output, and mounting
Available with or without a motor

Application Advantages

Simplified vertical structure reduces overall system costs.
Electrostatic powder spraying for superior corrosion resistance (1000h salt spray test).
Hardened raceway and gear teeth for high rigidity.
Service life designed for up to 25 years.
Self-locking function for enhanced safety.
Transmission accuracy reaches 1mrad.

Maintenance-free principle for minimal operational cost.
Higher load and overturning moment capacity than market standards.
Strong temperature resistance via rigorous high/low temp testing.
Uses graphene synthetic grease for superior heat dissipation.
Hourglass worm design for multi-tooth contact and large torque.

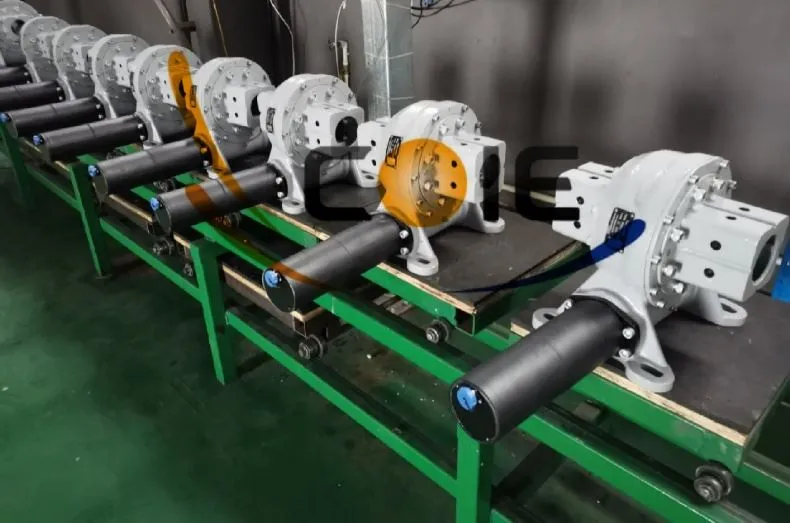

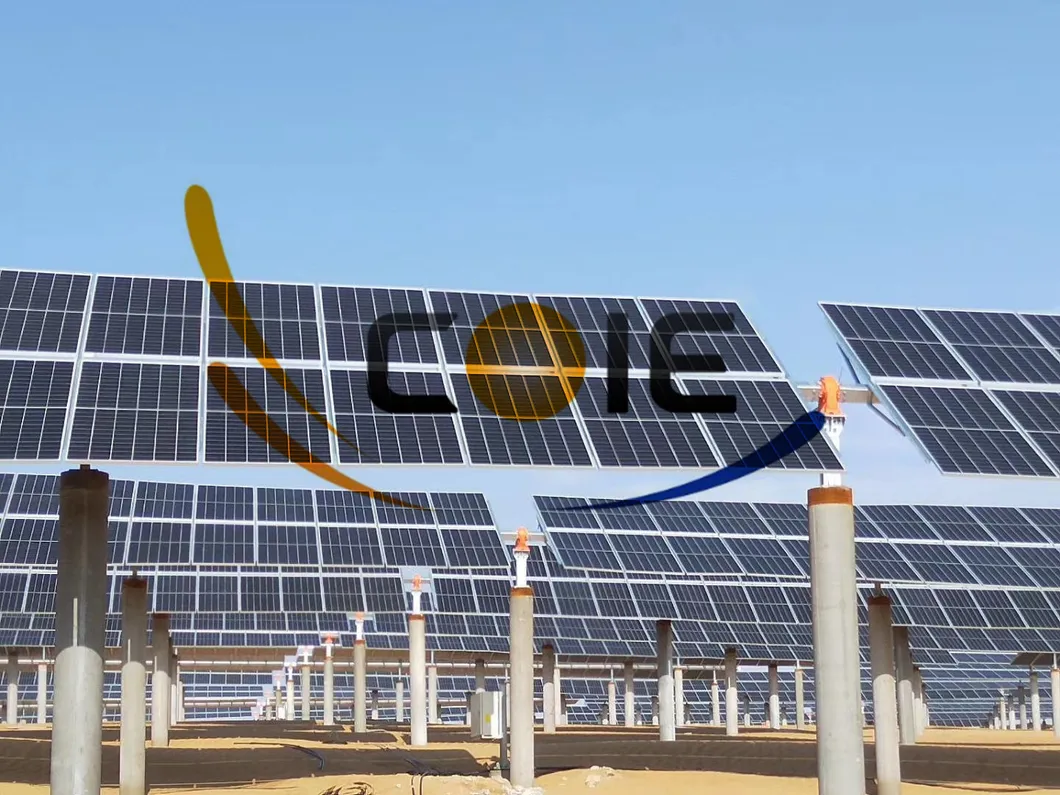

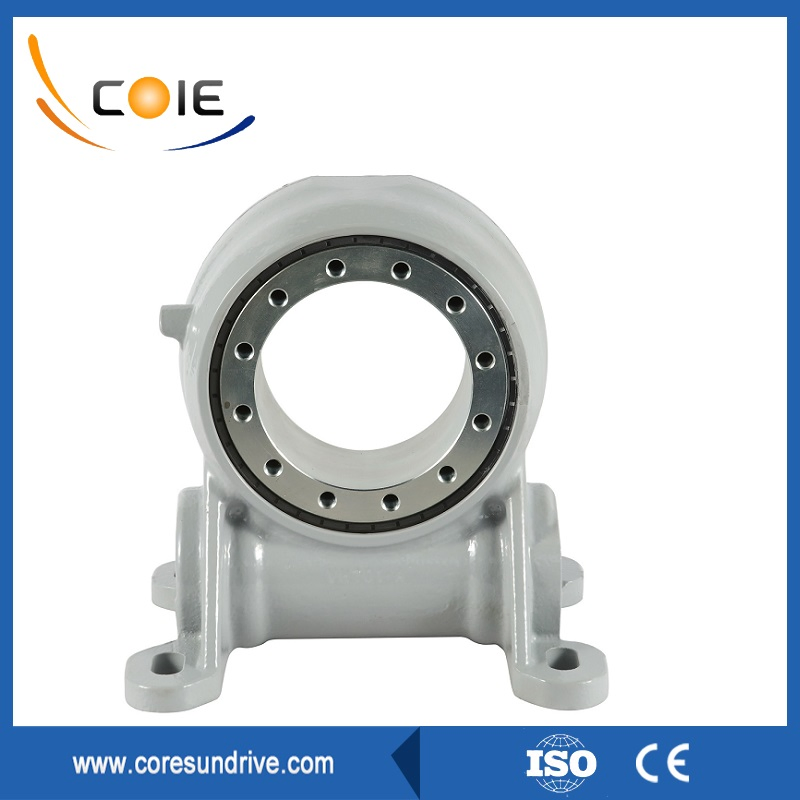

Products Photo & Application

The VH7 is a specialized solution for 60-90pcs single-axis solar tracker designs. Every unit undergoes 100% testing on dimensions, materials, and performance to ensure reliability.
