Space-Saving Drive-in Rack with Drive-in Shelving, Ideal for Heavy Storage

Customization:	Available
After-sales Service:	Yes
Warranty:	0

Send Inquiry

Product Description

📊

Basic Info.

Model NO.

SN46126

Device Depth

1,000 mm-3,500 mm

Dead Weight

1,300 Kg-5,500 Kg

Access Port

1 or More

Safety Protection

Safety Light Curtain

Password/Fingerprint/Face

Transport Package

Packing

Specification

W4450*D2090*H5000

Trademark

QDITC

⚙️

Product Description

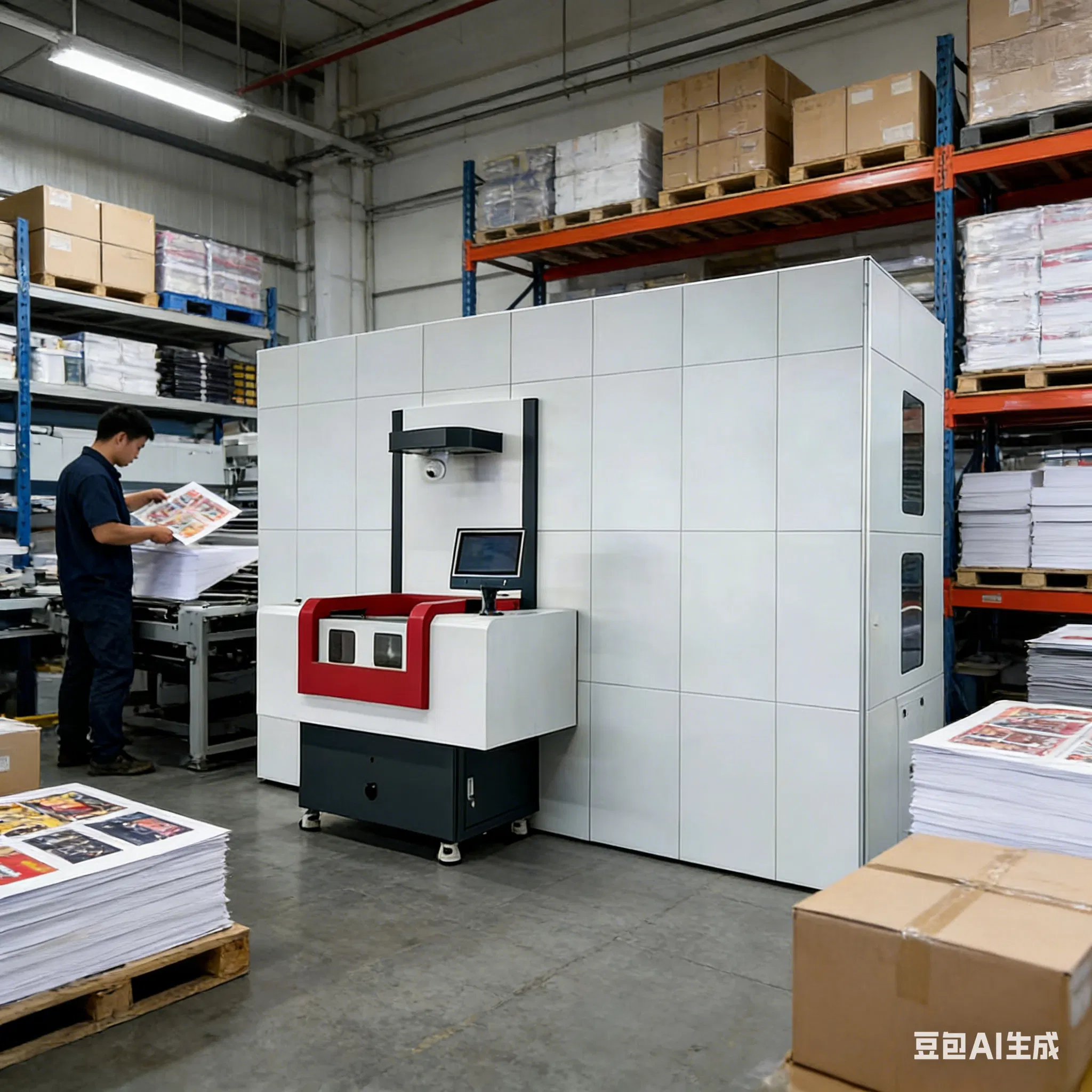

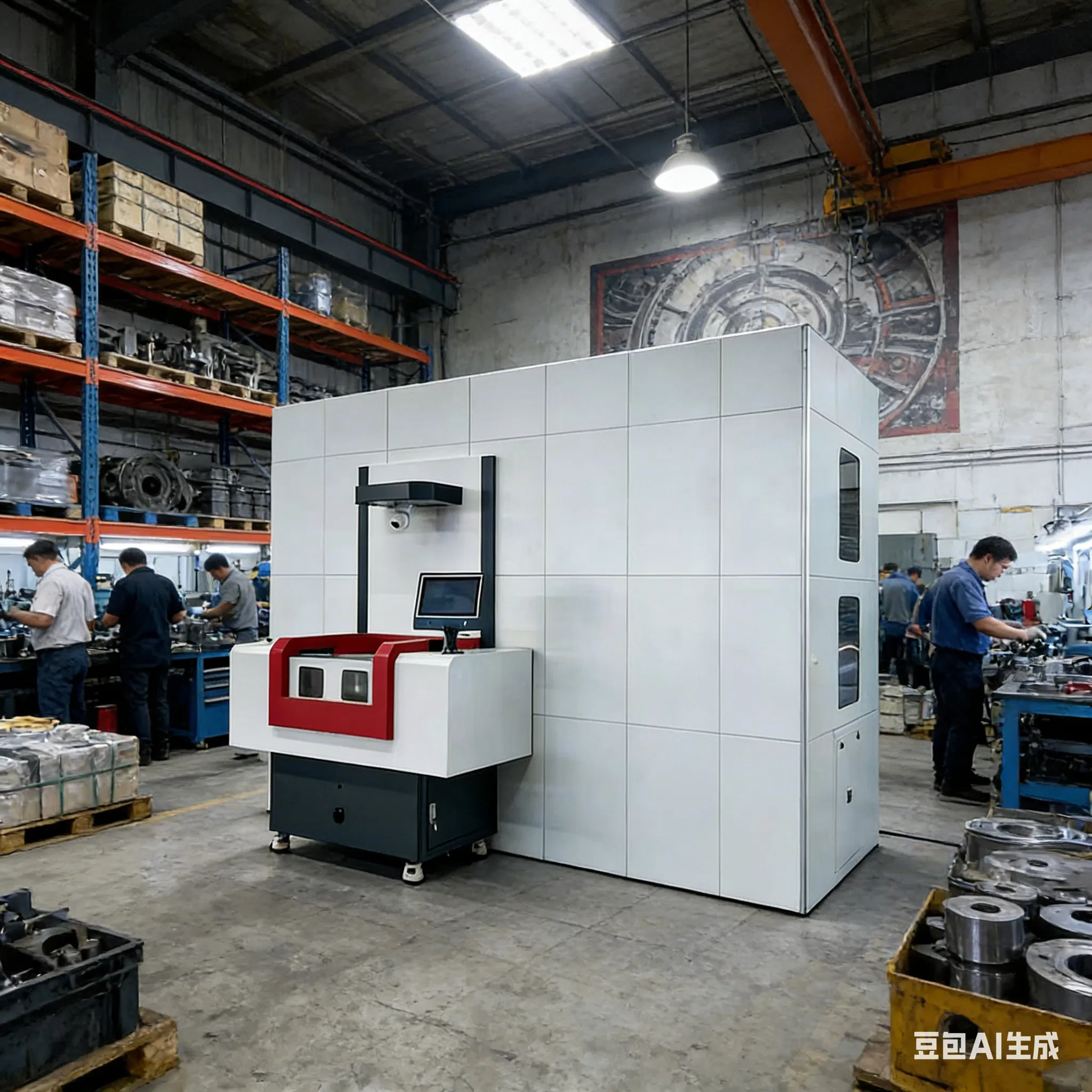

Versatile Vertical Sort Module accurately reads material signals and achieves horizontal movement via a platform's synchronous belt, enabling efficient material handling and storage.

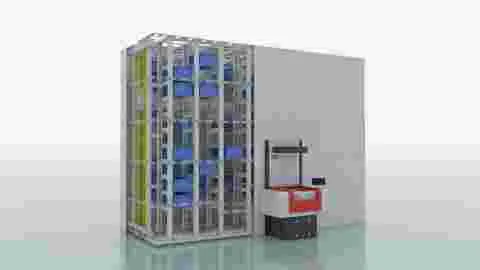

The system includes a main frame, panel, power mechanism, movement fork, entrance/exit, touchscreen, and signal reader. It enables rapid vertical container movement with a motor-driven belt for optimal warehouse space utilization.

Application Scenarios

Cutting Tools, Tool Holders, Tools, Molds (CNC tool storage)
Spare Parts (Small, precise materials in precision equipment manufacturing)
Miniaturized Samples, Finished & Semi-finished Products (Pharmaceuticals, cosmetics, reagents, etc.)
Semiconductors, PCB, Electronic Components (Circuit breakers, relays, PLCs, etc.)
Labor Protection Supplies (Supports disinfection for intelligent storage)
Other materials stored in standard carriers

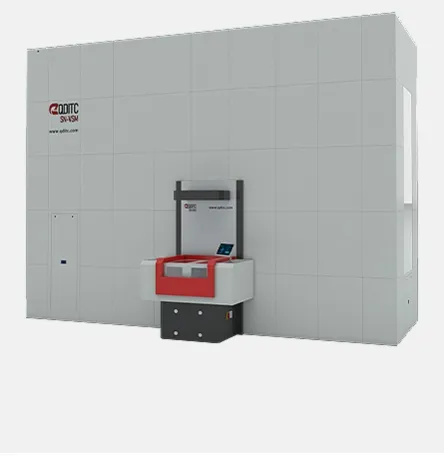

Right Elevation

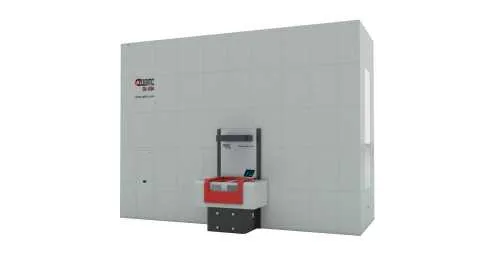

Left Elevation

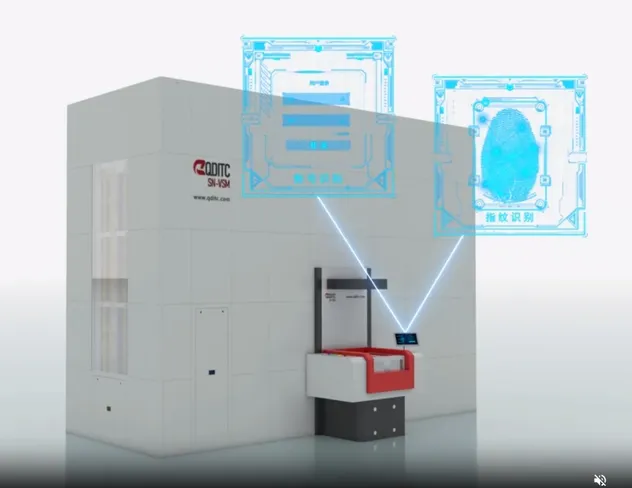

Front Elevation

📋

Technical Specifications

(Custom configurations available upon request.)

Model	SN46066	SN46069
Device dimensions	W: 4,450 mm, D: 2,090 mm, H: 3,000 mm	W: 6,220 mm, D: 2,090 mm, H: 3,000 mm
Storage Quantity	71	107
Box size	W400D600H230 mm	W400D600H230 mm
Rated load	50KG	50KG
Rate of climb	2.0 m/s	2.0 m/s
Horizontal velocity	1.0 m/s	1.0 m/s

🏢

Automated Warehouse Integration

Our core expertise lies in high-tech automated storage solutions designed for manufacturing, trade, and logistics:

VLM (Vertical Lift Storage System)
VCM (Vertical Carousel Storage System)
VSM (Vertical Sorting Storage System)
IHSM (Intelligent Horizontal Sorting Storage System)
Intelligent Smart Stacking Warehouse (Smart AS/RS)
AGV/RGV Automated Guided Vehicles

❓

FAQ

Q: What solutions do we provide? We specialize in automated warehouse integration, including systems like VLM, VCM, VSM, IHSM, Smart AS/RS, and AGV/RGV.

Q: What are the main applications of these storage systems? They are primarily used for storing tools, spare parts, electronic components, medical drugs, important documents, and magnetic media across industries like aerospace, machinery, medicine, and automotive.

Q: What is the typical lead time for orders? For small quantities, the lead time is approximately 60 days. New or customized items may require up to 90 days. Delivery time is confirmed upon order placement.

Q: What are the payment terms? Our terms are typically 50% advance payment to activate the contract, 45% pre-shipment payment, and 5% acceptance payment within 10 days of on-site installation.

Q: Why choose our intelligent storage technology? We prioritize innovation and service, utilizing state-of-the-art equipment and technical prowess to help customers succeed in evolving marketplaces.

Q: Are custom configurations available? Yes, we provide custom configurations based on specific technical requirements and warehouse space constraints.
