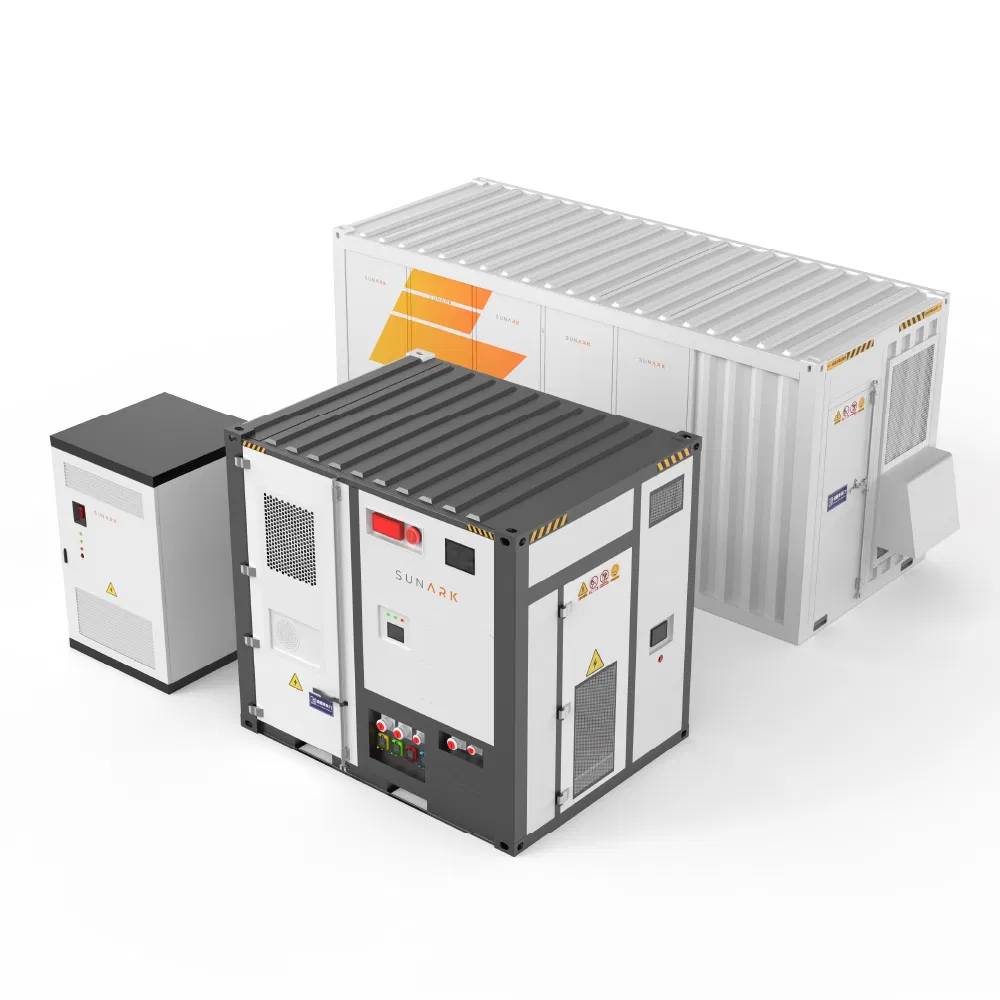

Sunark High Energy Density Container Battery Storage 100kwh 150kwh 200kwh Commercial Energy Storage Systems China Market

1 / 5

Sunark High Energy Density Container Battery Storage 100kwh 150kwh 200kwh Commercial Energy Storage Systems China Market

Customization:	Available
Application:	Liquid Cooling Container Energy Storage System
Rated Charge/Discharge Performance:	0.5c/1c

Send Inquiry

Product Description

Basic Info.

Model NO.

100-215KWH

Nominal Voltage [V]

768-1331.2

Cell Rated Capacity [Ah]

280

Rated Grid Frequency [Hz]

50/60

Power Factor

>0.99

DC Component

<0.5% in

Ingress Protection

IP54

Communication

Can, RS485

Dimension (W*D*H) [mm]

1400*1400*2200

Transport Package

Carton with Pallet

Specification

100-215kwh

Origin

Anhui

Product Description

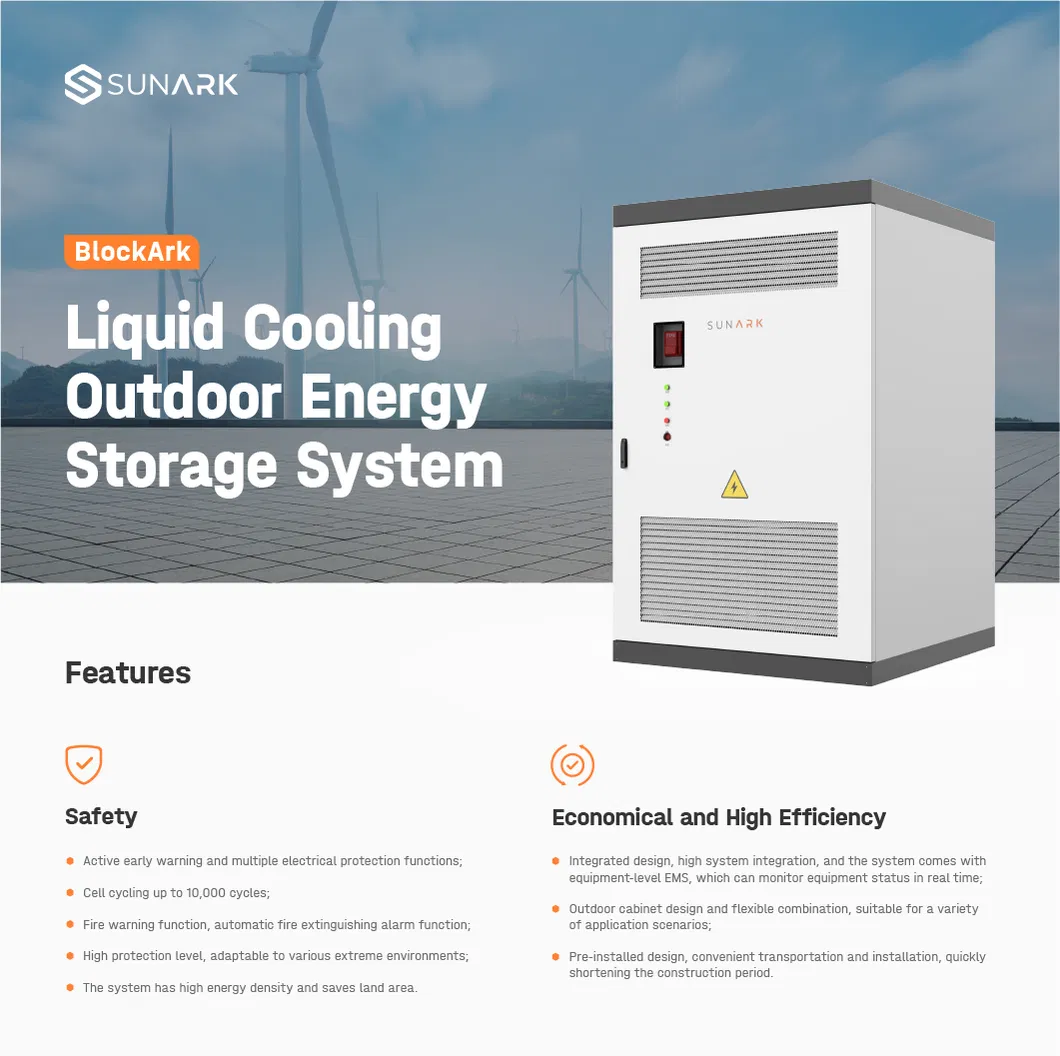

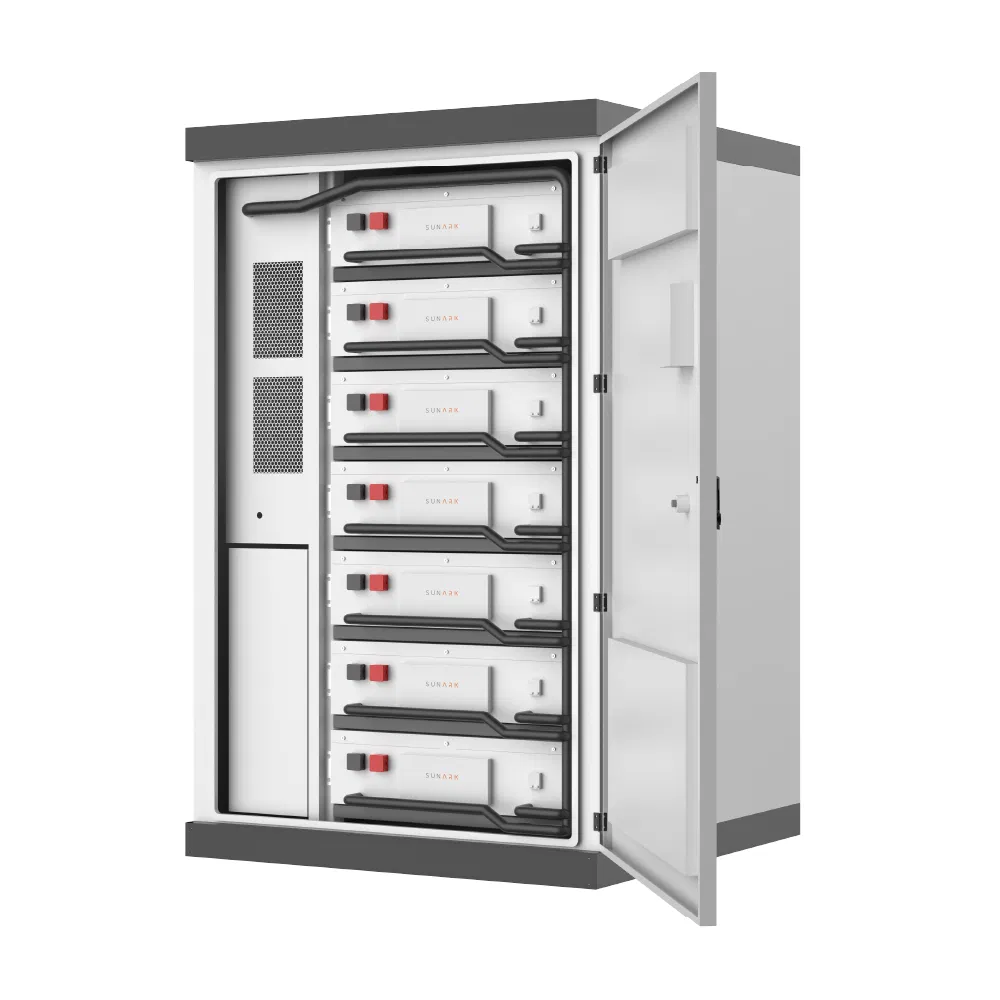

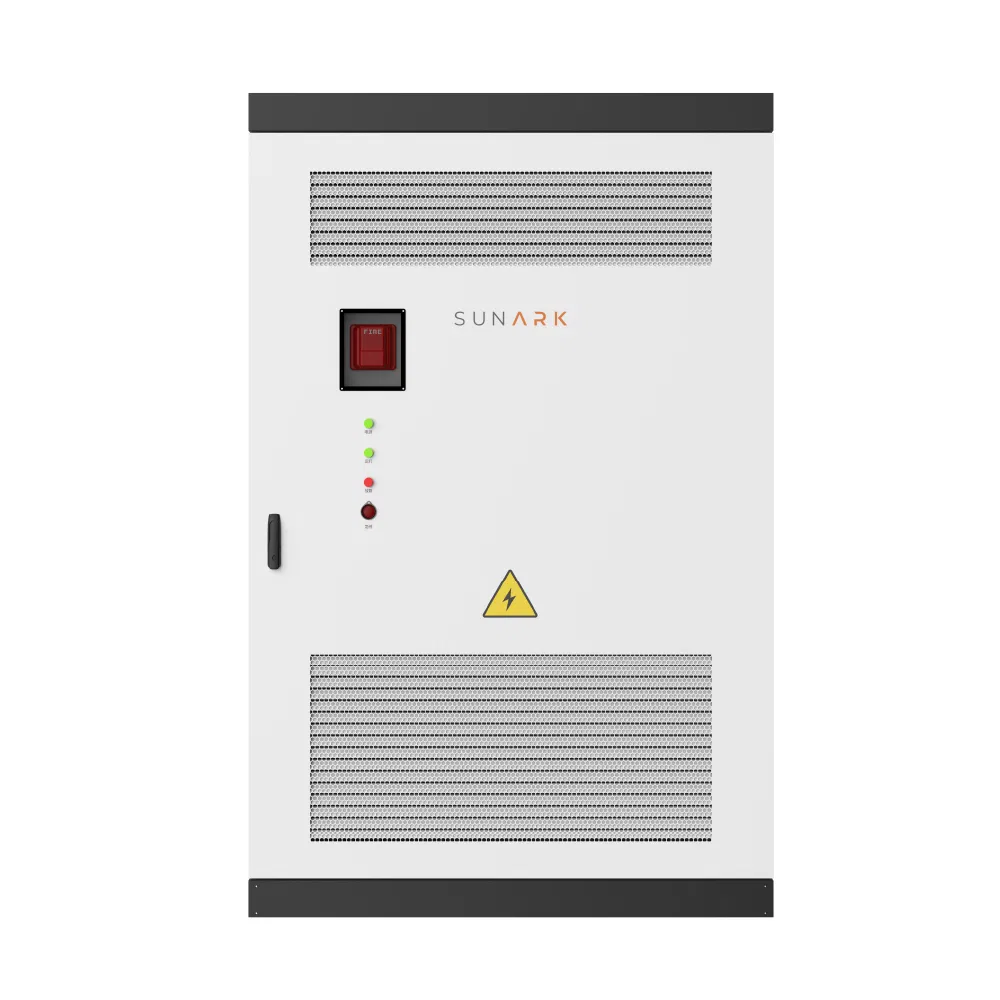

High Energy Density Container Battery Storage

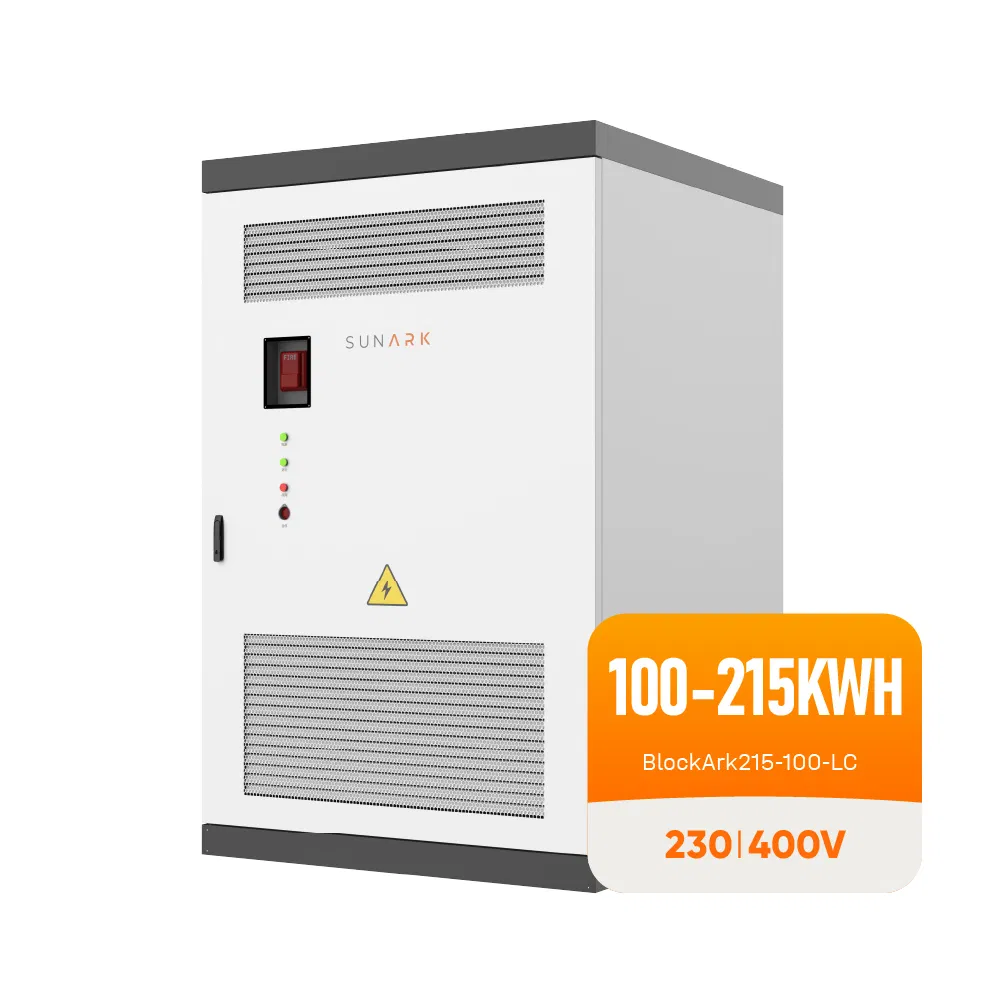

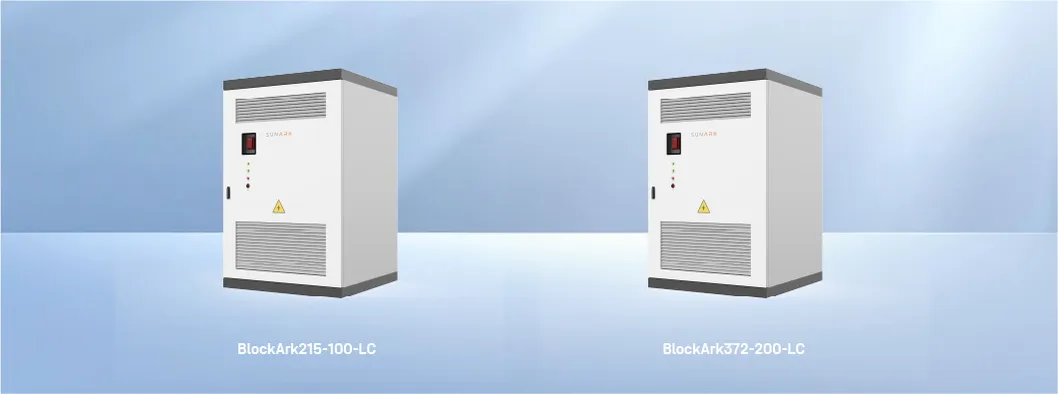

MODULE	BlockArk215-100-LC	BlockArk372-200-LC
Battery Type	LiFePO4
Nominal Voltage [V]	768	1331.2
Nominal Capacity [kwh]	215.04	372.73
Rated Output Power [kw]	100	200
Rated Grid Voltage [V]	3/N/PE, 230/400	3/PE, 690
Ingress Protection	IP54
Cooling Method	Liquid cooling system
Fire Fighting System	Yes
*Dimension (WDH) [mm]*	1400×1400×2200	1400×1300×2350

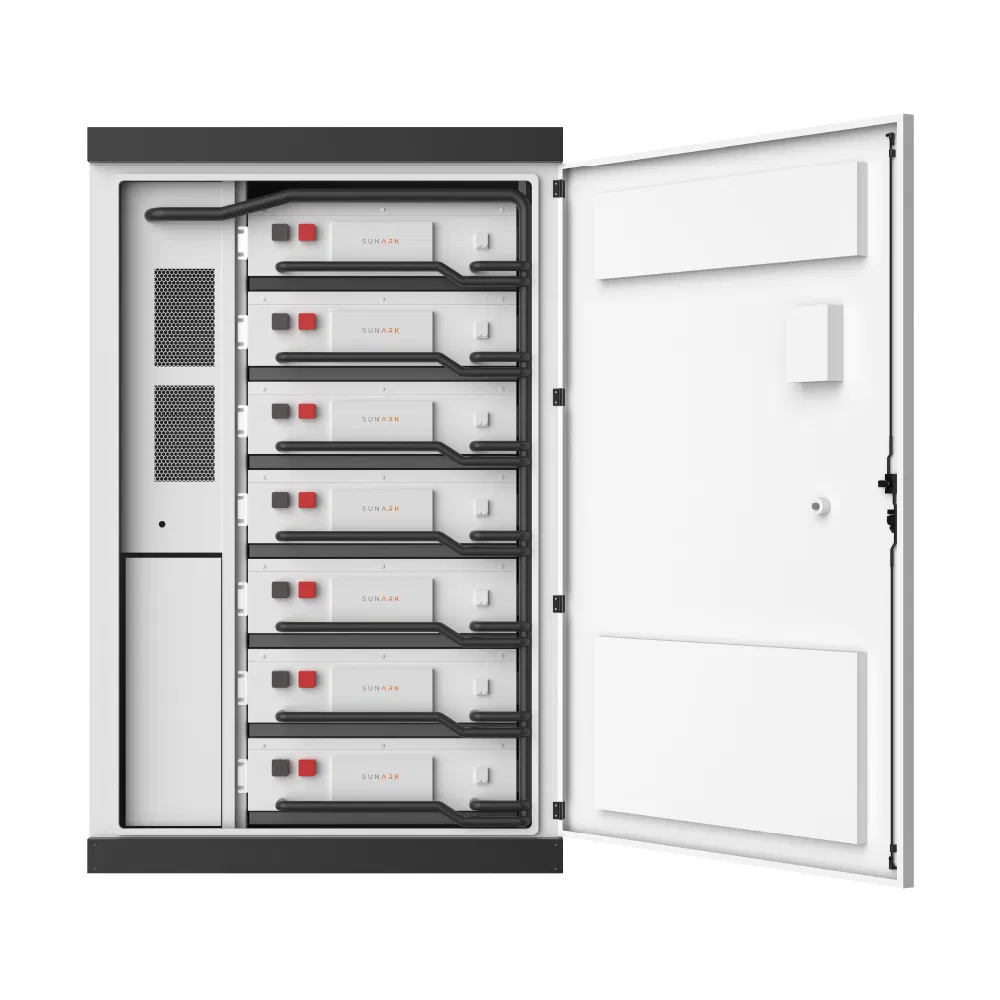

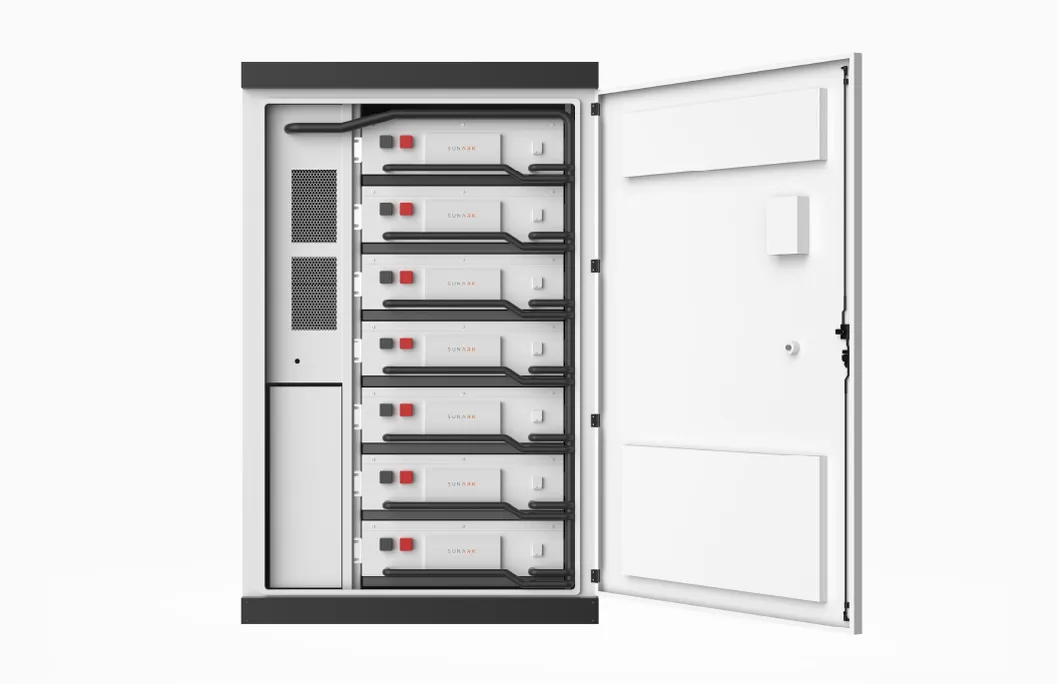

Product Detail

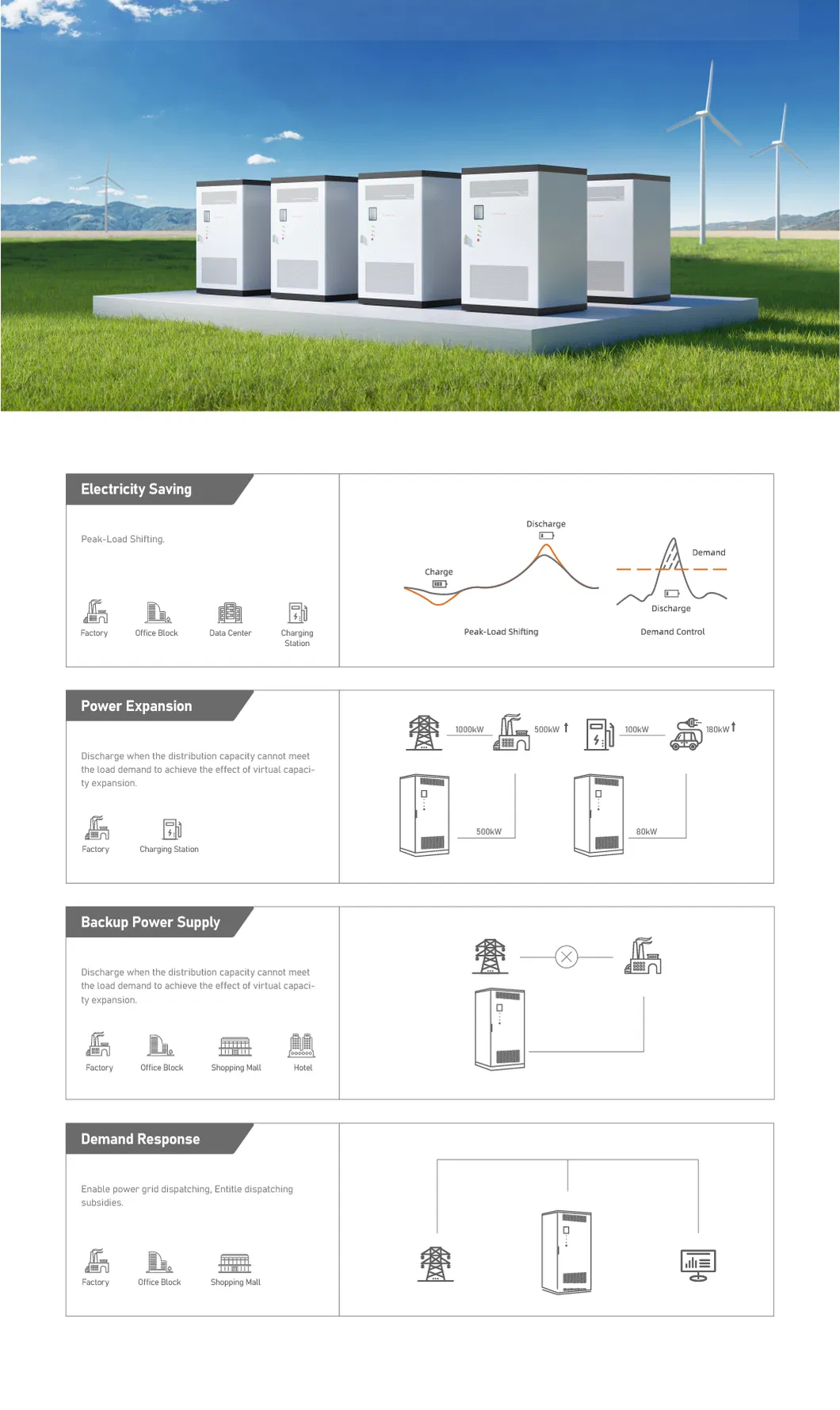

Applications

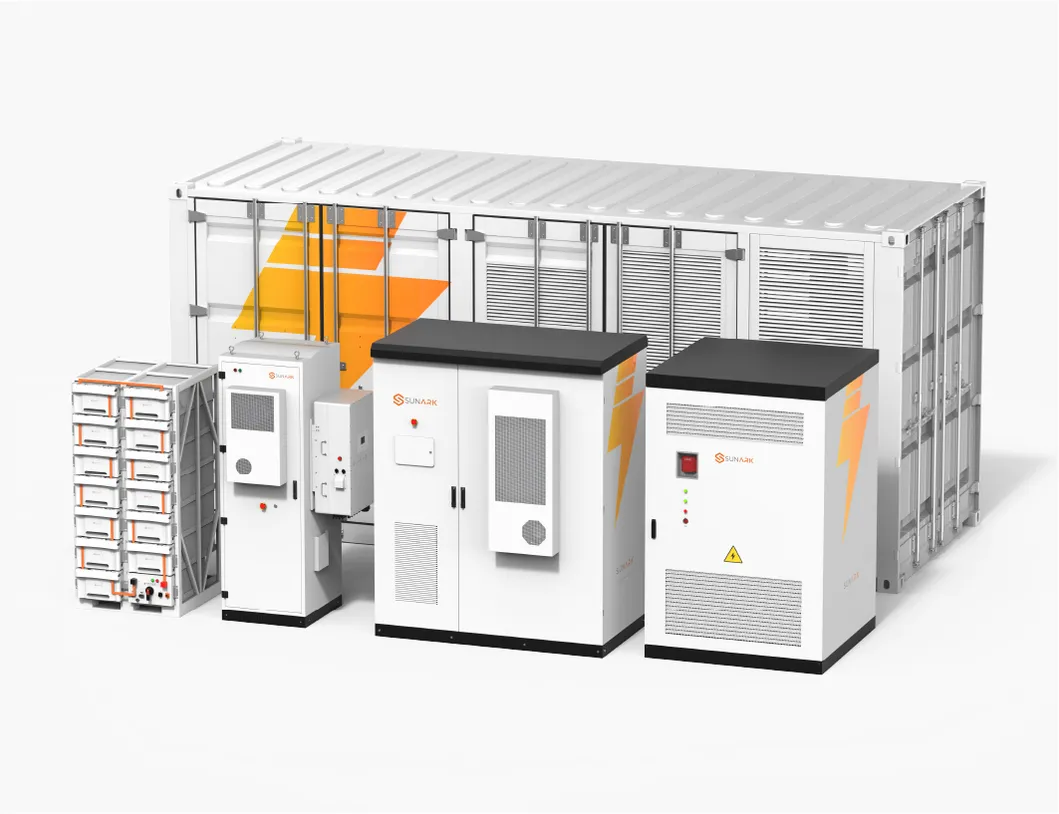

Products Series

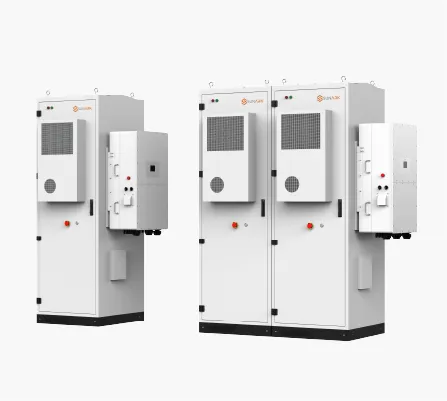

WallArk Series

Wall Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 2.5kWh/5kWh/10kWh/15kWh

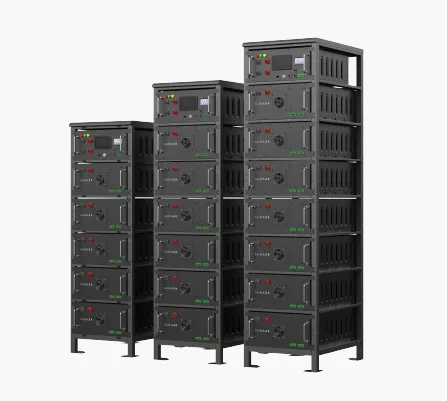

StackArk Series

Stackable Low Voltage & High Voltage
Pack Voltage: 51.2V/129.6-561.6V
Capacity: 5kWh~30kWh

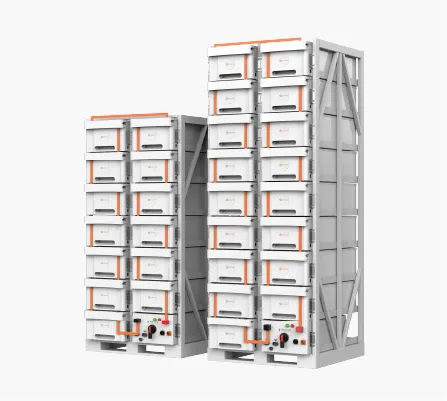

RackArk Series

Rack Mount Low Voltage Pack
Voltage: 48V/51.2V
Capacity: 50/100/150/200Ah

GroundArk Series

All In One Energy Storage System
Power: 3-12kW
Battery Capacity: 5-45kWh

EasyArk Series

Portable Power Station
Power: 200-3000W
Battery Capacity: 200-3000Wh

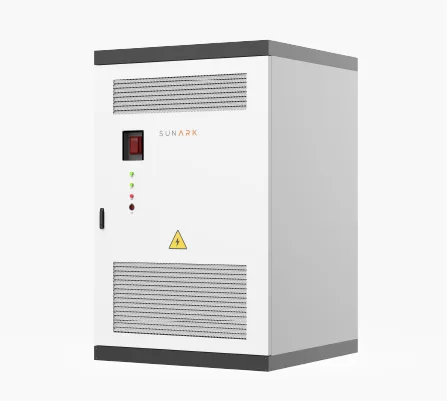

BlockArk Series

High Voltage Cabinet Energy Storage System
Voltage: 230V/400V
Inverter Power: 50kw/100kw
Battery Capacity: 105kwh/200kwh/215kwh

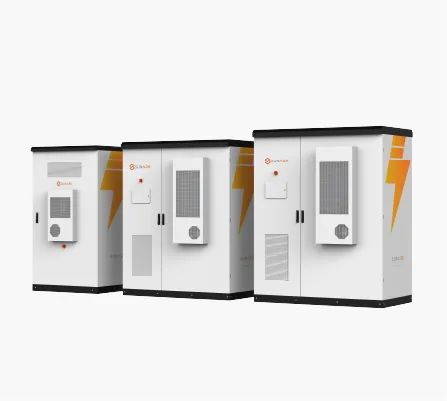

LFP Series

Lead Acid Replacement Solution
Voltage: 12V/24V/48V
Battery Capacity: 5-400Ah

Industry Certifications

Frequently Asked Questions

What type of battery technology is used in these storage systems?

The systems utilize high-quality LiFePO4 (Lithium Iron Phosphate) cells, known for their safety, long cycle life, and thermal stability.

How does the liquid cooling system benefit the battery life?

Liquid cooling ensures uniform temperature distribution across all cells, preventing hot spots and significantly extending the operational lifespan of the battery modules.

Are these systems suitable for outdoor installation?

Yes, the systems are designed with an IP54 ingress protection rating, making them suitable for various environmental conditions and outdoor commercial installations.

What safety features are integrated into the container storage?

Every unit is equipped with a comprehensive fire-fighting system, real-time monitoring via RS485/CAN communication, and built-in protection against overcharge, over-discharge, and short circuits.

Can the system be monitored remotely?

Absolutely. Using Modbus or IEC104 protocols via RS485/CAN communication, the system can be integrated into existing Energy Management Systems (EMS) for remote monitoring and control.

Is the output power factor adjustable?

Yes, the power factor is adjustable from 0.9 leading to 0.9 lagging, providing flexibility for different grid requirements and load types.
