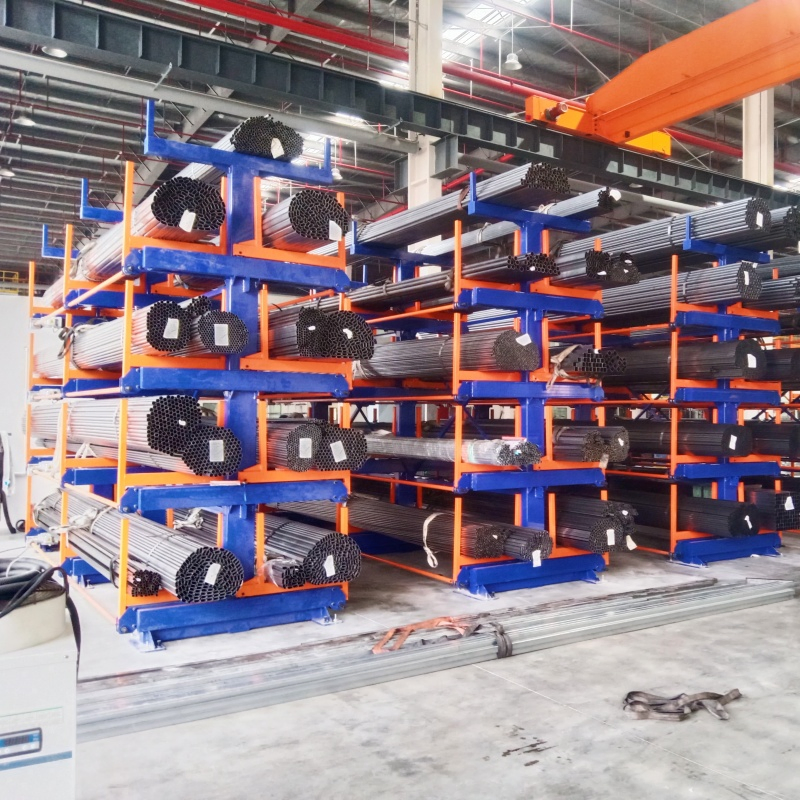

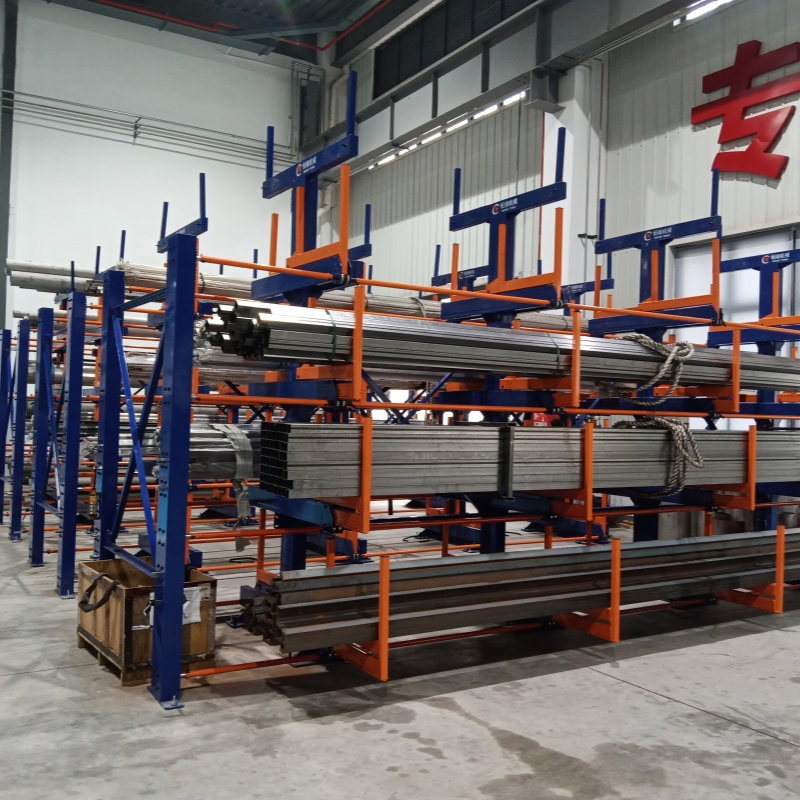

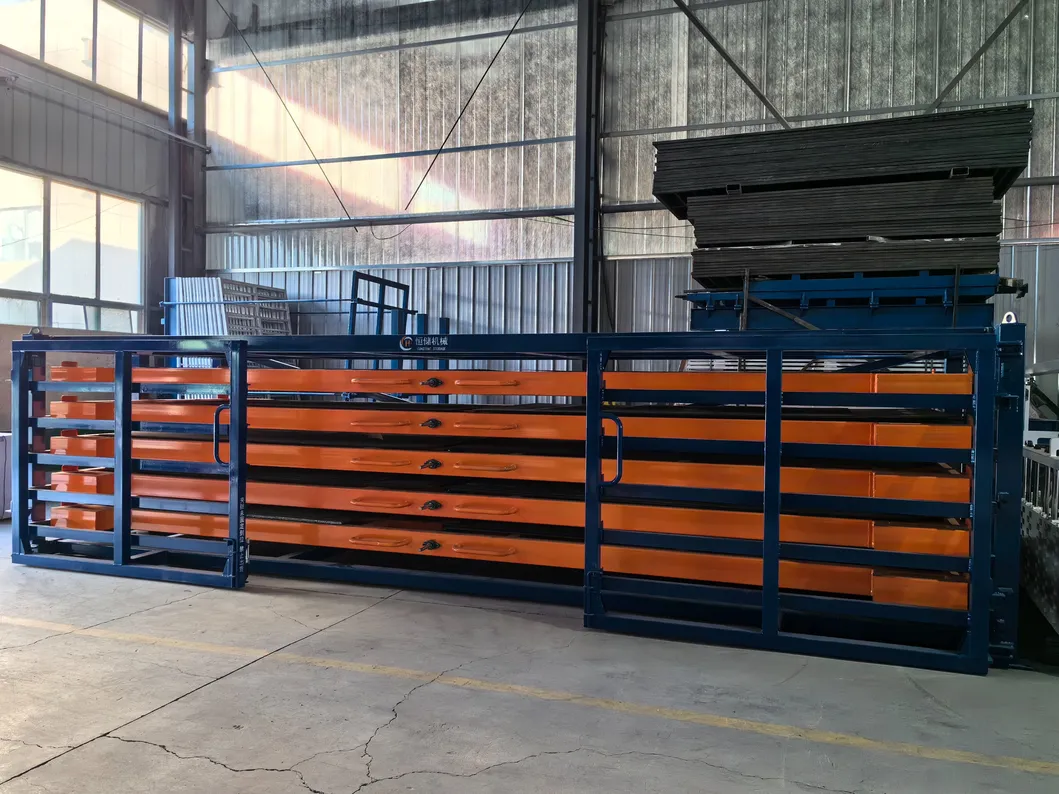

Space Saving Telescoping Cantilever Racking System

1 / 5

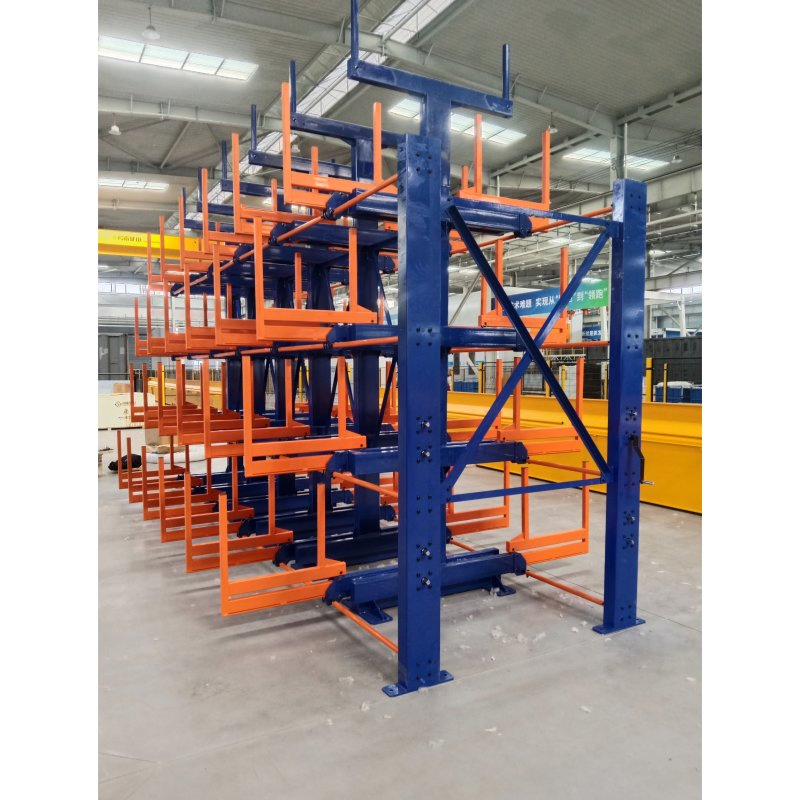

Space Saving Telescoping Cantilever Racking System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specification

Model NO.HC-G6053D

UsageTool Rack, Industrial Warehouse

MaterialSteel

StructureDrawer

TypeMulti-Level Racking

MobilityAdjustable

Height0-5m

Weight Capacity500kg

Load (Single Layer)3t-15t Customizable

Plate Size mm3000-8000

Number of Layers7+1 Customizable

Movement MethodIntegrated Pull-out Type

Product Description

Standard	HC-B3015-63	HC-B4015-63	HC-B4020-65	HC-B6020-66	Customized
Load (single layer)	3t	3t	5t	6t	Customization
Plate size mm	3000x1500	4000x1500	4000x2000	6000x2000
Number of layers	5+1
External dimensions mm	3505x2280x2000	4505x2280x2000	4505x2280x2500	6505x2280x2500

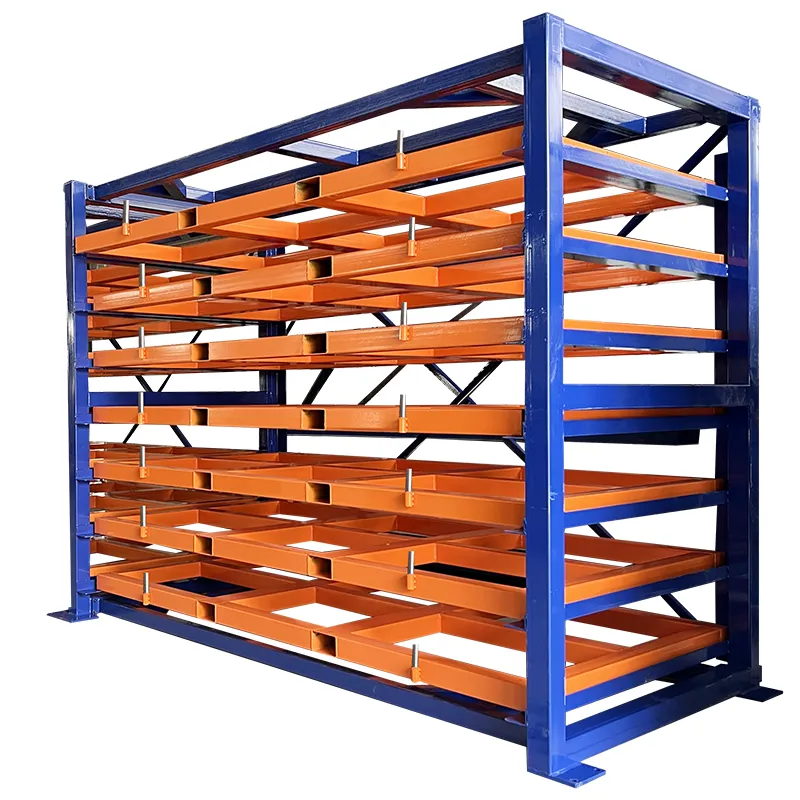

Roll out sheet metal rack is ideal for organizing and managing your sheet metal well, such as steel sheets, Aluminum, Plates, Flat products, and tools. It optimizes your vertical and floor space, improves work efficiency and creates a safe work environment.

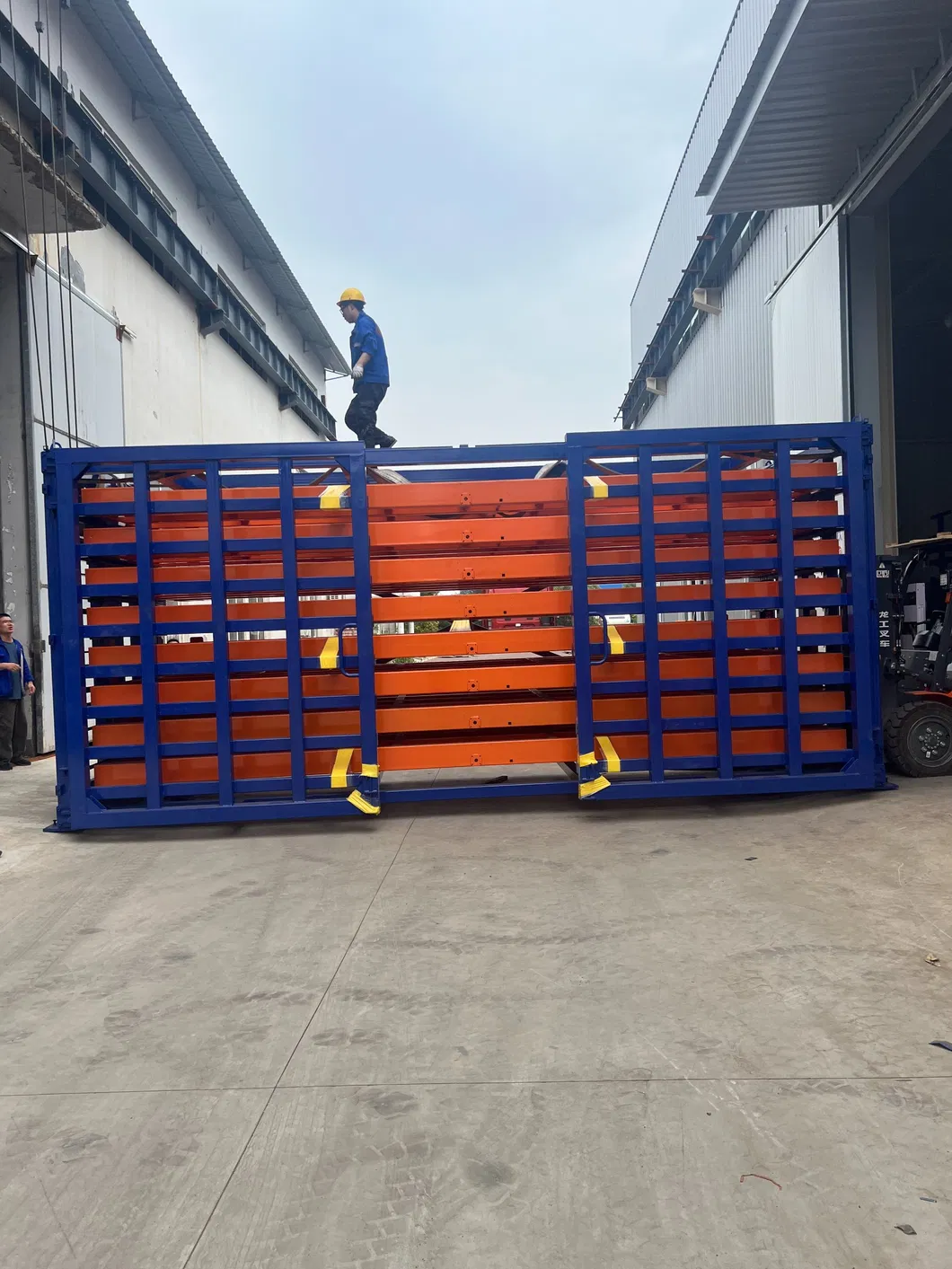

Key Features

1Increase storage density and use more vertical space.

2Organizing steel inventory efficiently by size, type, and material.

3Heavy duty storage Equipment with max loading 5 tons per drawer.

4Each roll out drawer can be extended completely.

5Lock-in, Lock-out for each drawer for safe operation.

6Operated by lifter, vacuum, magnet, or hoist.

7Reducing material damage during handling.

8Complement laser cutting, shears, and press brakes.

Main Product Range

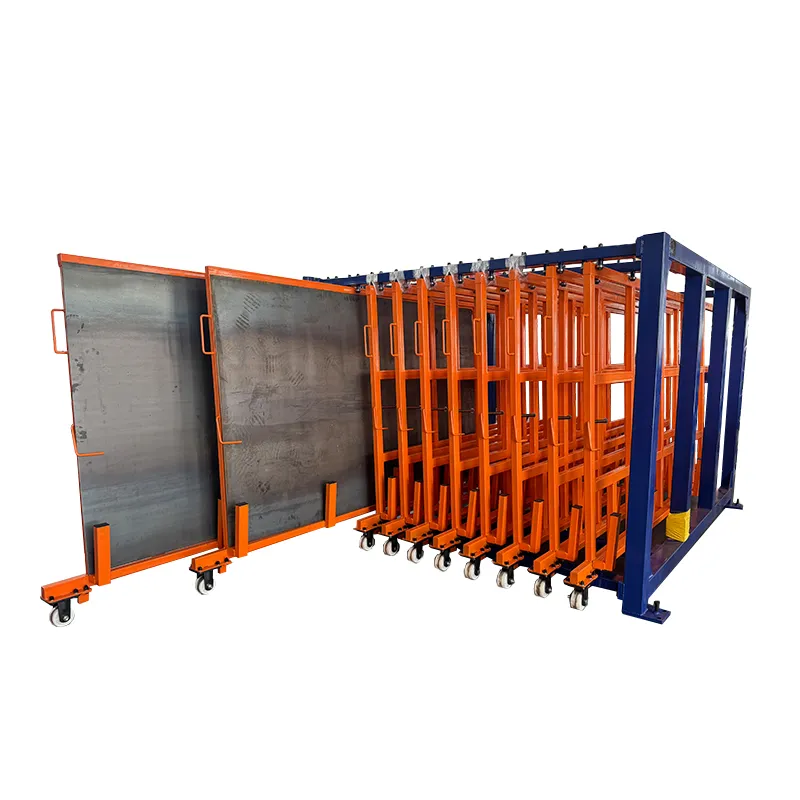

• Sheet material storage rack

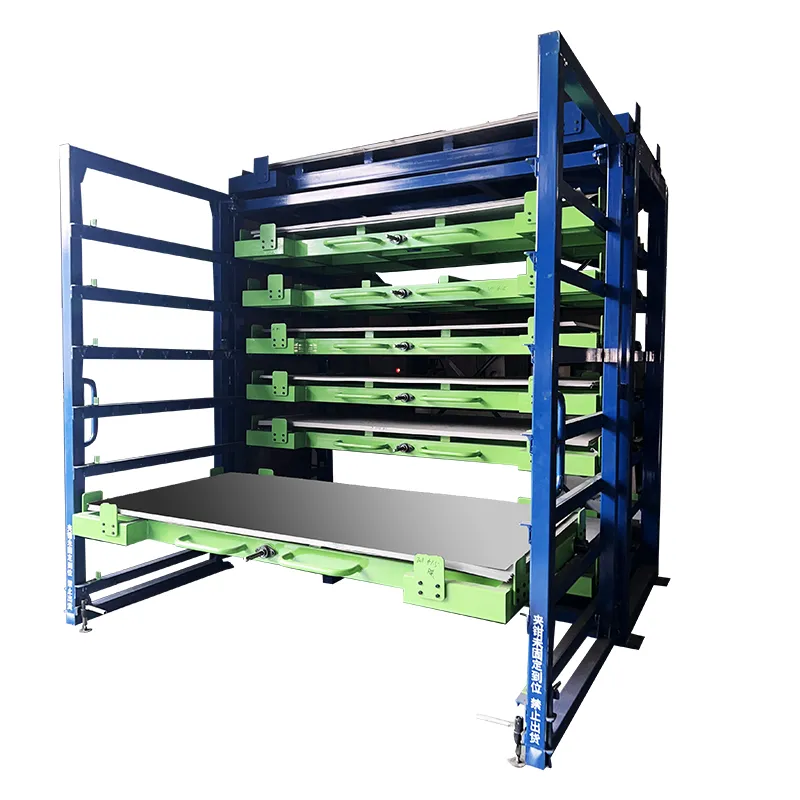

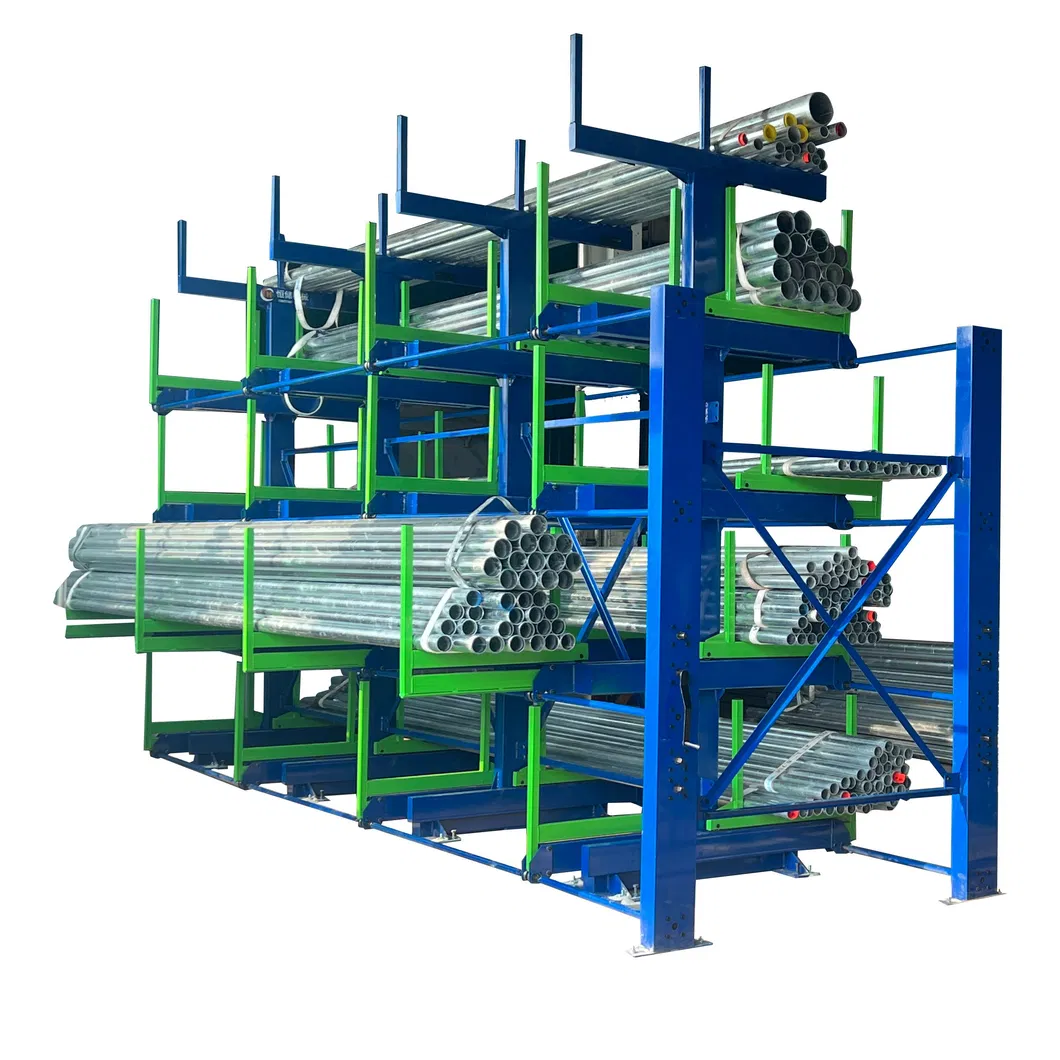

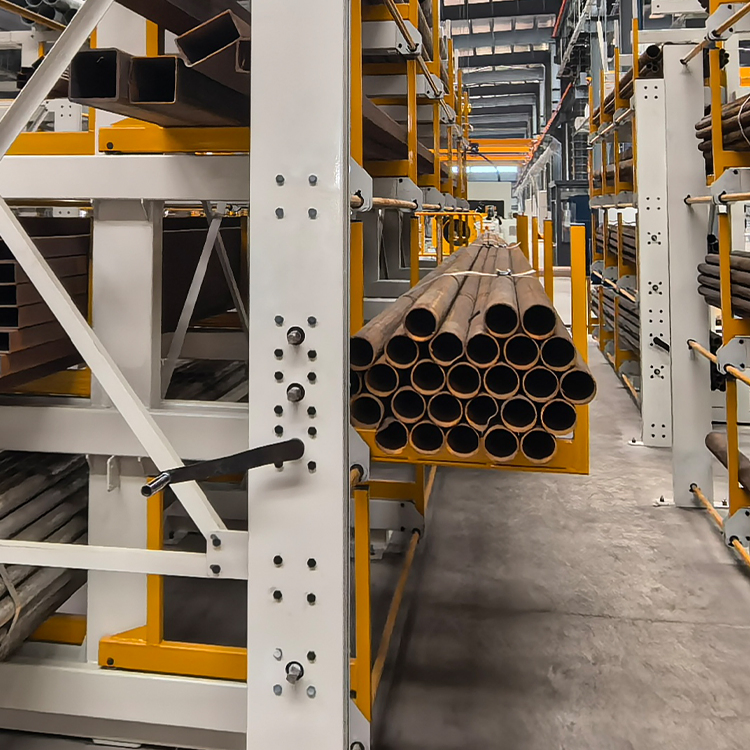

• Roll Out Cantilever Racking

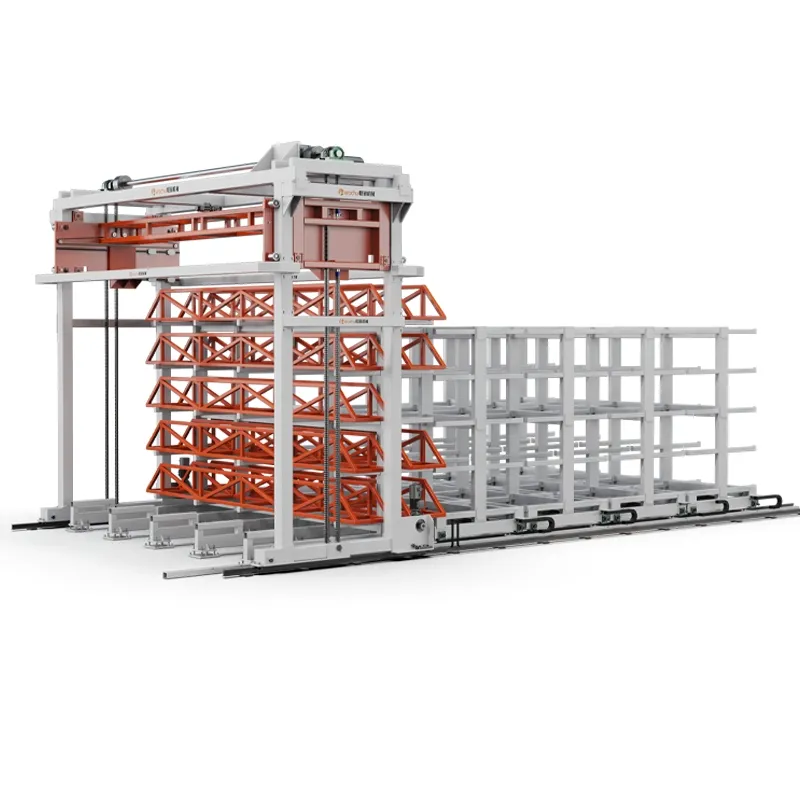

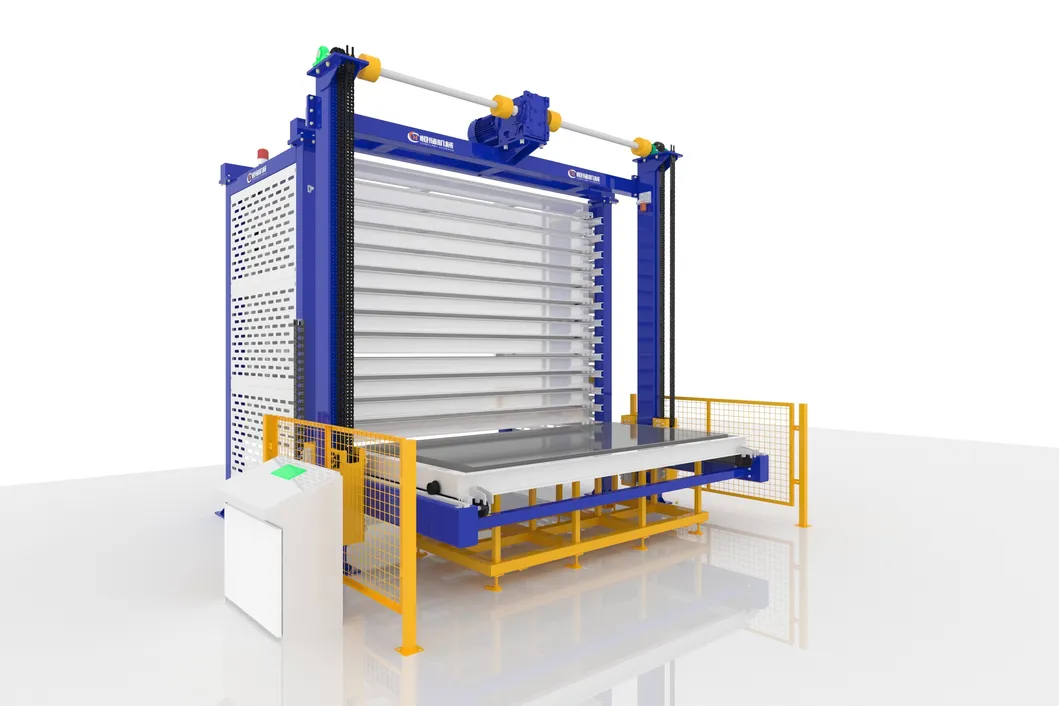

• Automatic Sheet Metal Storage System

Frequently Asked Questions

How can I proceed with procurement?

You can contact our technical personnel. We will provide a suitable technical solution and quotation based on your parameters.

How do I choose the right shelves?

Please provide details regarding the material type, size, required number of shelves, and any specific load requirements. Our team will design a professional solution for you.

What are the requirements for an integrated loading system?

Loading systems require specific laser cutting machine table dimensions. We need to know the loading method: board rack, exchange platform, or material warehouse.

Do you provide on-site installation?

Yes, we send professional personnel to your factory to install and debug equipment until successful trial operation. Our team has served global markets including the US, Russia, and more.

How do you ensure product quality?

We implement ISO9001 standards and have a dedicated quality inspection department. All equipment undergoes load testing before leaving the factory to ensure structural stability.

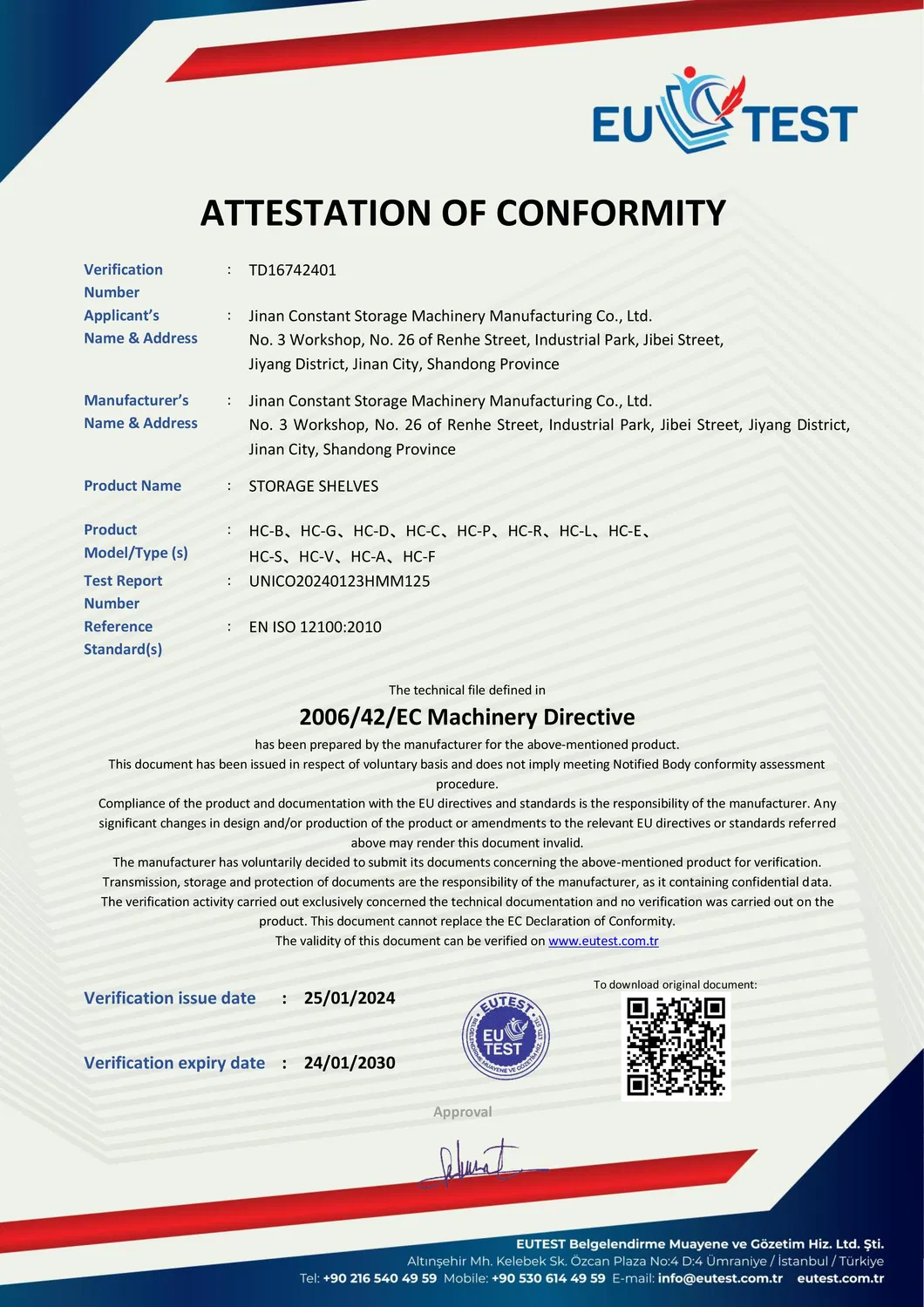

What certifications do your products hold?

Our management and products have successfully passed ISO9001 and EU CE certifications, ensuring compliance with international quality and safety standards.
