We are producing and selling: rolling ring drives, linear drives, linear drives nut, wire straightener, automatic wire straightening and cutting machine, automatic coiling & packaging machine, drawing and rolling machine, automatic yarn winding machine and accessories for rolling ring drives.

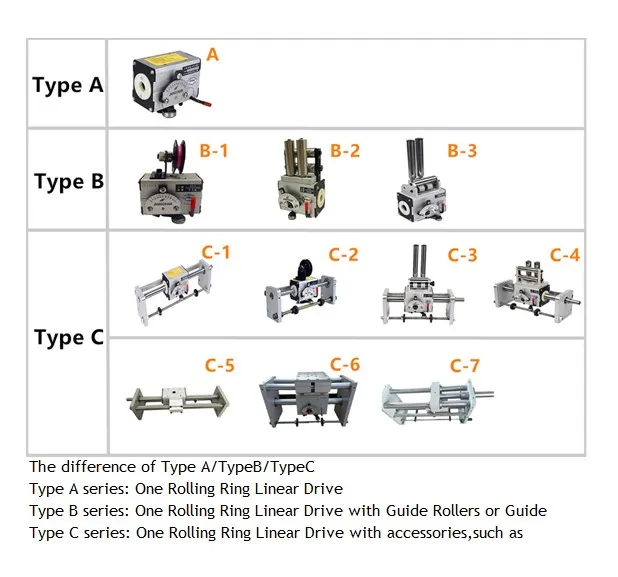

➤ A Series: Rolling ring drives Type A Series just have one Rolling Ring linear drive, which are divided into eight types according to the diameter of the shafts. Our products are widely used in wire, steel wire, electrical wire, cable, textile industry, etc.
➤ B Series: Rolling ring drives Type B Series just have One Rolling Ring linear drive with Guide Rollers or Guide Wheel, which are divided into six types according to the diameter of the shafts.

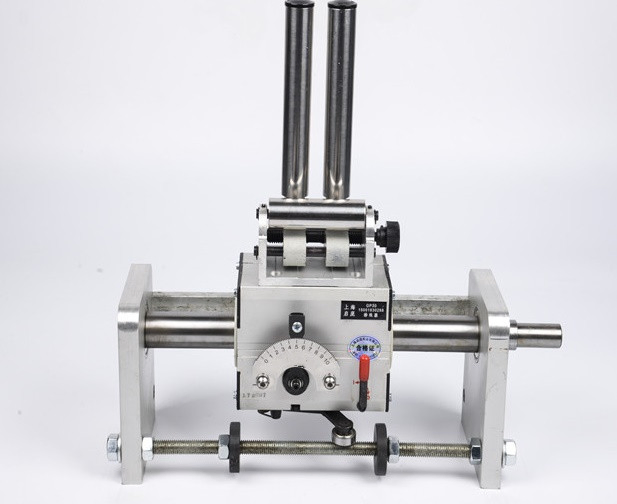

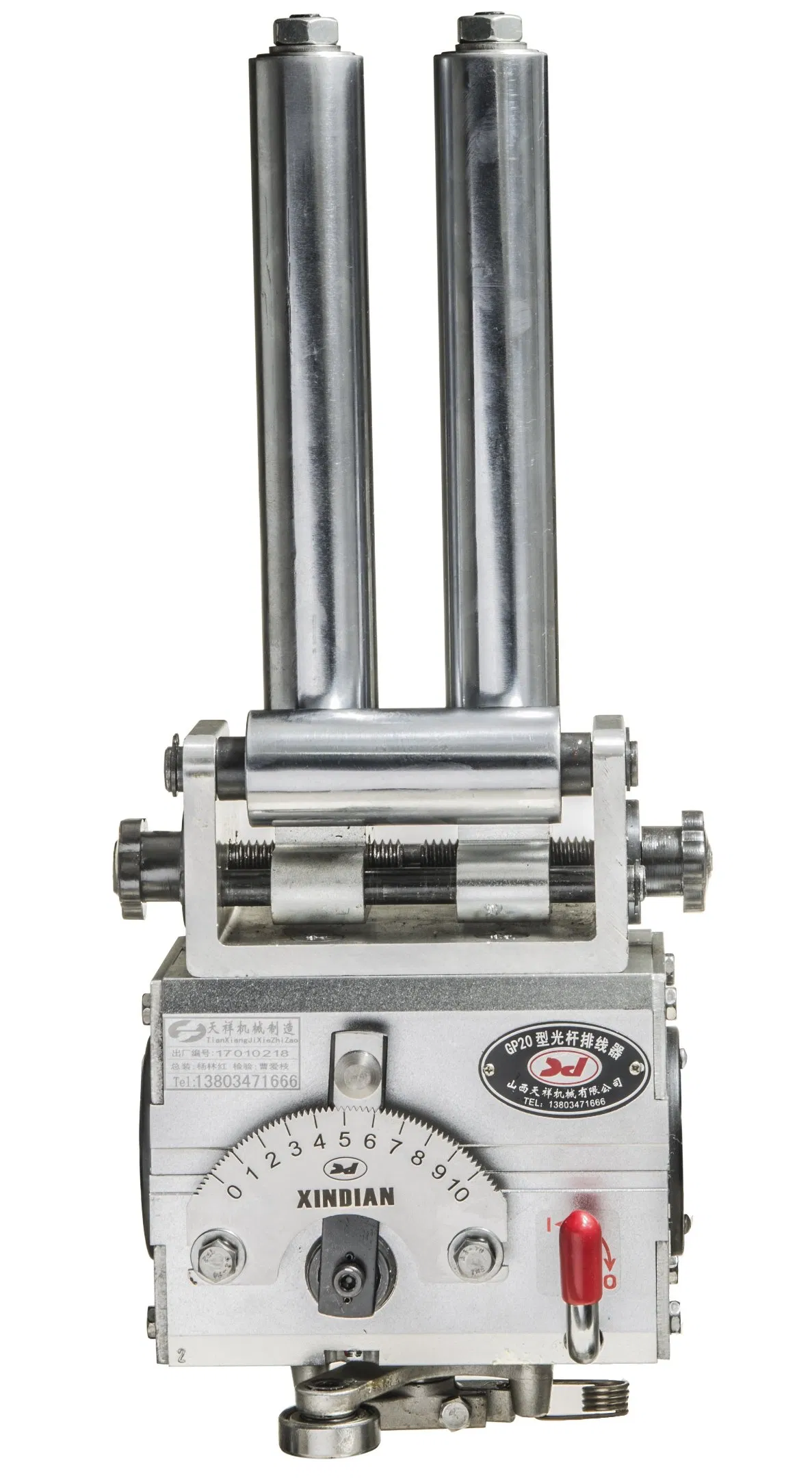

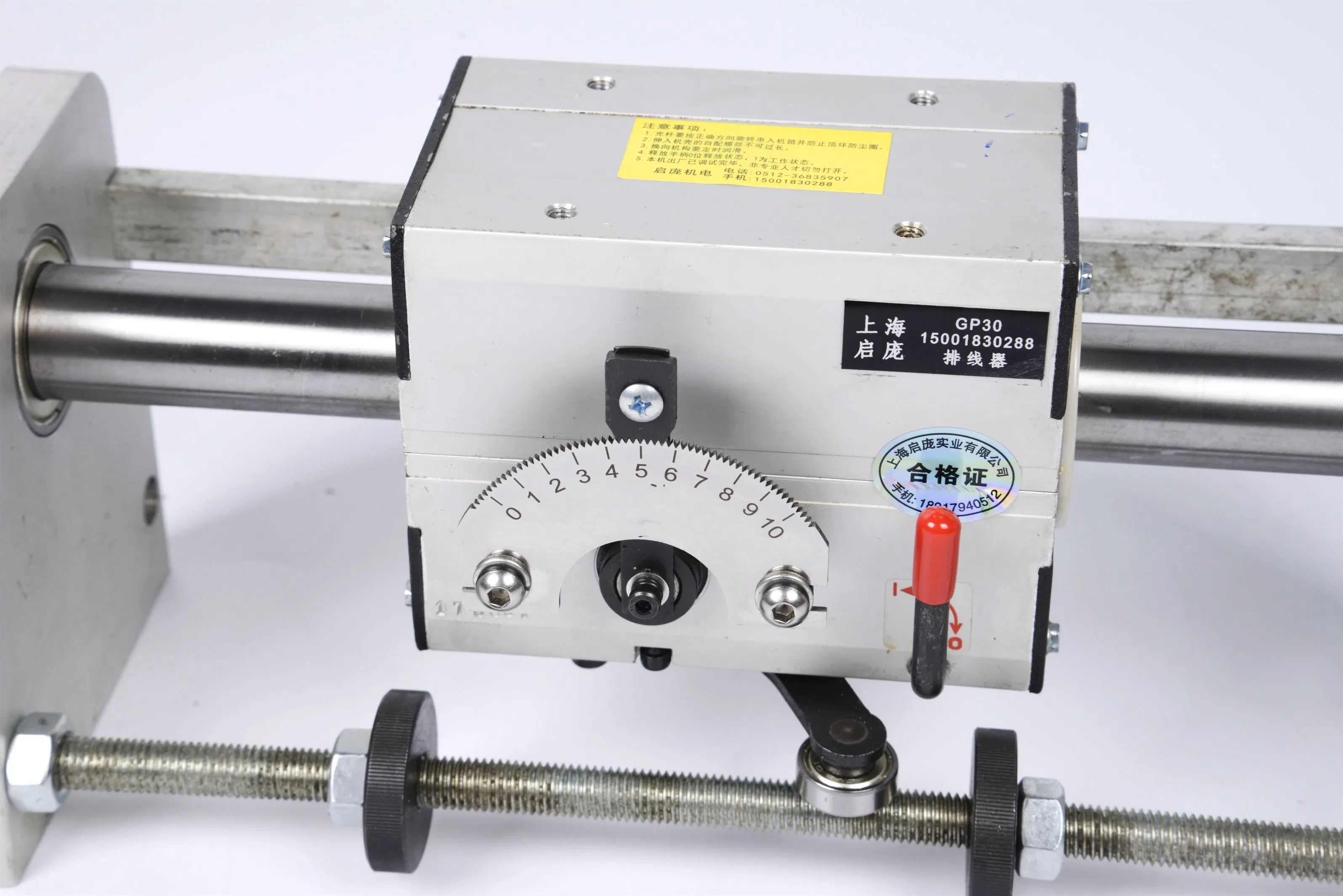

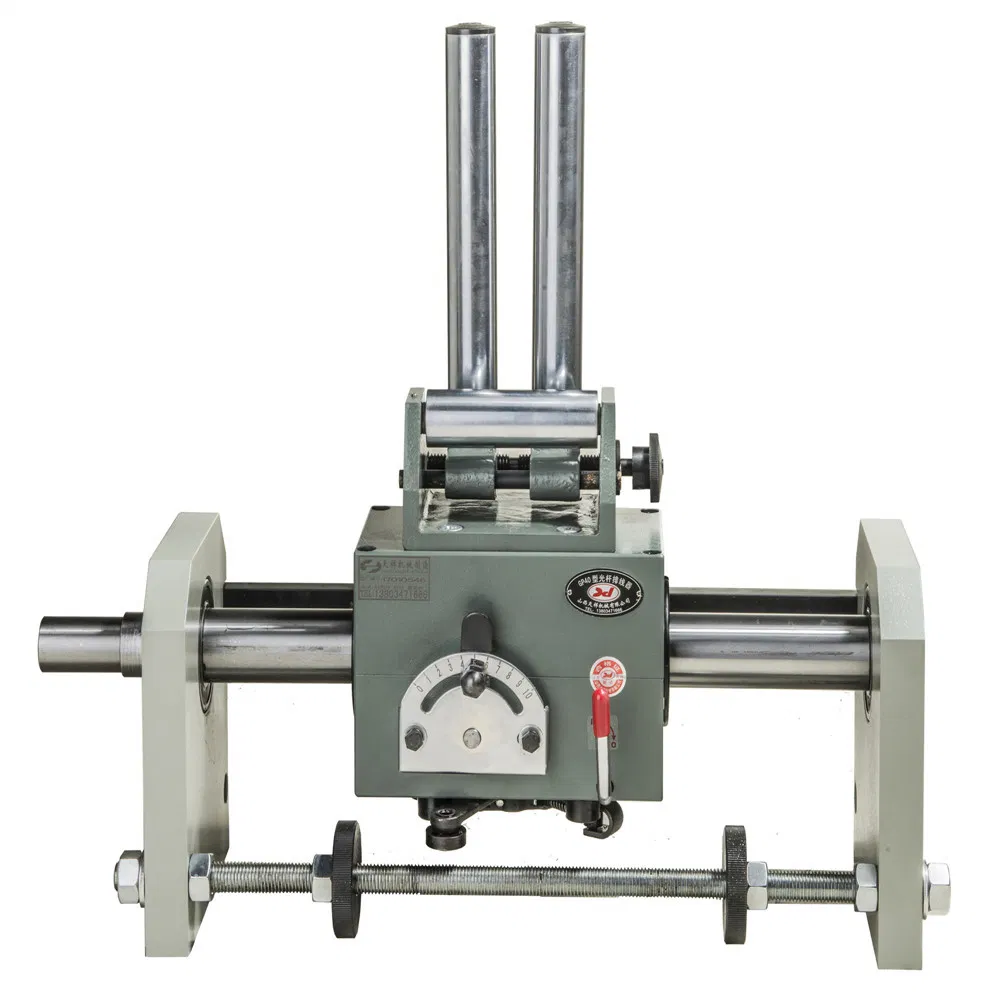

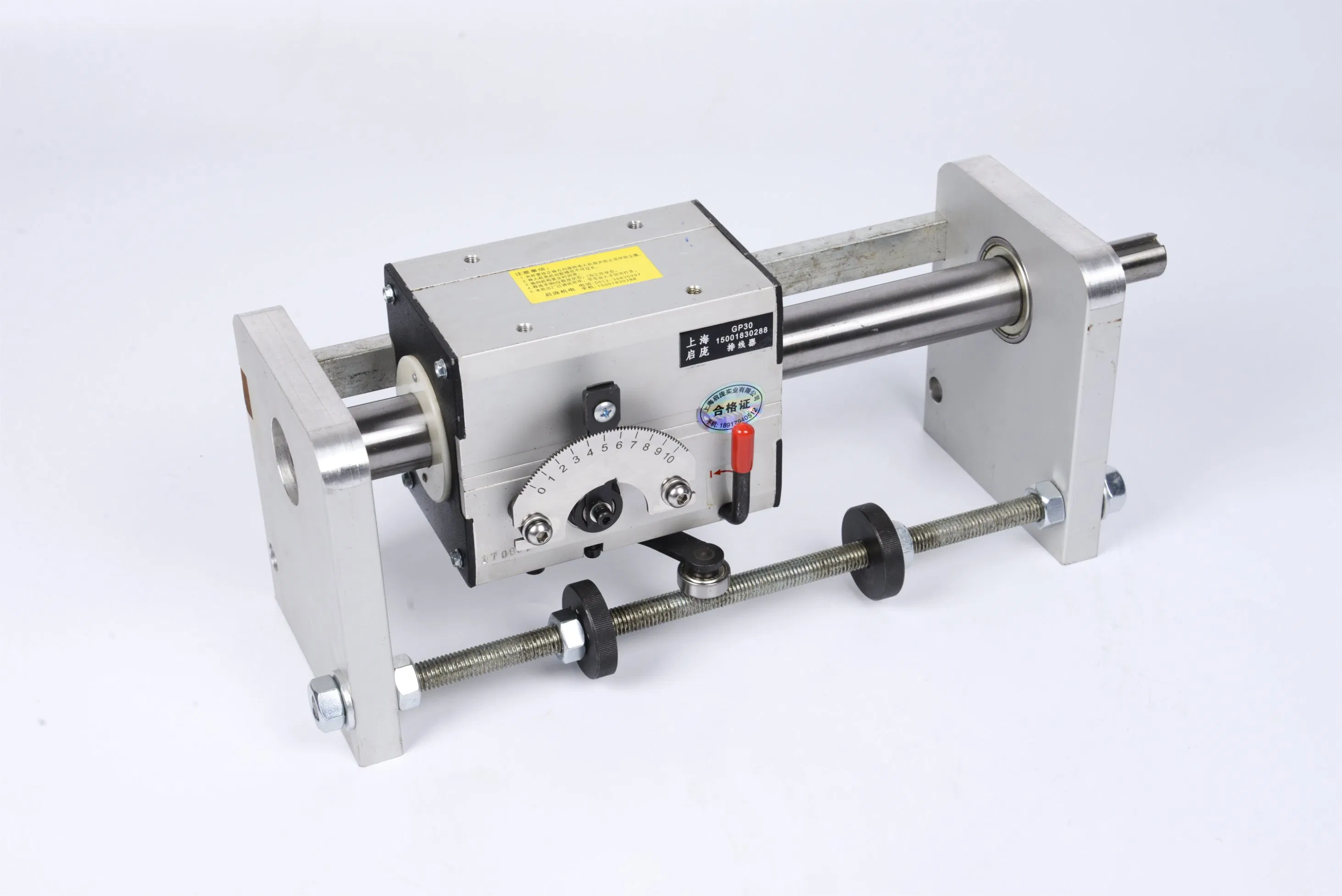

➤ C Series: Rolling ring drives Type C Series just have One Rolling Ring linear drive with accessories, such as shaft, guide roller, bearing block, steady bar, etc., which are divided into eight types according to the diameter of the shafts.
| Model No | Linear Pitch (mm/r) | Axial Thrust (kg) | Weight (kg) |
|---|---|---|---|
| GP3-15 | 1~11 | 11(110N) | 1.2 |
| GP4-15 | 1~11 | 22(220N) | 1.5 |
| GP3-20 | 1~16 | 16(160N) | 2.5 |
| GP4-20 | 1~16 | 32(320N) | 3 |
| GP3-22 | 1~16 | 16(160N) | 2.5 |
| GP4-22 | 1~16 | 32(320N) | 3 |
| GP3-25 | 1~25 | 26(260N) | 3 |
| GP3-30 | 1~25 | 26(260N) | 3 |
| GP4-30 | 1~25 | 52(520N) | 3.7 |
| GP3-40 | 1~32 | 42(420N) | 10 |
| GP4-40 | 1~32 | 84(840N) | 13 |
| GP3-50 | 2~40 | 70(700N) | 20 |
| GP4-50 | 2~40 | 140(1400N) | 38 |
| GP3-60 | 2~48 | 100(1000N) | 40 |
| GP4-60 | 2~48 | 200(2000N) | 45 |

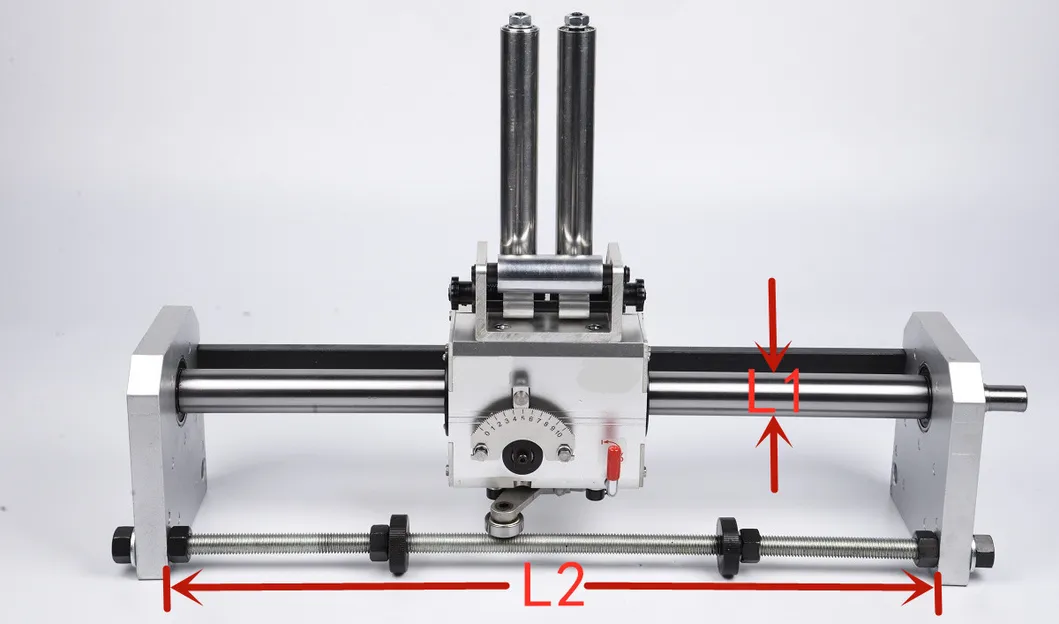

Configuration Requirement: If you want a C-type cable, please provide the sizes for L1 and L2. We will provide products that suit your specific needs.
Note: The distance of L2 refers to the inner distance.
