Basic Specifications
Usage
Tool Rack, Clothing, Supermarket, Industrial, Warehouse
Material
Steel and Reinforced Concrete
Pallet Length
1250 - 3650 mm
Production Capacity
10000 Sets Per Year
⚙️

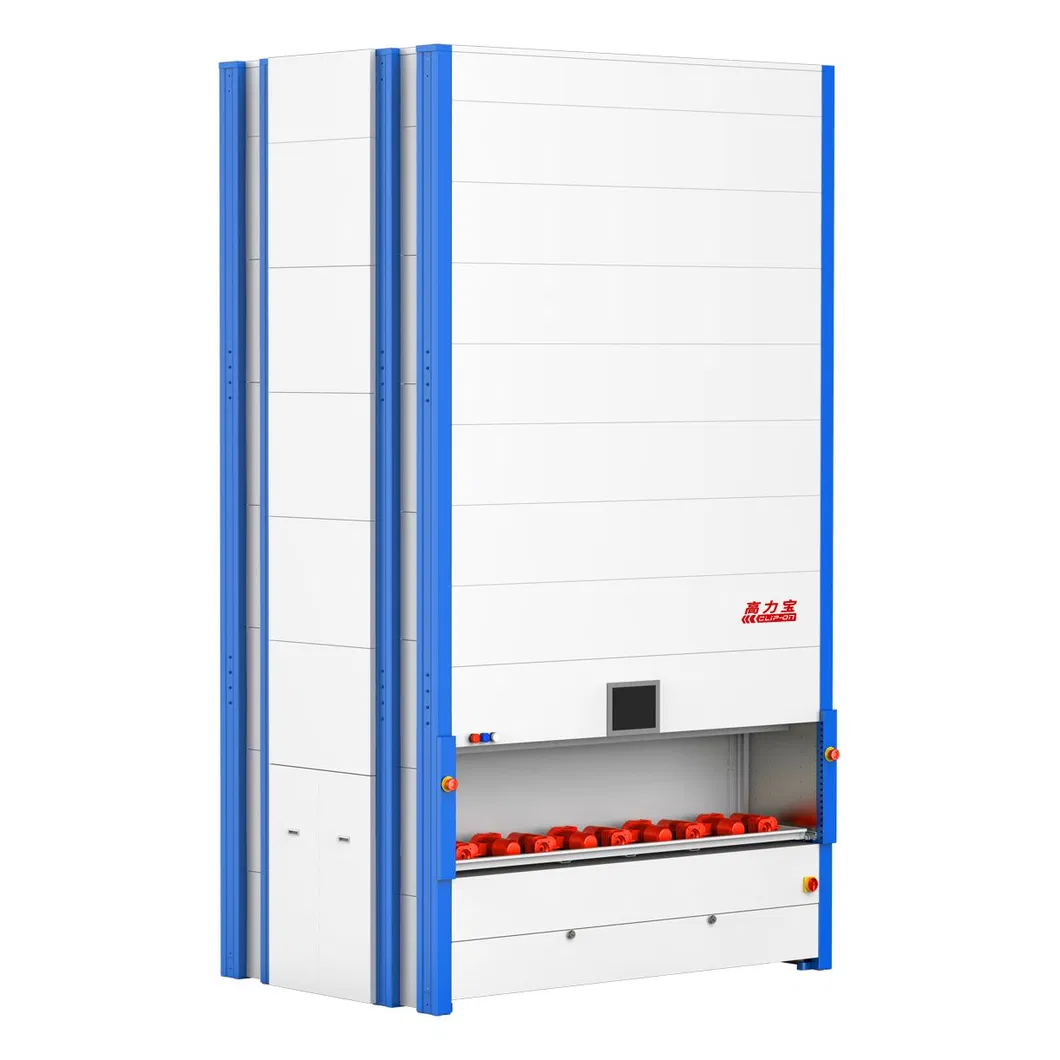

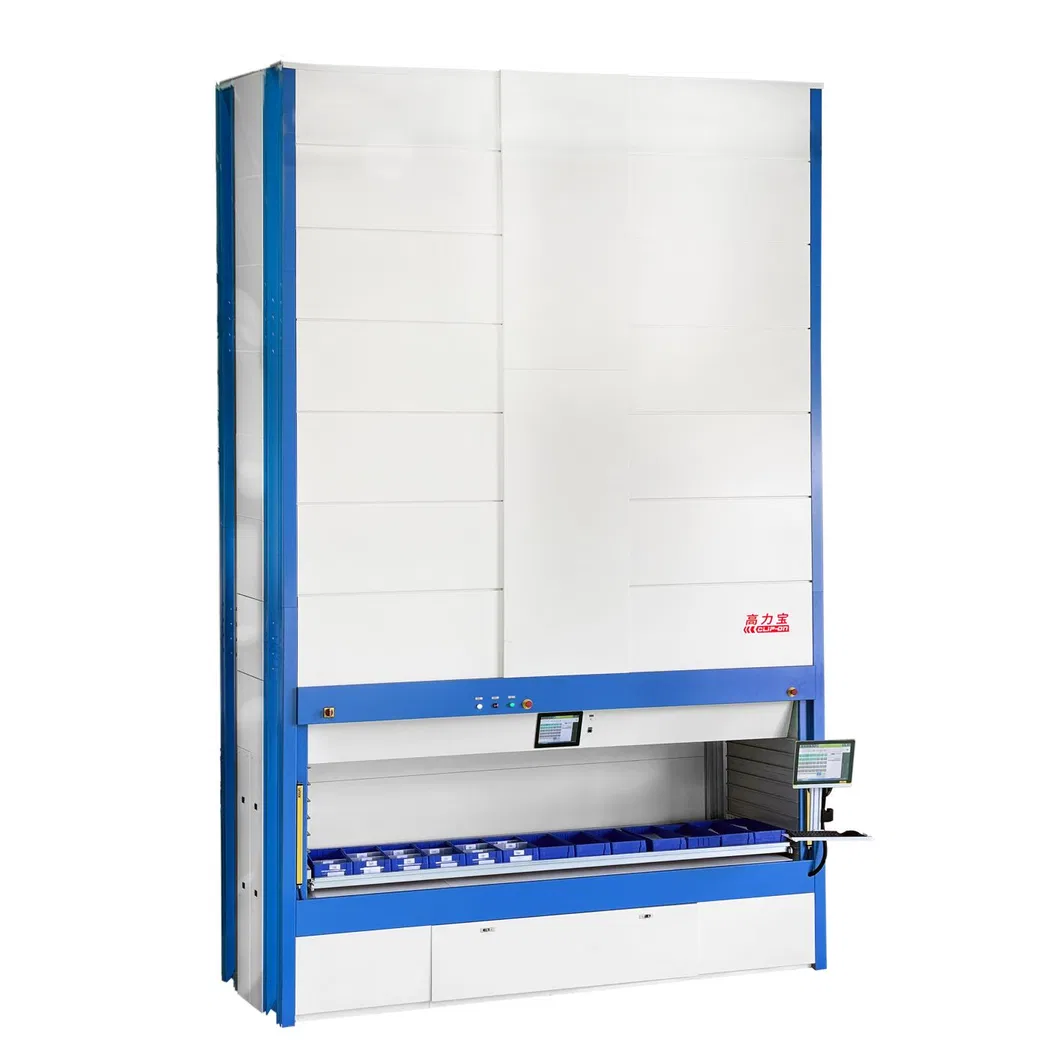

Vertical Lift Module (VLM)
Model: GSJ250 / GSJ500 / GSJ700
Key Advantages
- ✅Save up to 85% of warehouse floor space
- ✅Increase labor productivity by approximately 70%
- ✅Significantly improve goods receipt and delivery accuracy
- ✅Better and safer storage environment for goods
- ✅Humanized design for maximum operator safety
- ✅Optimized retrieval processes with 24/7 high reliability
📊
Technical Specifications
| Model |
Unit Width (mm) |
Tray Width (mm) |
Tray Depth (mm) |
Tray Wall Height (mm) |
Net Payload (kg) |
Unit Depth (mm) |
| GSJ300-15 | 1,892 | 1,500 | 654 | 50 / 70 | 300 | 2,443 |
| GSJ300D-15 | 1,892 | 1,500 | 856 | 50 / 70 | 300 | 3,035 |
| GSJ550-15 | 1,892 | 1,500 | 654 | 70 / 90 / 120 | 550 | 2,443 |
| GSJ550D-15 | 1,892 | 1,500 | 856 | 70 / 90 / 120 | 550 | 3,035 |
| GSJ750-15 | 1,892 | 1,500 | 654 | 120 | 725 | 2,443 |
| GSJ1000-15 | 1,842 | 1,460 | 654 | 70 / 120 | 990 | 2,443 |
| GSJ300-19 | 2,282 | 1,900 | 654 | 50 / 70 | 300 | 2,443 |
| GSJ550-19 | 2,282 | 1,900 | 654 | 70 / 90 / 120 | 550 | 2,443 |
| GSJ1000-19 | 2,242 | 1,860 | 654 | 120 | 990 | 2,443 |
| GSJ350S-13 | 1,682 | 1,300 | 425 | 45 | 350 | 1,670 |
Applications & Features
- 🔹Compact design to maximize available floor height
- 🔹Direct ergonomic access to the operator
- 🔹Integrated sorting indicators for picking accuracy
- 🔹Software support for password protection and process traceability
- 🔹Security curtains for cargo reporting and emergency shutdown
🏭

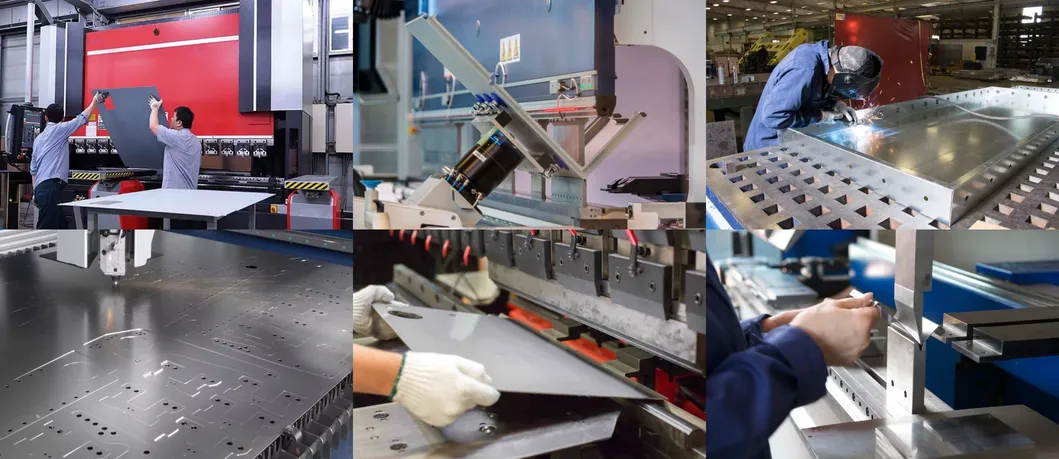

Production Excellence
Focusing on Industry 4.0 trends, we provide modern and efficient internal logistics solutions. Our intelligent lifting cabinets and rotary systems are widely used in electronics, pharmaceuticals, food, new energy, and more.
Quality Assurance & Services
- 🛡️Complete rigorous management and inspection processes
- 🛡️Rigorous incoming inspection and flaw detection
- 🛡️24-hour response for design and technical inquiries
- 🛡️Professional customization based on client requirements
Welcome to your inquiry!
❓
Frequently Asked Questions
How much floor space can the Vertical Lift Module (VLM) save?
The VLM system is designed to maximize vertical height, allowing you to save up to 85% of your existing warehouse floor space compared to traditional racking.
What industries are these storage modules suitable for?
Our systems are widely used in mechanical and electronic manufacturing, pharmaceutical, food and beverage, new energy, power, and retail industries.
Are the lifting modules customizable?
Yes, we provide professional customization services including tray width, depth, and payload capacities to match your specific storage requirements.
What is the payload capacity for the trays?
We offer a range of models with net tray payloads ranging from 300kg to 990kg depending on the specific model selected.
How does the system ensure operator safety?
The system includes humanized picking port designs, security curtains for cargo monitoring, and emergency shutdown features to ensure maximum safety.
Can the software be integrated into existing processes?
Yes, our software supports operational process traceability and password protection to ensure secure and efficient inventory management.
