We are leading rotary parking system in the safety!!!

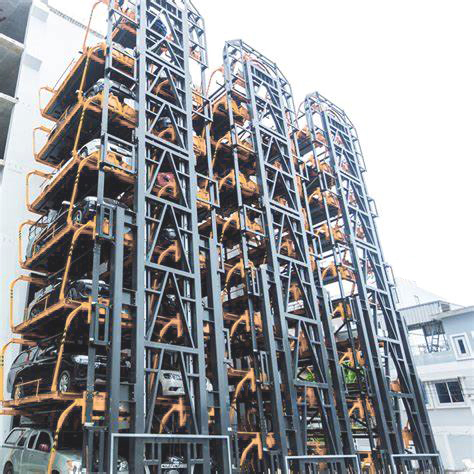

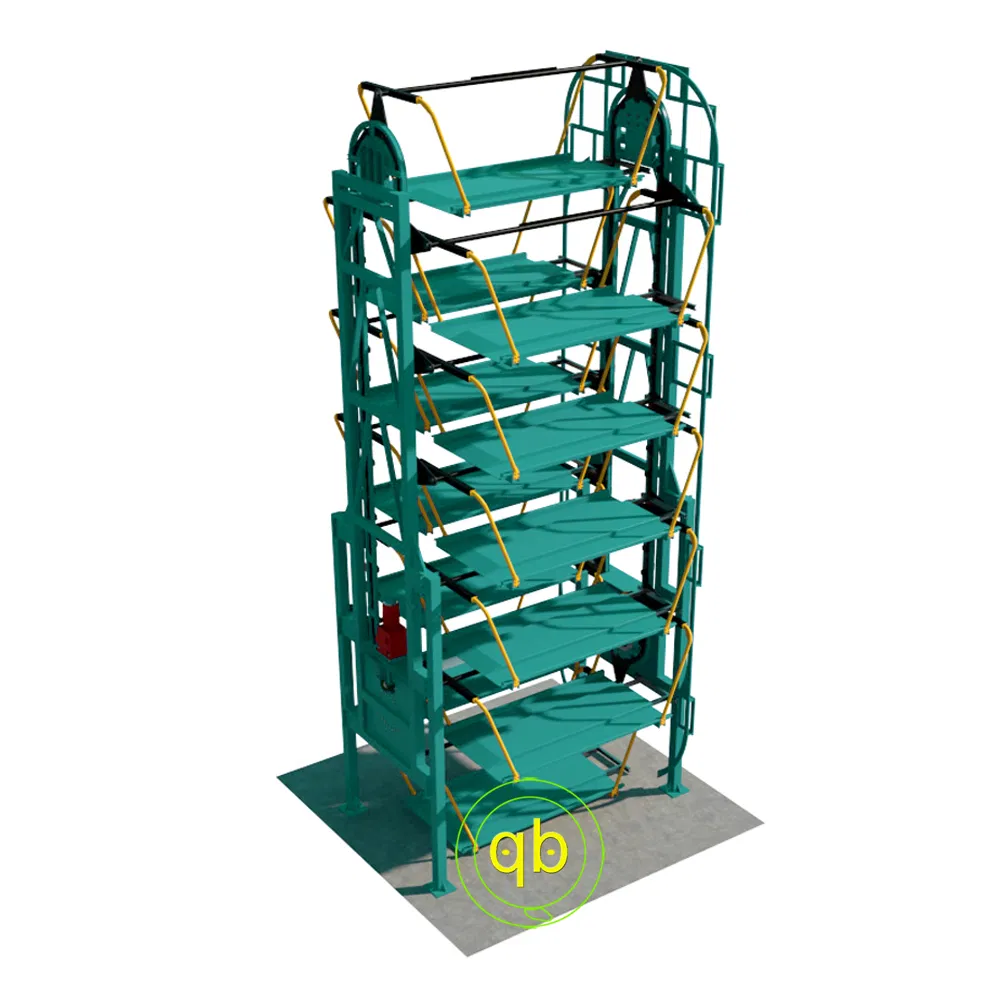

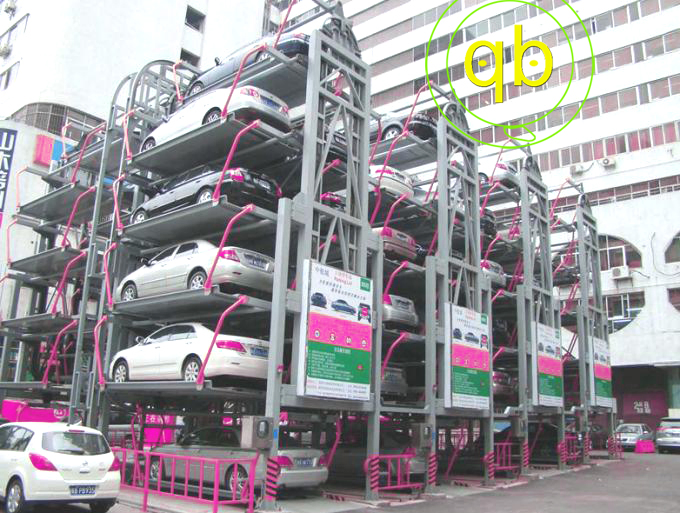

Operating Principle: The Rotary Parking System uses a combination of mechanical and hydraulic technology to rotate vehicles and stack them vertically, maximizing the use of available parking space. The system typically consists of a circular platform that can rotate horizontally, as well as vertical columns with multiple levels of parking spaces. Vehicles are driven onto the platform and positioned in a designated spot. When the system is activated, the platform rotates to align the vehicle with an empty parking space on a different level. Hydraulic lifts are used to raise and lower the vehicles as they are moved vertically within the system.
| Model No. | RQB-8 | RQB-10 | RQB-12 | RQB-16 | RQB-20 |
|---|---|---|---|---|---|
| Car Spaces (pcs) | 8 | 10 | 12 | 16 | 20 |
| Motor Power (kw) | 7.5 | 7.5 | 9.2 | 15 | 24 |
| Max Retrieve Time(s) | 100 | 120 | 140 | 160 | 140 |
| Rated Capacity (kg) | 2000 | 2000 | 2000 | 2000 | 2000 |
| Model No. (Wide) | RQB-8W | RQB-10W | RQB-12W | RQB-16W |
|---|---|---|---|---|
| Car Spaces (pcs) | 8 | 10 | 12 | 16 |
| Motor Power (kw) | 9.2 | 9.2 | 15 | 24 |
| Rated Capacity (kg) | 2300 | 2300 | 2300 | 2300 |
| Car Size (mm) | LxWxH 5300x2100x2000 | |||
