Warehouse Rack System Warehouse Equipment Pallet Racking Vertical Lift Module

1 / 5

Warehouse Rack System Warehouse Equipment Pallet Racking Vertical Lift Module

Customization:	Available
After-sales Service:	Engineer Service
Warranty:	12 Months

Send Inquiry

Product Description

📋

Basic Information

Model NO.

GSJ500

Usage

Tool Rack, Clothing, Tools, Supermarket, Industrial, Warehouse Rack

Material

Steel and Reinforced Concrete

Structure

Cantilever Rack

Type

Multi-Level Racking

Mobility

Combined

Height

5-15m

Weight

120 Ton

Development

New Type

Width

1633 - 4033mm

Pallet Length

1250 - 3650 mm

Production Capacity

10000 Sets Per Year

📦

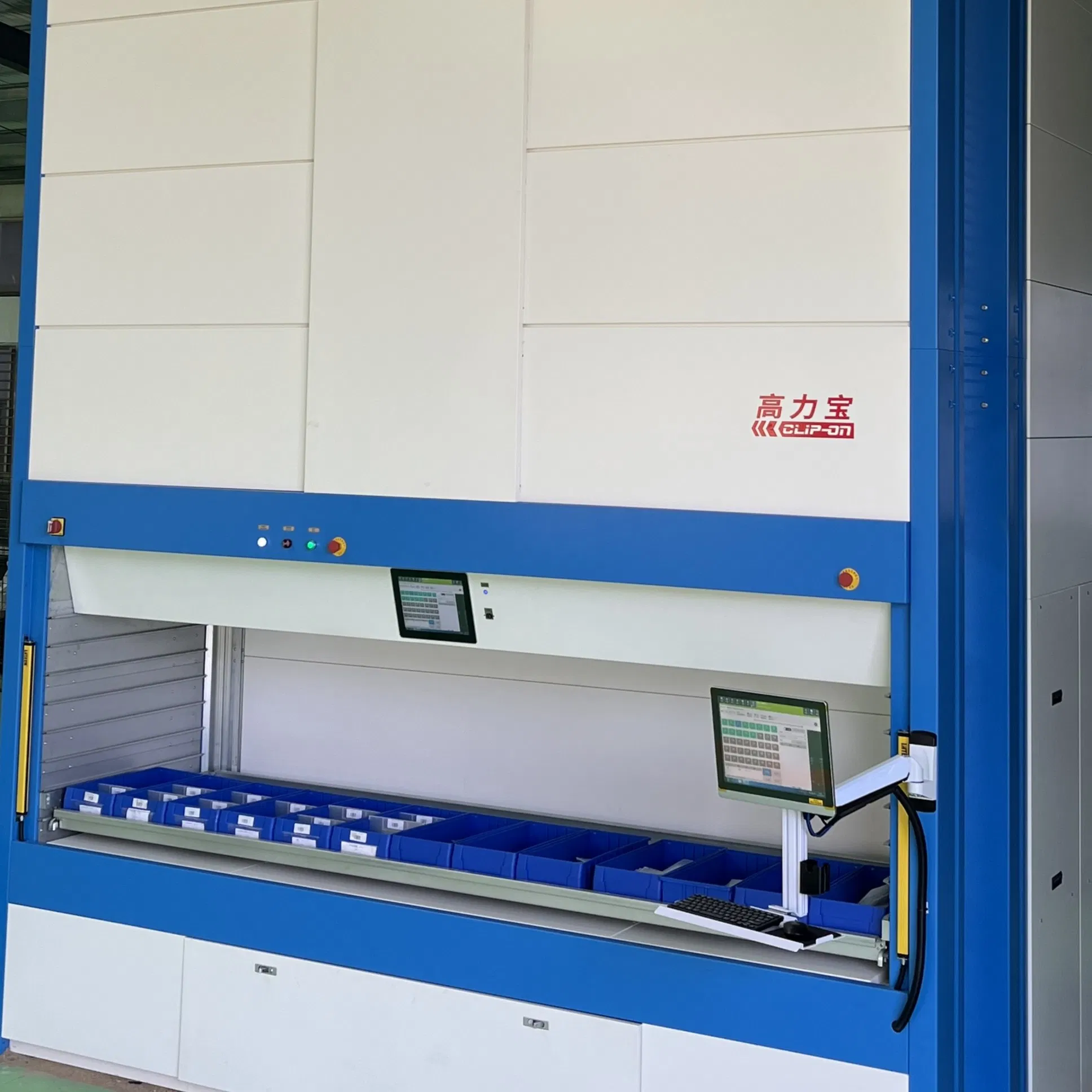

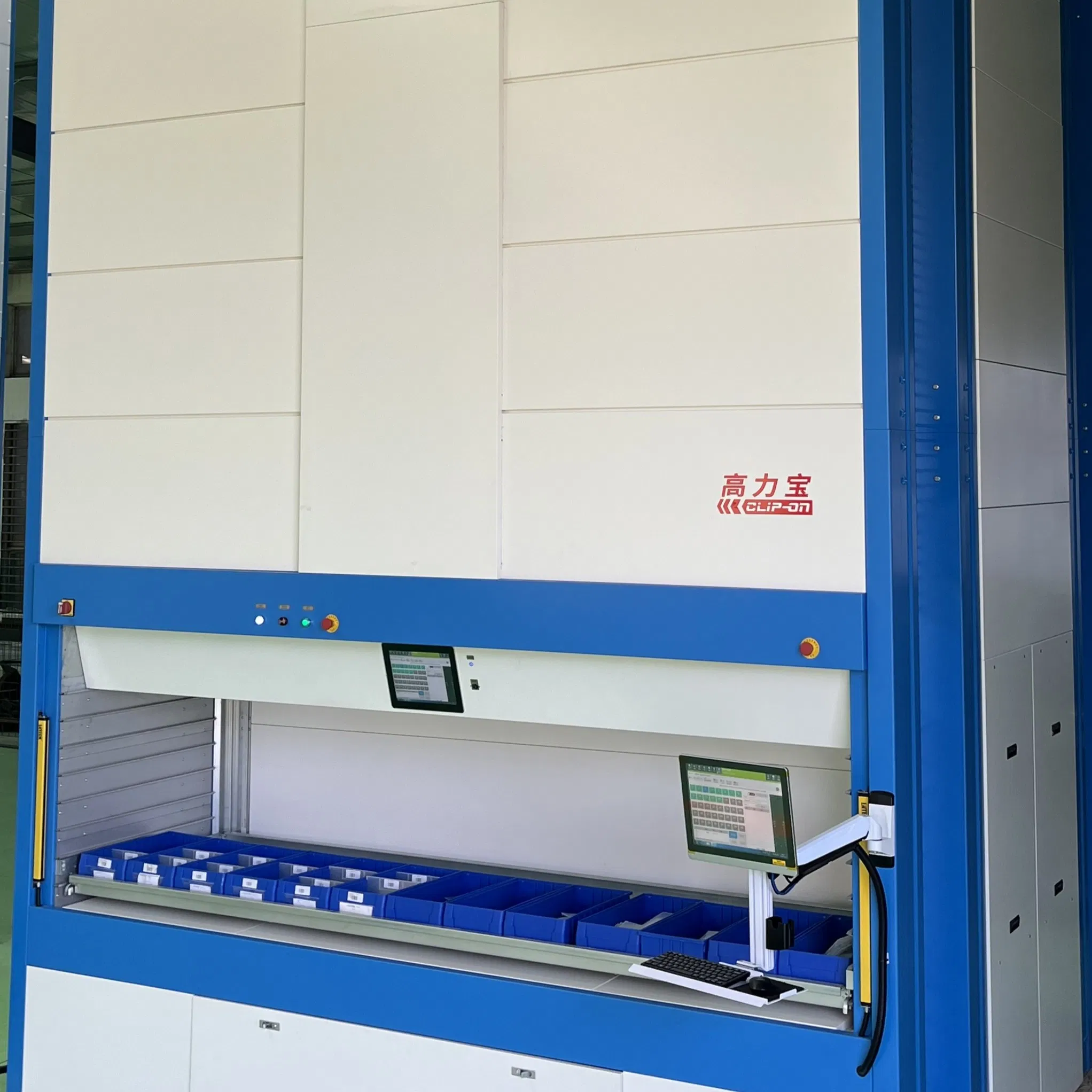

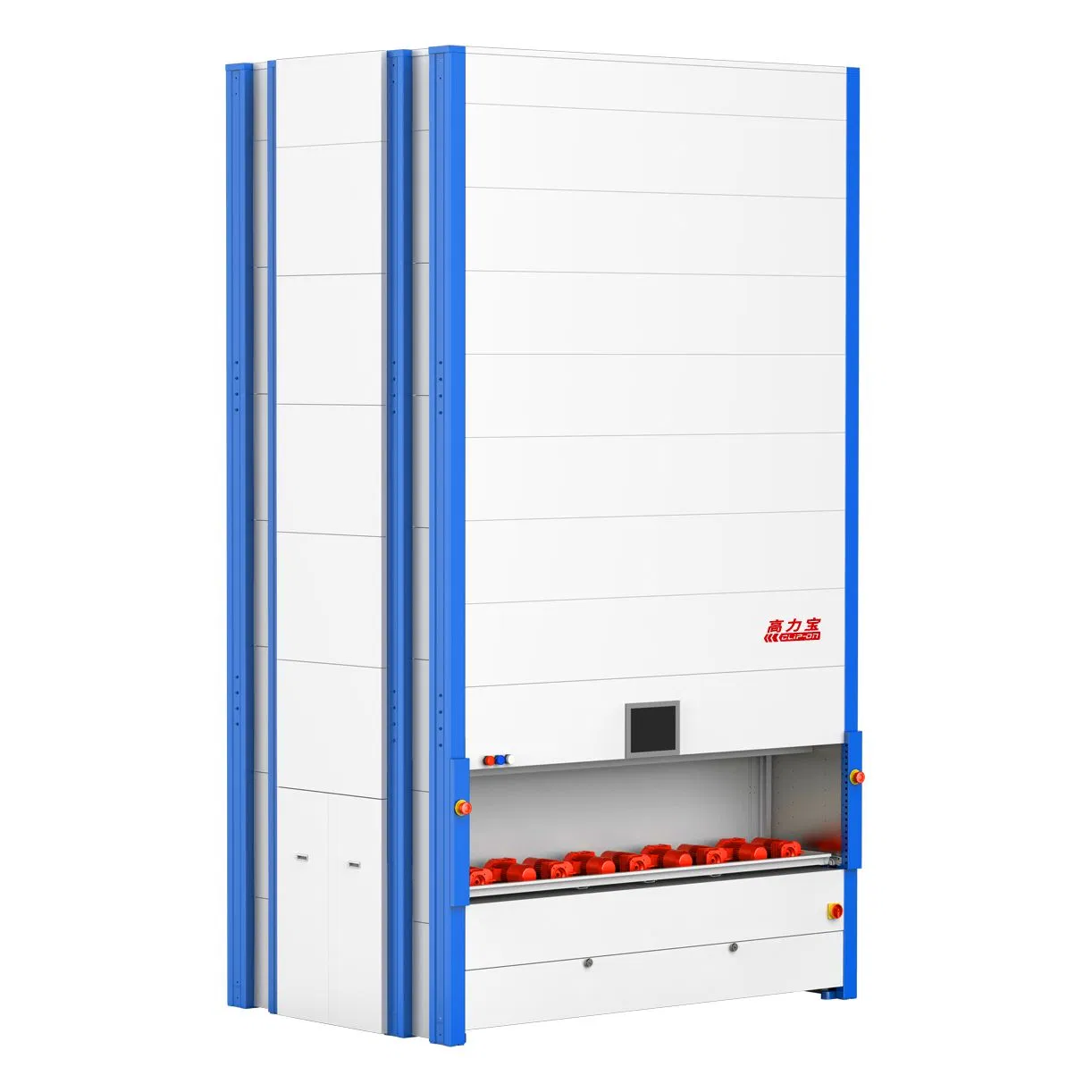

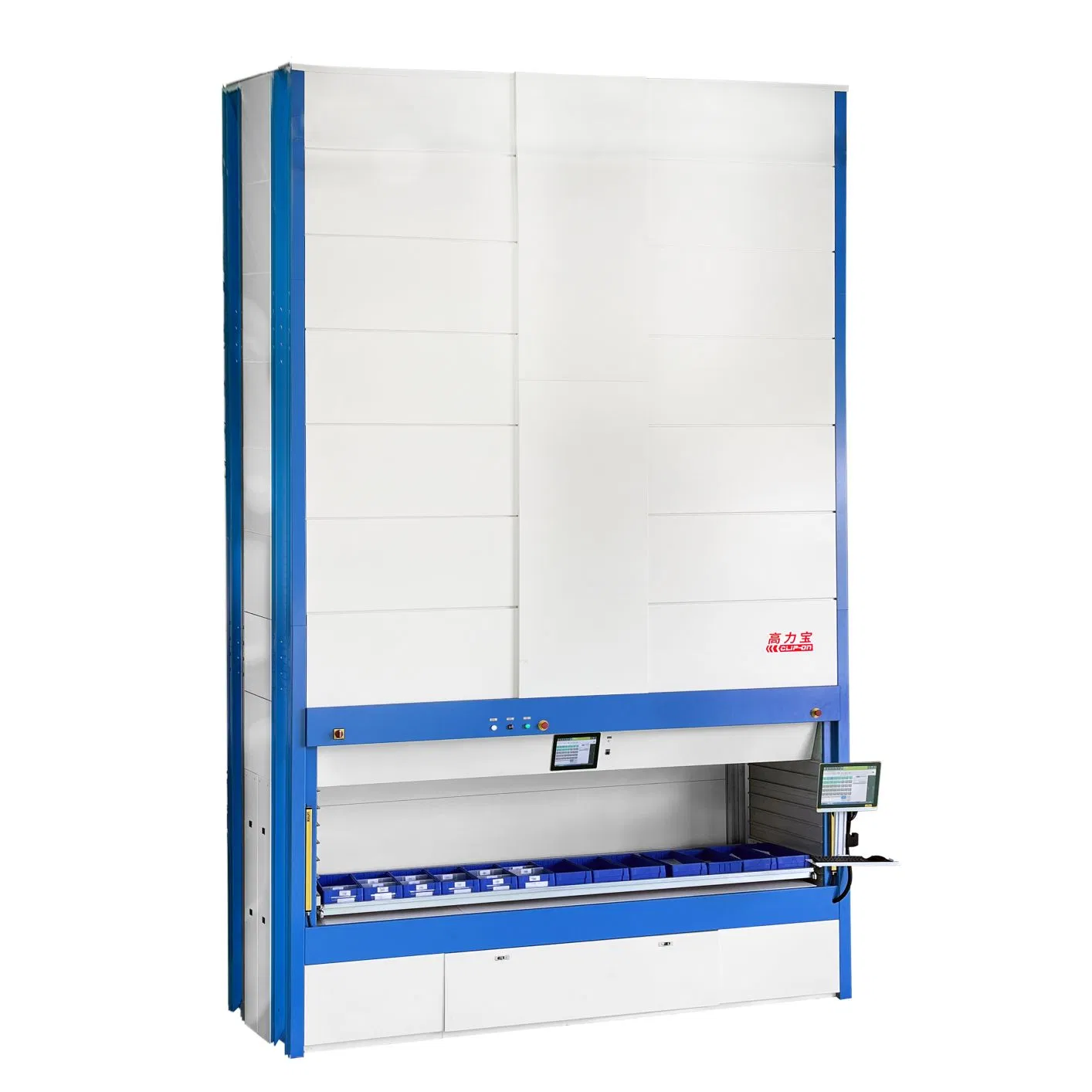

Vertical Lift Module

Model: GSJ250 / GSJ500 / GSJ700

⭐

Key Advantages

Save up to 85% of warehouse floor space
Increase labor productivity by approximately 70%
Significantly improve the accuracy of goods receipt and delivery
Better and safer storage of goods
Humanized design for greater operator safety
Optimized storage and retrieval of goods
24/7 high reliability

📊

Technical Specifications

Model	Unit Width (mm)	Tray Width (mm)	Tray Depth (mm)	Tray Wall Height (mm)	Net Tray Payload (kg)	Unit Depth with Internal Access Port (mm)
GSJ300-15	1,892	1,500	654	50 / 70	300	2,443
GSJ300D-15	1,892	1,500	856	50 / 70	300	3,035
GSJ550-15	1,892	1,500	654	70/90/120	550	2,443
GSJ550D-15	1,892	1,500	856	70/90/120	550	3,035
GSJ750-15	1,892	1,500	654	120	725	2,443
GSJ1000-15	1,842	1,460	654	70 / 120	990	2,443
GSJ300-19	2,282	1,900	654	50 / 70	300	2,443
GSJ550-19	2,282	1,900	654	70/90/120	550	2,443
GSJ1000-19	2,242	1,860	654	120	990	2,443
GSJ300-25	2,882	2,500	654	50 / 70	300	2,443
GSJ550-25	2,882	2,500	654	70/90/120	550	2,443
GSJ1000-25	2,842	2,460	654	120	990	2,443
GSJ300-31	3,482	3,100	654	50 / 70	300	2,443
GSJ750-31	3,482	3,100	654	70 / 120	725	2,443
GSJ1000-41	4,442	4,060	654	145	990	2,443

🔍

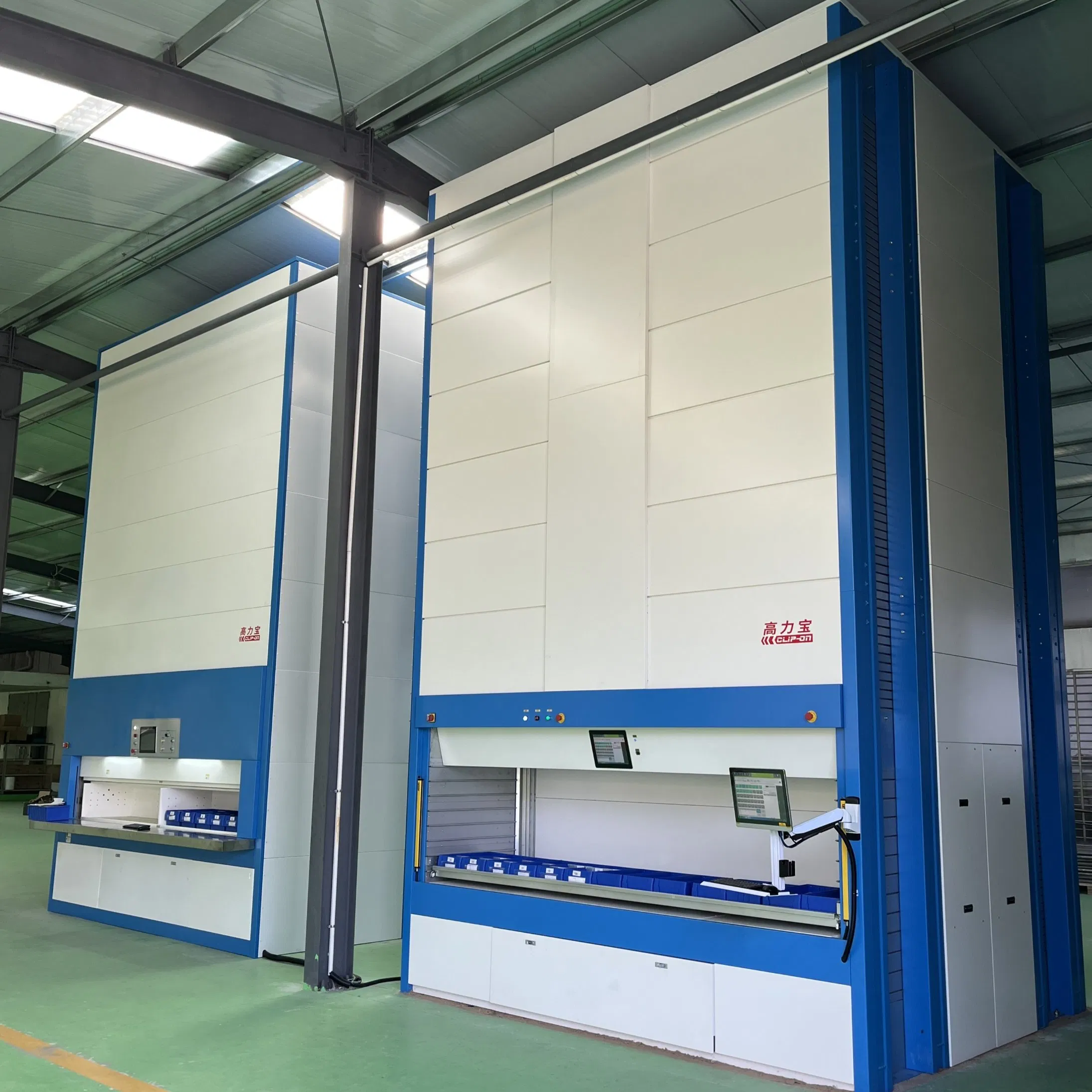

Case Study & Features

Compact design to maximize floor height
Direct access to the operator
Sorting indicator
Lockable cabinet doors
Software support for operational process traceability
Security curtain for cargo reporting and emergency shutdown
Ergonomic design of picking ports

🛠️

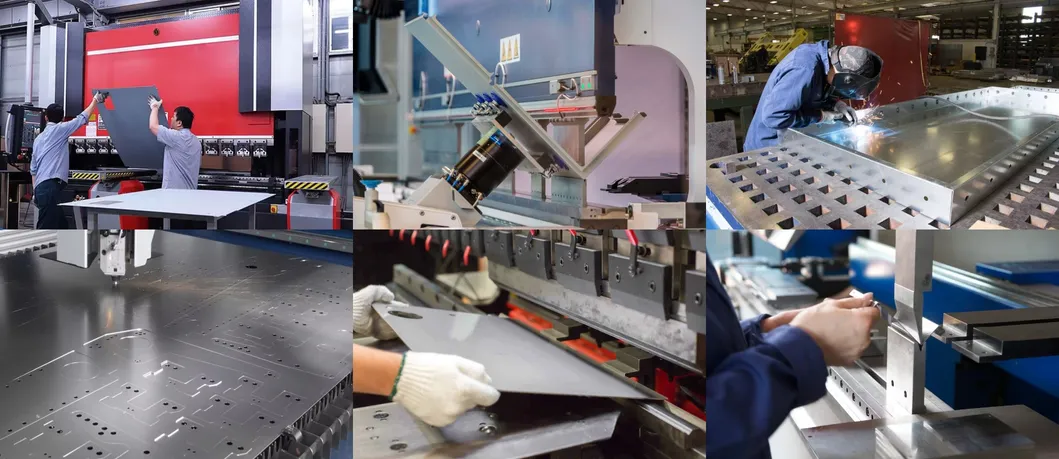

Production & Quality Assurance

Comprehensive Service Standards:

Complete rigorous management and production inspection processes
Advanced factory facilities ensuring high precision
Professional customization according to client requirements
On-time delivery with rigorous production schedules
Response to inquiries within 24 hours with efficient solutions

❓

Frequently Asked Questions

How much floor space can a Vertical Lift Module (VLM) save?

The GSJ series Vertical Lift Module can save up to 85% of warehouse floor space by utilizing vertical height effectively.

What is the weight capacity for the trays?

Depending on the model, net tray payloads range from 300kg up to 990kg per tray.

How does the system improve labor productivity?

By bringing goods directly to the operator (Goods-to-Person) and using sorting indicators, it can increase labor productivity by approximately 70%.

What safety features are included in the GSJ series?

The modules include safety curtains for cargo reporting, emergency shutdown capabilities, lockable doors, and ergonomic picking ports.

Which industries typically use these automated storage systems?

They are widely used in mechanical and electronic manufacturing, pharmaceutical, food and beverage, new energy, and retail sectors.

Can the storage height be customized?

Yes, the system supports unit heights from 5m up to 15m (and specifications up to 20m) to accommodate different warehouse heights.
