Warehouse Economic Radio Shuttle Pallet Rack system Automation Racking System Pallet Runner Radio Shuttle

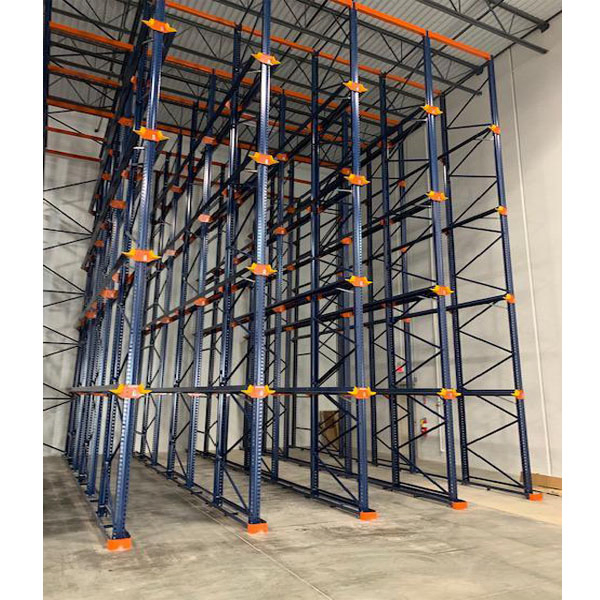

Pallet rack is very cost-effective, providing high capacity storage and easy access to all pallets. It offers direct access to all pallets with great load flexibility. It installs quickly and adjusts easily to your specific needs.

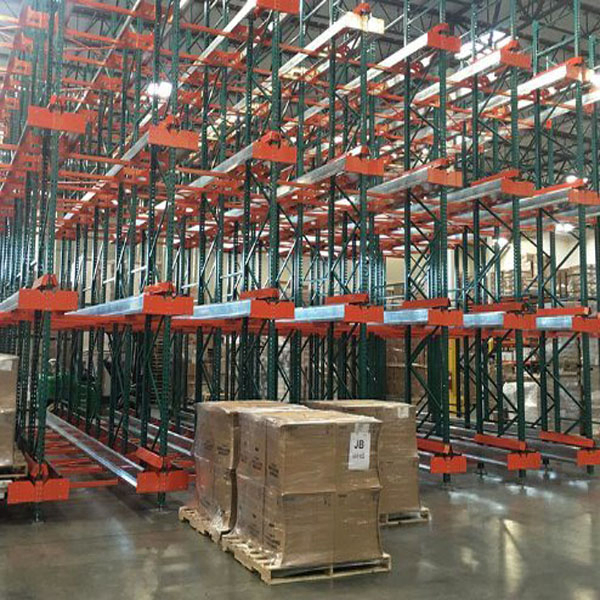

Radio Shuttle Rack is a racking system with high density storage including racking and electrically powered pallet runners which works with forklifts. This high efficient storage solution provides a new option to maximum use of warehouse.

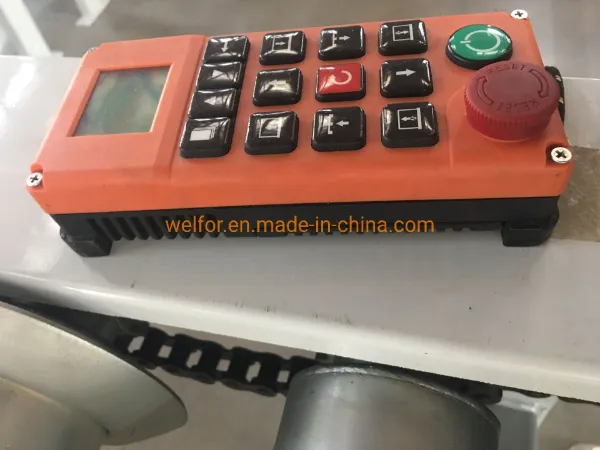

| Loading | With the radio controller order, the pallet runner transports the pallet into the tunnel of racking system from the home position, then return for the next pallet. |
| Picking | With the radio controller order, pallet runner carries pallets out of deep tunnel to home position for forklift to pick. |
| Transferring | The pallet runner can be transferred to other tunnels by forklift. The quantity depends on the depth of tunnels, quantity of goods, throughput, load and pick frequency, etc. |
FILO: When the racking system has one passage way.
FIFO: Pallet runner have access to both ends of tunnels.

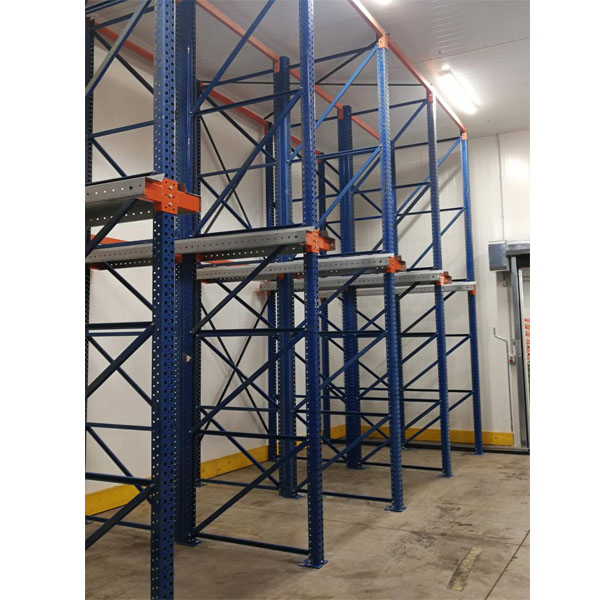

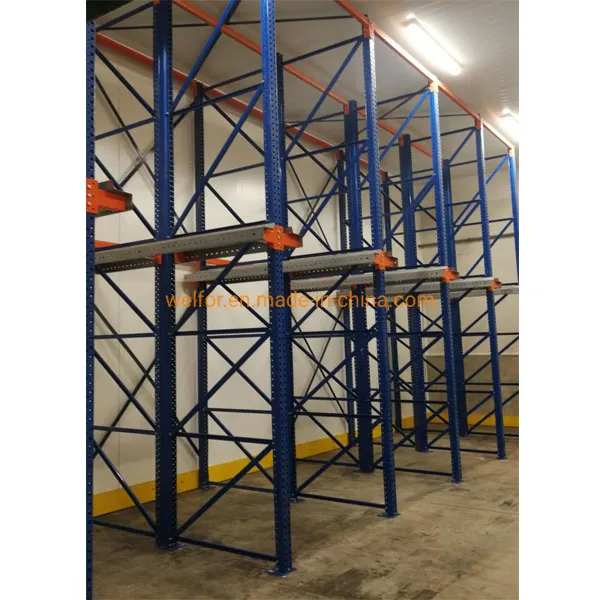

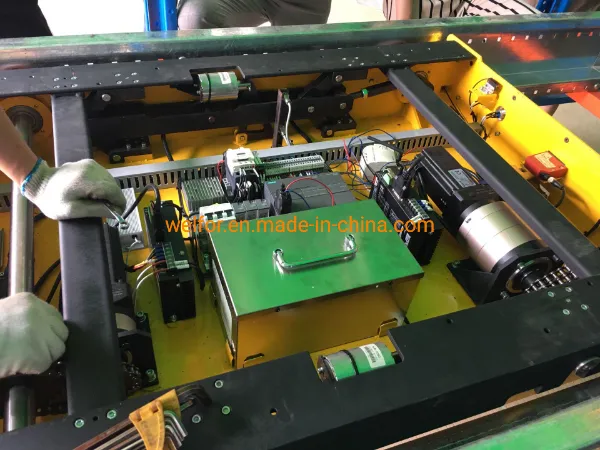

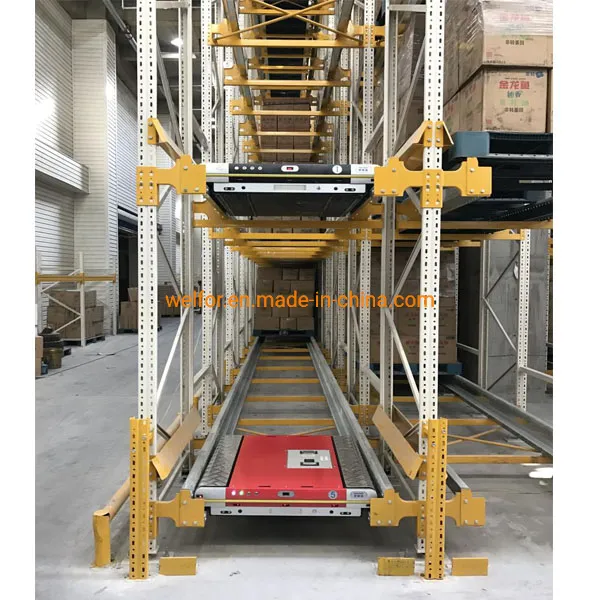

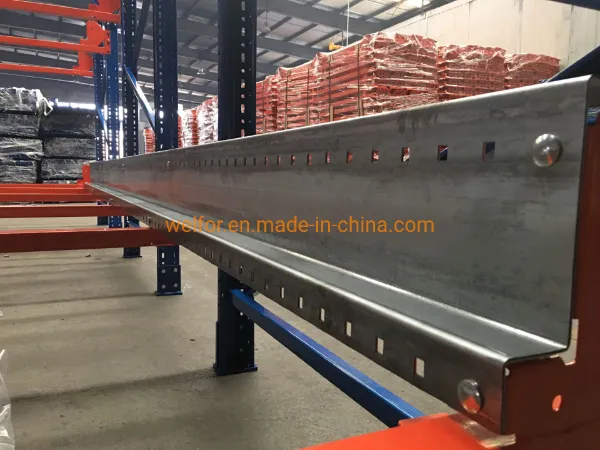

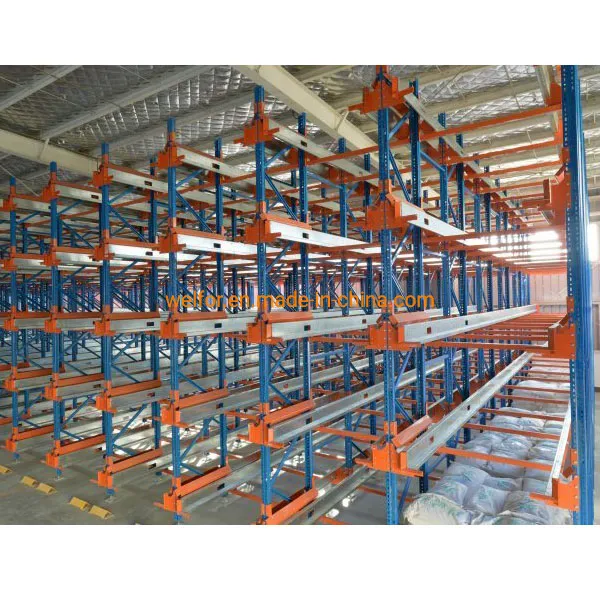

Radio Shuttle Racking system consists of supporting rack, shuttle rails and a Radio shuttle cart (Also Called Pallet Runner or Pallet Mole). The Radio shuttle cart runs on the rails and is propelled by an electric motor. It also has a platform on the top that can lift up and down. The lifting action is required to lift a pallet that is placed on the rail and then the electric motor moves the cart with the pallet on top into the rack in order to deposit the pallet in its right position.
CE CERTIFICATE
Warranty: 2 years after receipt.
Support: Lifetime guarantee for installation, parts, and maintenance issues.
Installation: Local installation teams or guided support available.
Freight: Shipping costs offered via professional forwarders.
