Innovative 1000m2 Auto Parts Factory Layout for Global Buyers
Innovative 1000m2 Auto Parts Factory Layout for Global Buyers
Innovative 1000m2 Auto Parts Factory Layout for Global Buyers
Innovative 1000m2 Auto Parts Factory Layout for Global Buyers
Innovative 1000m2 Auto Parts Factory Layout for Global Buyers
1 / 5
Innovative 1000m2 Auto Parts Factory Layout for Global Buyers
Innovative 1000m2 Auto Parts Factory Layout for Global Buyers
Innovative 1000m2 Auto Parts Factory Layout for Global Buyers
Innovative 1000m2 Auto Parts Factory Layout for Global Buyers
Innovative 1000m2 Auto Parts Factory Layout for Global Buyers

Innovative 1000m2 Auto Parts Factory Layout for Global Buyers

Customization: Available
After-sales Service: Full Drawing, Install Guide or Training
Connection Form: Bolt Connection
Send Inquiry

Product Description

Technical Specifications
Model NO.
GY-SW1497
Material
Steel Structure
Usage
Warehouse, Dormitories, Workshop, Steel Hangars
Steel Code
Q355 & Q235
Structure Frame
Portal Frame
Software Used
Auto CAD, Pkpm, Tekla
Wind Loading
80km/H-120km/H
Seismic Grade
7 Grade
Connection
Bolts Connection
Surface Treatment
Painting or Hot Galvanize
Production Capacity
2000 Tons Per Month
Standard
ASTM
Advantages of Steel Structure Building
  • Flexible layout: Tailored to specific industrial or commercial needs.
  • High Durability: Good ductility, strong plasticity, and high seismic and wind resistance.
  • Efficient Construction: Quickly built with a long service lifespan.
  • Cost-Effective: Lightweight design with high quality and low maintenance costs.
  • Eco-Friendly: Materials are 100% recyclable or degradable.
Steel Structure Advantages

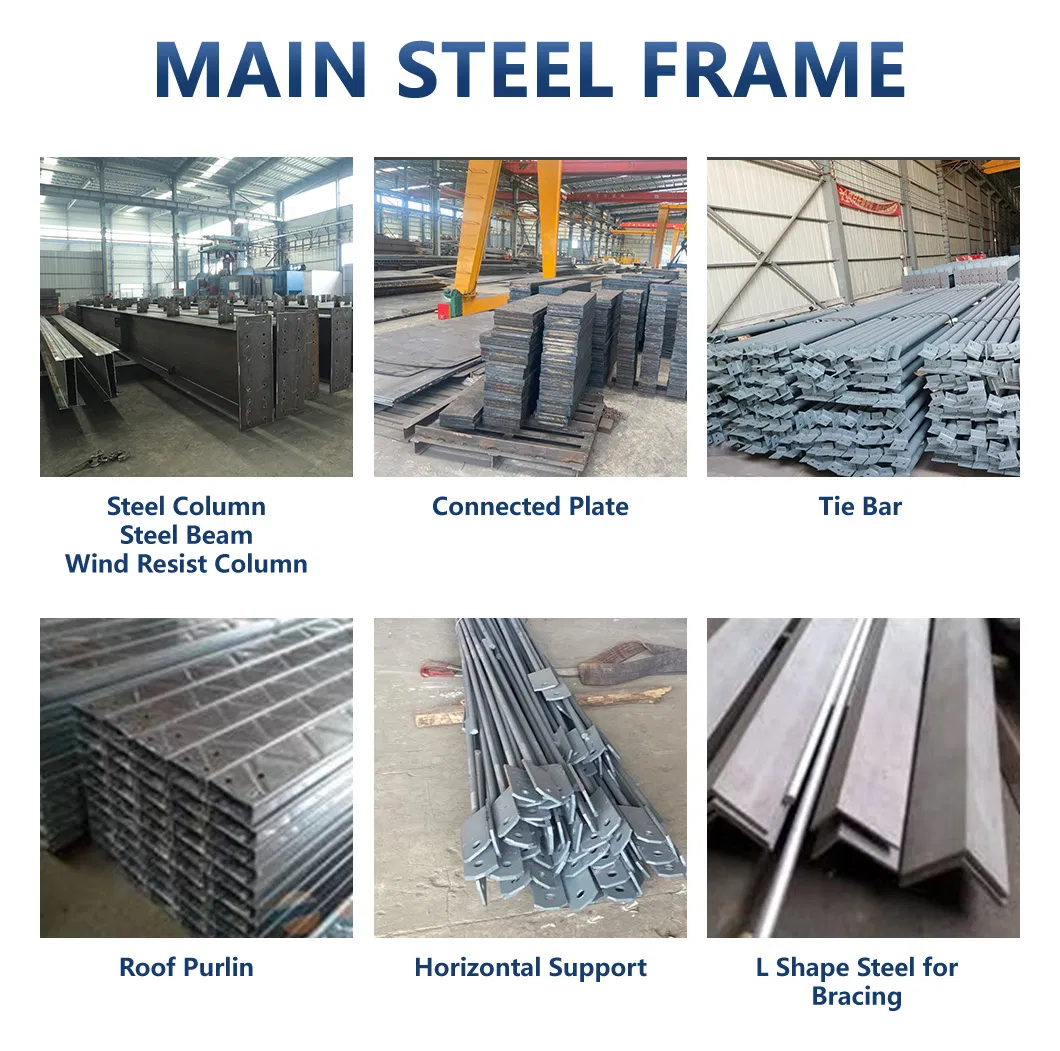

Product Components
Category Component Specification Material
Steel Frame Steel Column Hot rolled H-beam or welded H beam Q355B
Steel Beam Q355B
Purlins C160*50*20*2.0 or customized Q235B Galvanized
Factory Layout 1
Factory Layout 2
Factory Layout 3

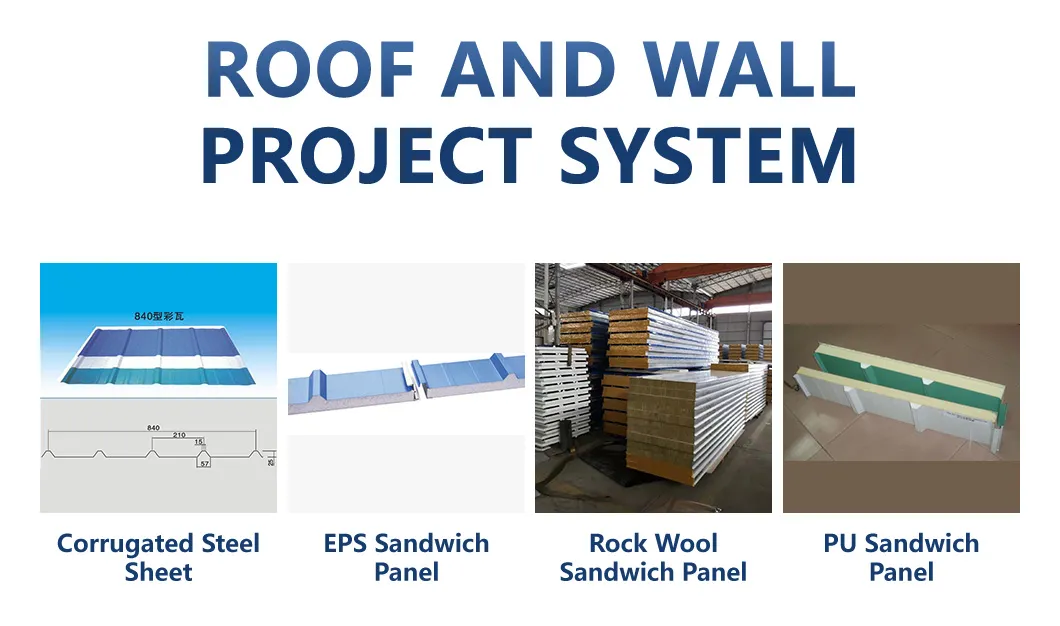

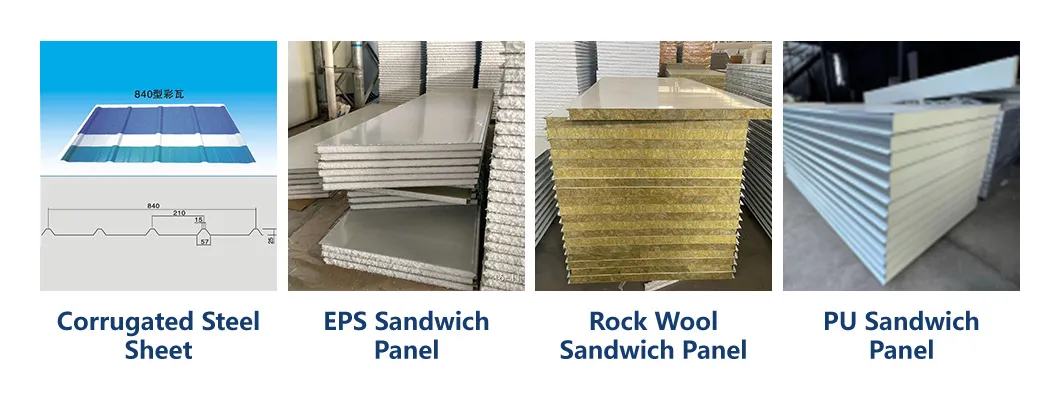

Cladding System Material Type Technical Details
Roof & Wall Corrugated Steel Sheet Thickness: 0.426mm, 0.476mm, etc.
Insulation Sandwich Panels EPS, Rock Wool, or PU (50mm/75mm/100mm)

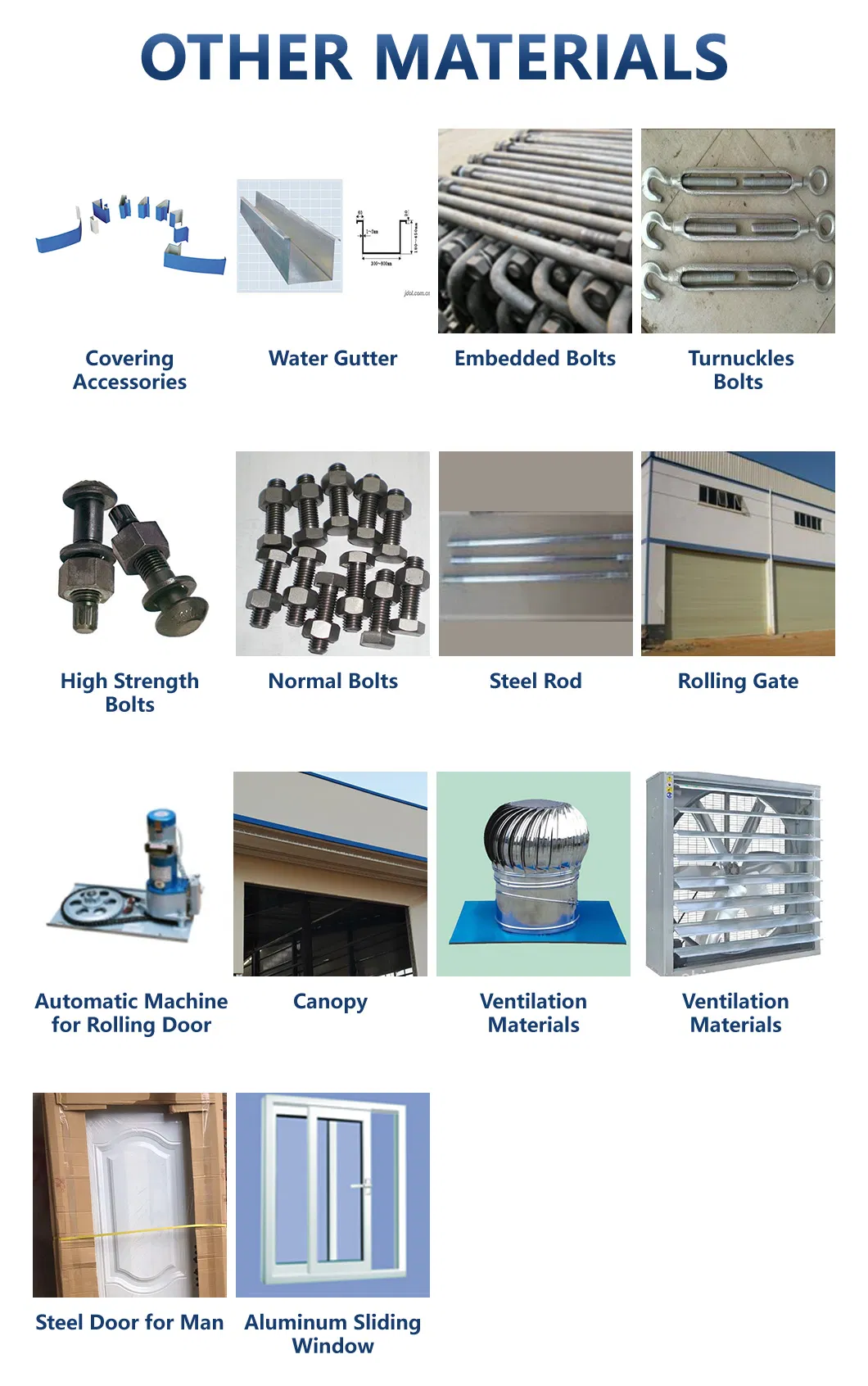

Wall Cladding Details
Our Professional Services

Professional Design and Engineering: Full solution for house design as per your requirements.

Quality Procurement: ISO standard manufacturing and professional material sourcing.

Installation Support: Detailed drawings, videos, and site supervision available upon request.

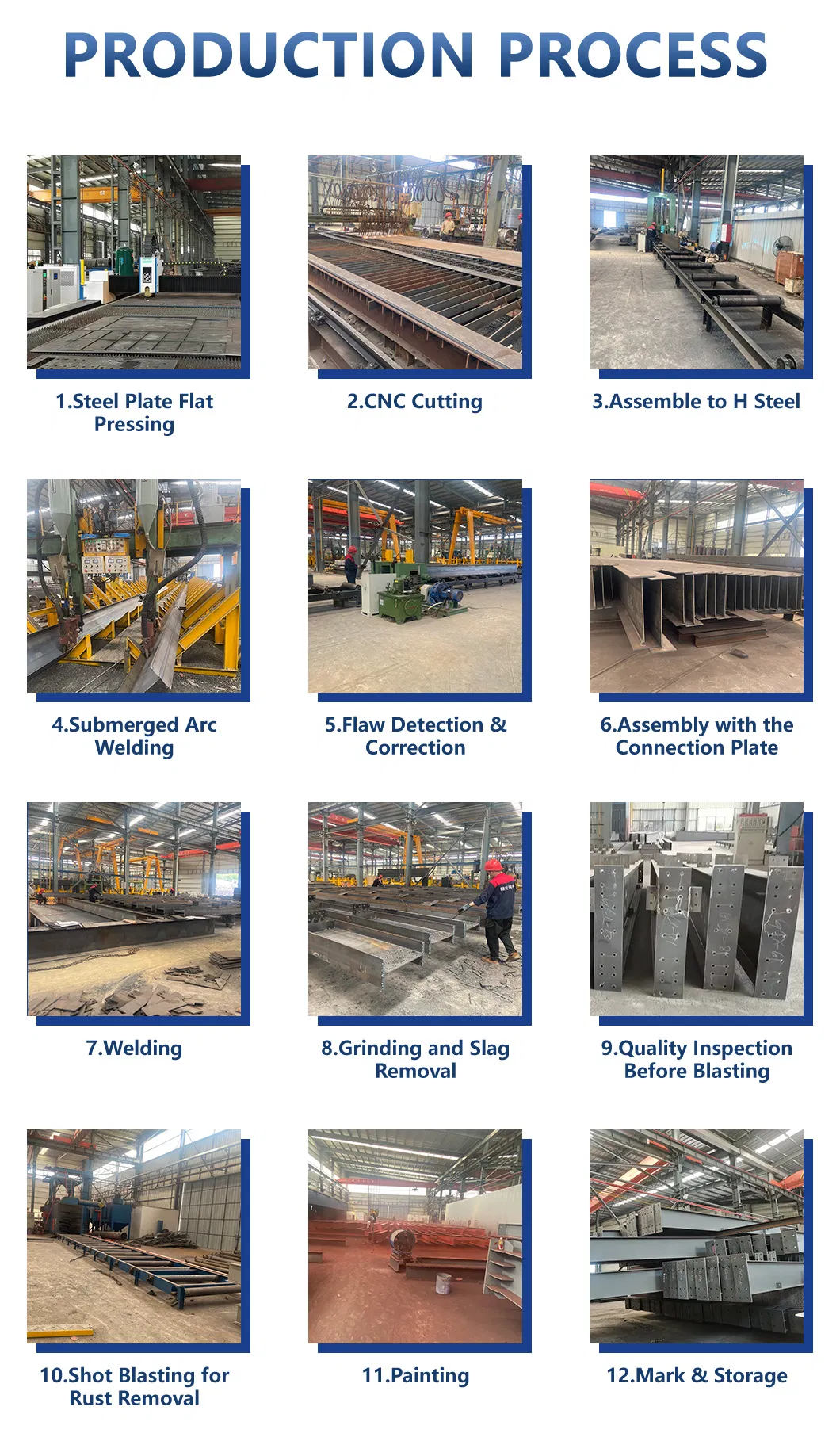

Processing 1
Processing 2
Customization Requirements

To design the most efficient steel structure for you, please consider the following:

  • Local Weather: Wind speed, snow loading, and seismic rating.
  • Land Size: Dimensions of the available building site.
  • Building Purpose: Workshop, warehouse, office, or labor accommodation.
  • Equipment Needs: Crane capacity, door and window specifications.

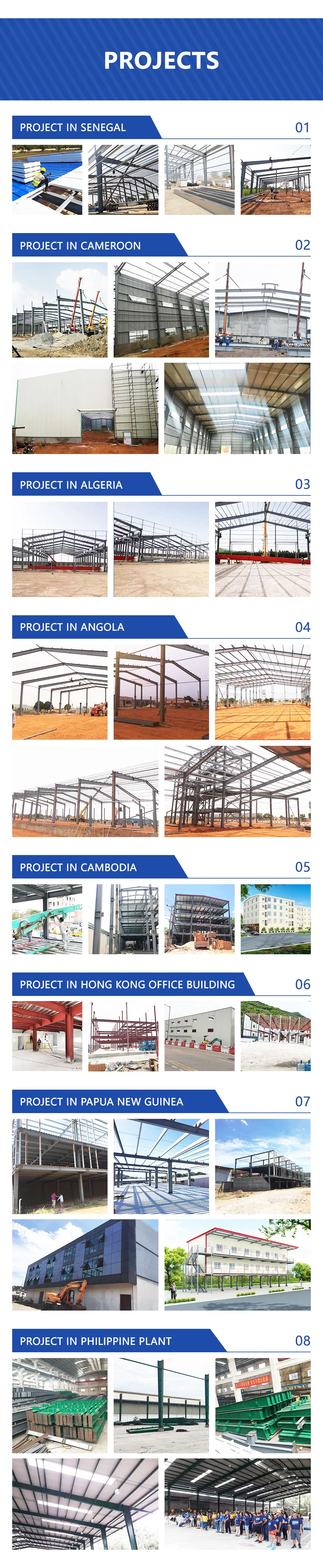

Project Display 1
Project Display 2
Project Display 3
Frequently Asked Questions
Q: Are you a manufacturing factory? A: Yes, we are a manufacturing factory. We welcome clients to visit us to see our professional quality control flow and fabrication technology.
Q: How do you ensure product quality? A: We check products at all stages: raw materials, in-process materials, and finished goods. Third-party testing like SGS and BV is also available.
Q: Can you provide customized design services? A: Yes, our design team can create full solution drawings including length, width, height, and load-bearing requirements based on your specific site.

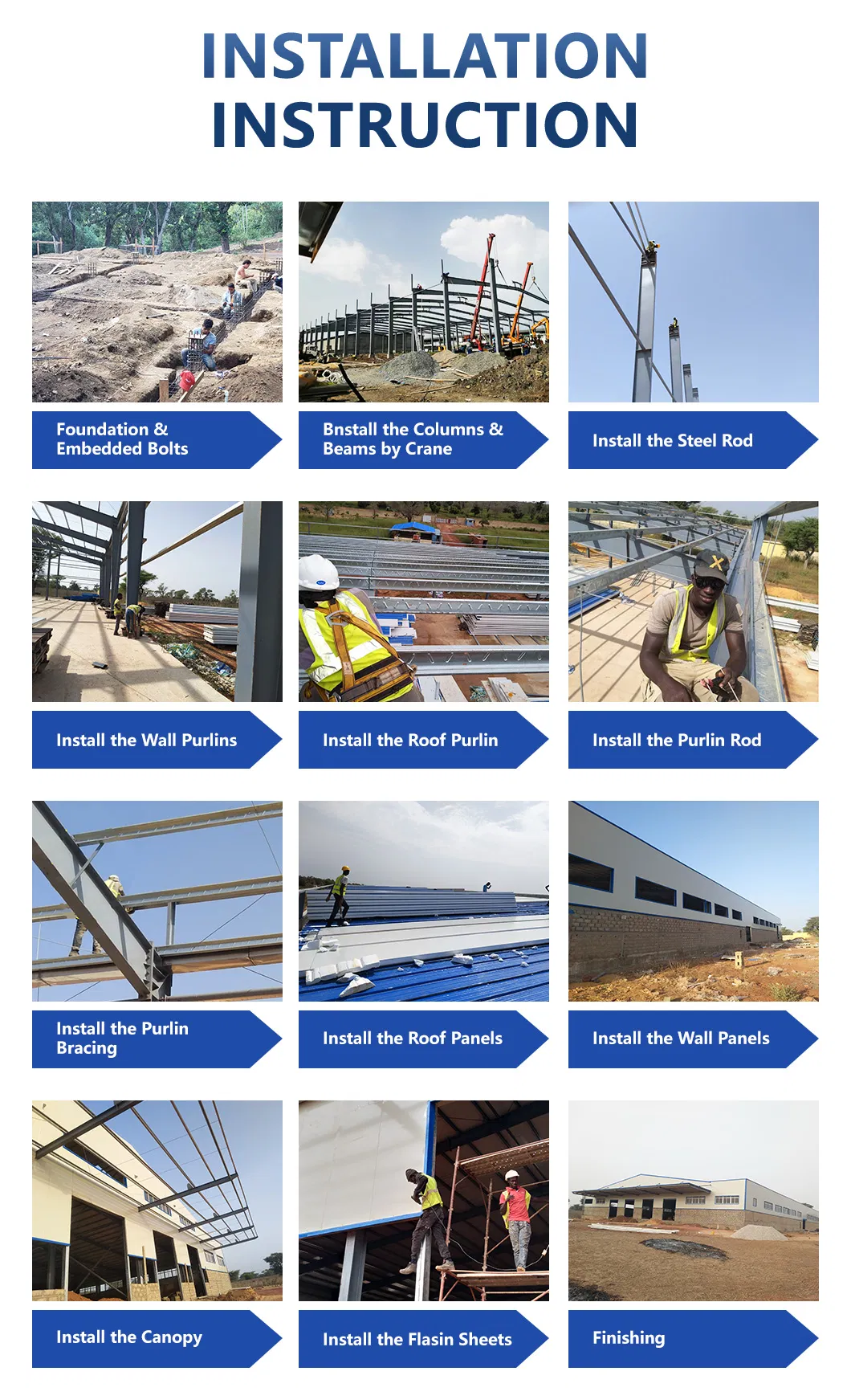

Q: Do you offer overseas installation guidance? A: Yes. We provide detailed installation drawings and videos. We can also provide on-site supervision and training if required.
Q: What information is needed for an accurate quote? A: Please provide the location, building size (L*W*H), local wind/snow load, and whether thermal insulation or cranes are needed.
Q: What materials are used for thermal insulation? A: We suggest EPS, fiberglass wool, Rockwool, or PU sandwich panels for insulation. For non-insulated buildings, single metal steel sheets are a cost-effective choice.
