Steel Structure Plant Layout with Qingdao Tailong
Steel Structure Plant Layout with Qingdao Tailong
Steel Structure Plant Layout with Qingdao Tailong
Steel Structure Plant Layout with Qingdao Tailong
Steel Structure Plant Layout with Qingdao Tailong
1 / 5
Steel Structure Plant Layout with Qingdao Tailong
Steel Structure Plant Layout with Qingdao Tailong
Steel Structure Plant Layout with Qingdao Tailong
Steel Structure Plant Layout with Qingdao Tailong
Steel Structure Plant Layout with Qingdao Tailong

Steel Structure Plant Layout with Qingdao Tailong

Customization: Available
Usage: Warehouse, Villa, Dormitories, Temporary Offices, Workshop
Materials: H Beam or I Beam with Q235 or Q345
Send Inquiry

Product Description

📋
Basic Info.
Model NO.
TL-TY
Color
Grey, White, Blue, Red, Brown or Customize
Size
as Your Requirements
Window
PVC Window or Aluminium Alloy Window
Door
Color Steel Silding Door or Electric Rolling Gate
Wall
EPS, Rock Wool, PU Sandwich Panel, Color Steel Sheet
Roof
EPS, Rock Wool, PU, Single Color Steel Corrugated Sheet
Surface
Painted or Hot-DIP Galvanized
Performance
Safety, Water-Proof, Sound Insulated, Heat-Preservation
Derusting
Ball Blast
Material
Steel Structure
Certification
ISO, CE
Customized
Customized
HS Code
9406000090
Production Capacity
20000 Square Meters Per Month
🏗️
Product Description
Size & Type MOQ is 500 square meter. Options include single slope, double slope, multi-slope; single span, double-span, Multi-span; single floor or double floors.
Base & Structure Foundation uses concrete and steel foundation bolts. Columns and beams are made from Q345 (S355JR) or Q235 (S235JR) steel with bolt connections.
Bracing & Purlins X, V, or other types of bracing made from angle and round pipe. Purlins available in C100~C320 and Z160~Z300 sizes.
Roof & Wall Panels Colorful corrugated steel sheets (0.326~0.6mm thick) or sandwich panels with EPS, Rock Wool, Glass Wool, or PU insulation (50mm~150mm thickness).
Accessories Includes semi-transparent skylight belts, ventilators, down pipes, and out gutters.

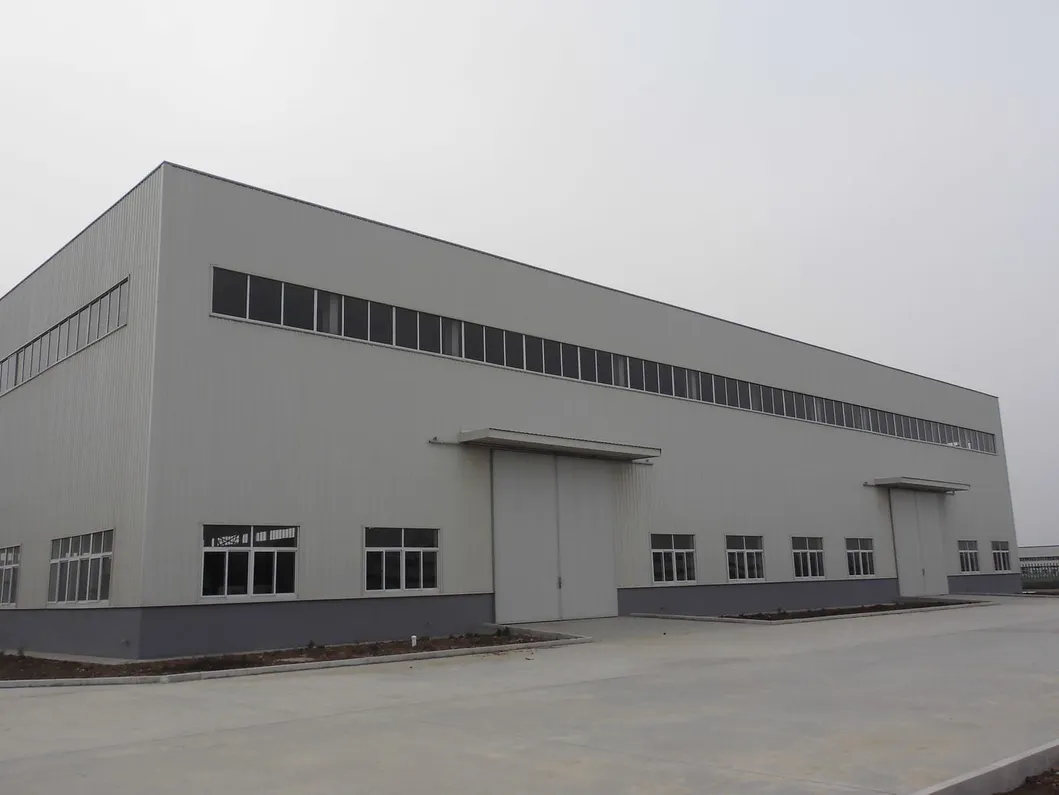

Steel Structure Layout
Column and Beam Q235, Q345 H section steel or square tube
Roof Sandwich panels (EPS, rock wool, fiber glass) or Corrugated Steel sheet
Wall Steel mesh and tarpaulin or sandwich panel or steel sheet
Brace Round bar
Purlin C or Z section steel
Accessories High strength bolts
📦 Packing Details: Main frame loaded in 40'OT; roof and wall panels loaded in 40'HQ.
🚚 Delivery Details: Within 30 days after receipt of the order.
❓
Frequently Asked Questions
What is the minimum order quantity for this steel structure?
The MOQ (Minimum Order Quantity) is 500 square meters.
What materials are used for the main structure?
The main columns and beams are made from high-quality Q345 (S355JR) or Q235 (S235JR) steel.
What types of insulation are available for panels?
We offer sandwich panels with EPS, Rock Wool, Glass Wool, and PU insulation, with thicknesses ranging from 50mm to 150mm.
Is the steel structure treated for corrosion resistance?
Yes, the surface can be either painted or Hot-DIP Galvanized, and it undergoes ball blast derusting for maximum durability.
How is the product transported and delivered?
The main frame is loaded into 40'OT containers, while panels are loaded into 40'HQ containers. Delivery usually takes place within 30 days of order confirmation.
Can the building design be customized?
Absolutely. All dimensions, colors, door/window types, and specific technical requirements can be customized to meet your needs.
