Product Description

i

Basic Information

Model NO.
HYD-HD01
Material
Steel (Q235)
Structure
Rack
Type
Drive-In Pallet Racking
Height
5-15m
Weight Capacity
200-1500kg
Pallet Size
1*1.2 or Customized
Full Load Speed
45m/Min
Origin
China
Production Capacity
2000 Units/ Year
D

Product Description

The Radio Shuttle Pallet Rack System is a semi-automated storage solution designed for high-density warehousing. It works in conjunction with forklift trucks to manage goods with low variety but high volumes per SKU. This system is ideal for manufacturing sectors, particularly fast-moving consumer goods (FMCG), food, beverage, and cold chain industries.

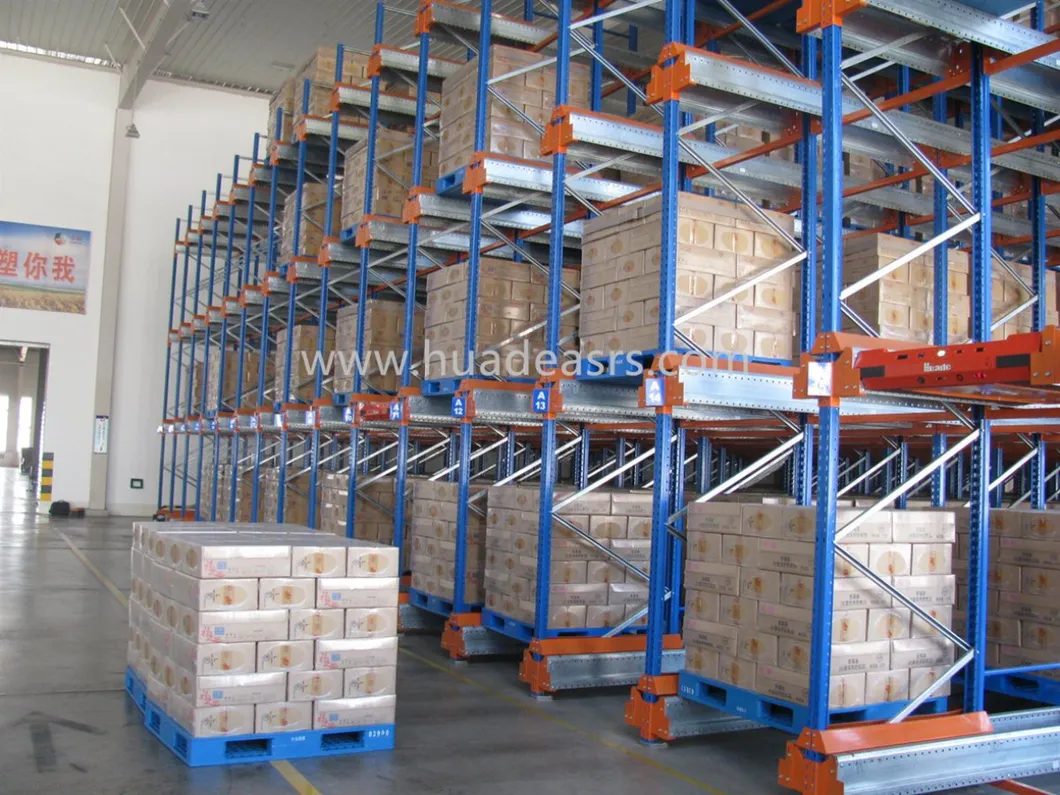

Radio Shuttle System Operation
Key Performance Indicators:
  • Space Efficiency: Up to 80% space utilization.
  • Speed: Load and unload 60% faster than traditional drive-in systems.
  • Configuration: Lane lengths can reach 50m or more.
F

System Features

Structural Stability

Upright frames connected by supported beams overcome the instability inherent in standard drive-in structures.

Efficiency

No forklift enters the storage lanes, significantly reducing travel time and risk of rack damage.

Versatility

Supports multiple SKUs within the same bay and is compatible with both LIFO and FIFO strategies.

S

Technical Specifications

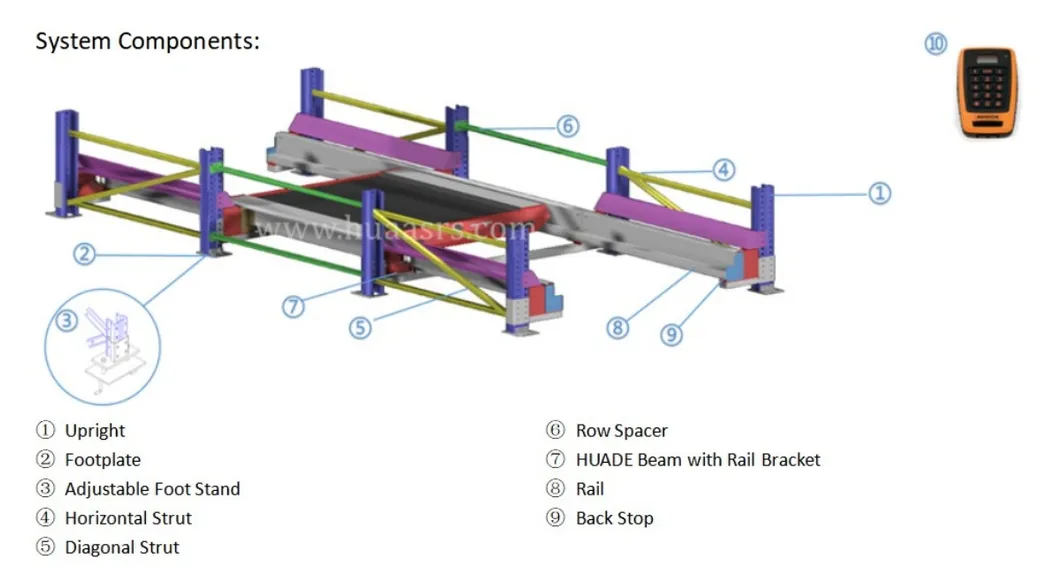

Radio Shuttle Components

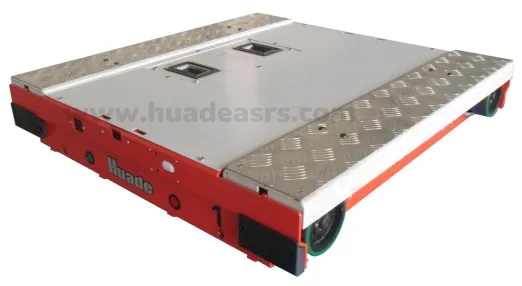

Shuttle Device
Parameter Details
Applicable Pallet Size1.0x1.2m, 1.1x1.2m, 1.2x1.2m
Loading Capacity1000kg / 1500kg
Empty / Full Speed50m/min / 40m/min
Motor TypeBrush servo motor 24VDC 650W
Hoisting Height40mm
Positioning MethodPhotoelectric sensor & Proximity switch
Battery TypeLithium iron phosphate (24V, 55A)
Charging / Usage Time4h Charging / 8h Usage
R

Remote Control & Comparison

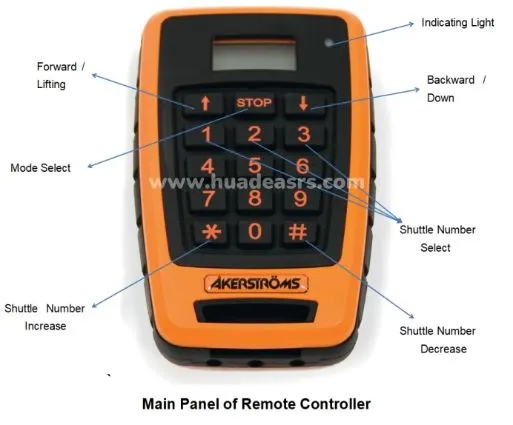

Remote Controller

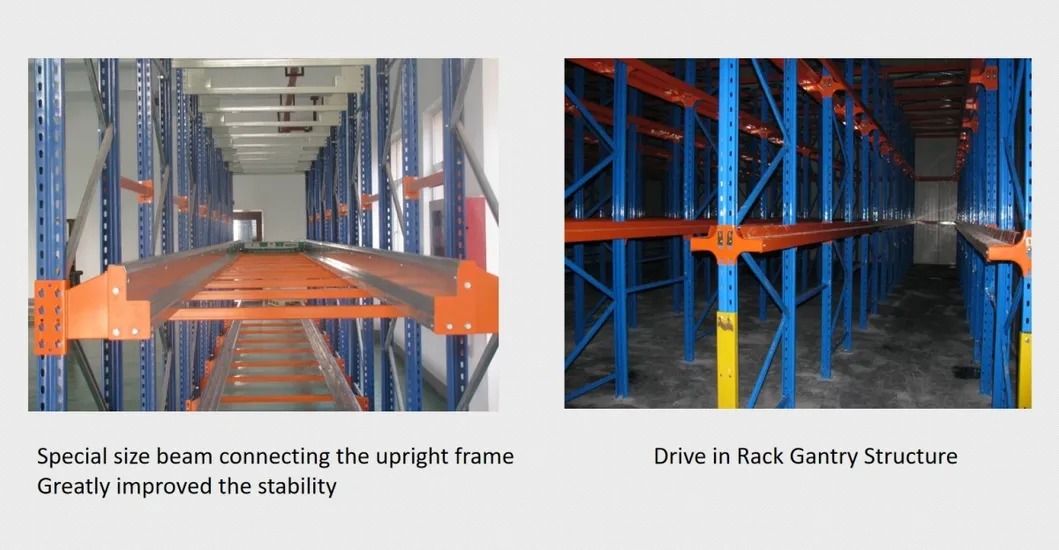

Comparison vs Drive-in
Remote Features: Multi-function, multi-language interface, and resistant to cold storage environments up to -30ºC.
A

System Advantages

Cost Savings
Optimal use of space reduces footprint and energy consumption in cold storage.
Safety
Metal structures remain damage-free as forklifts stay in the aisles.
Productivity
Shuttles execute orders rapidly, increasing the number of cycles per hour.
Easy Operation
Intuitive control tablet interface for all system functions.
G

Project Gallery

Installation
Warehouse View 1
Warehouse View 2
Warehouse View 3

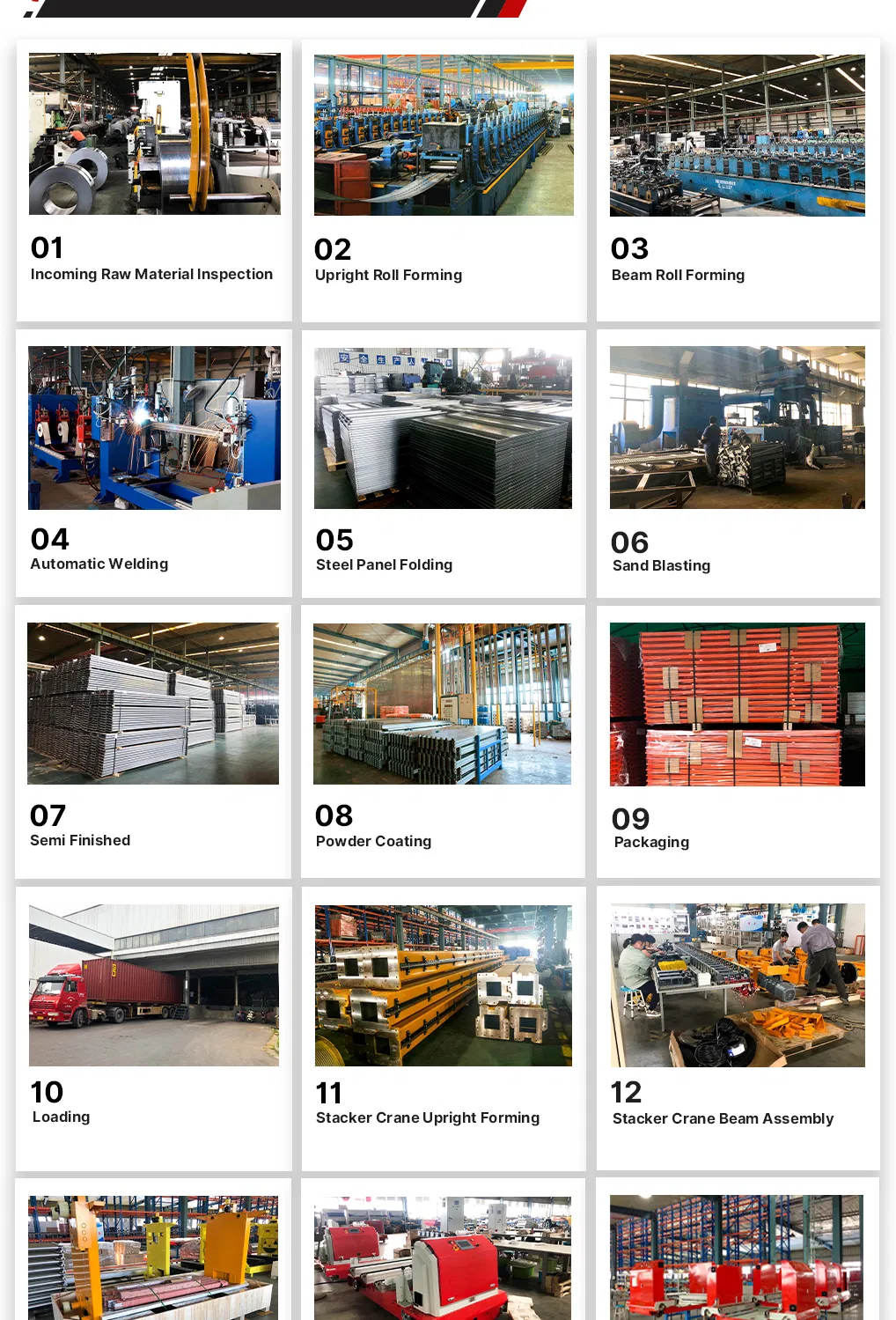

Warehouse View 4
Warehouse View 5
Warehouse View 6
Warehouse View 7
Warehouse View 8
?

Frequently Asked Questions

What are the main advantages of the Pallet Shuttle system?
The system provides significant time and space savings. It increases storage capacity by allowing deeper channels (over 60m) and boosts productivity by keeping forklifts out of the racking lanes, reducing loading/unloading times.
Is the system compatible with FIFO and LIFO?
Yes, the radio shuttle system is highly flexible and can be configured to operate according to either Last-In-First-Out (LIFO) or First-In-First-Out (FIFO) inventory management strategies.
What is the battery life and charging time for the shuttle?
The shuttle uses a lithium iron phosphate power battery. It offers an effective working time of approximately 8 hours on a full charge, with a required charging time of about 4 hours.
Can this system be used in cold storage environments?
Yes, it is highly recommended for cold chain industries. The remote control and shuttle components are designed to remain resistant and functional in temperatures as low as -30ºC.
How does the shuttle improve warehouse safety?
Because forklifts do not need to drive into the racking structure, the risk of accidental collisions with the metal frames is minimized, ensuring both structural integrity and operator safety.
What industries benefit most from this semi-automated system?
It is ideal for industries with high-volume, low-variety SKUs, such as Fast Moving Consumer Goods (FMCG), food and beverage distribution, and industrial parts warehousing.
